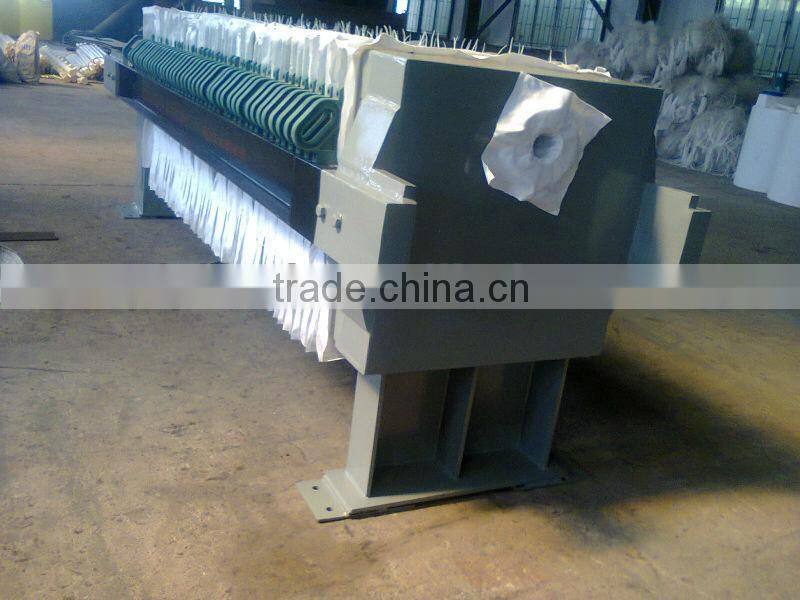

Metallurgy Chamber Filter Press

Because of structure is different, the diatomite Filter machine include Vane-type Diatomite filter machine, Plate and Frame Diatomite filter,Column type Diatomite filter machine. The filter use of diatomite and the cardboard as a filter media, the filter machine can make an filtration in beer, yellow wine, beverage, syrup, pharmaceutical and chemical industries. Adopting of the diatomite and plate to filter, the turbidness degree come out from this machine will lower than 0.5EBC, and also easy to operate. Stable operation, reliable quality, effective filtering and excellent result. High production efficiency, low energy consumption and litter loss of beer.
Diatomite filter machine work processes includingPreparation of CO2 pressure→ Fill water→ Exhaust→ Pre-coated diatomite 1-3.5mm thick → Pre-coated diatomite 400-500g/m2→ Pump wine diatomite mixture 80-300g/100L→ Circulate→ Filter produce→ Maintain the pressure in 0.02-0.04MPa/h→ Finish→ Prepare beer→ Discharge diatomite→ Cleanout→ Renew diatomite
Features: Sealed cover, perpendicular filter Vane, compact structure, few movable parts, convenient to maintenance. Easy to operate, disassenmbling is unnecessary when cleaning and discharging, low labor intensity. Superior quality of corrosionproof, long-life for use. Stable operation, reliable quality, effective filtering and excellent result. Hign production efficiency, low energy consumtion and little loss og beer.

Features:

Filter plates are made of strengthened polypropylene adding TPE through mold pressing, good in sealing and corrosion resistance, non-poisonous and no smell;

Mechanical pressing mode is adopted with automatic control and automatic pressure maintaining by using current relays;
Simple in operation, convenient in maintenance, and safe in operation with multiple safety devices.

  Application: Solid-liquid separation in alcohol, chemical, metallurgy, pharmaceutical, light industry, coal mining, foodstuff, textile, environmental protection, energy source and other industries.
