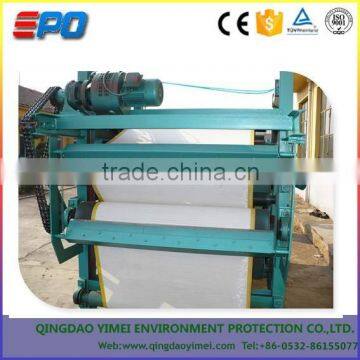

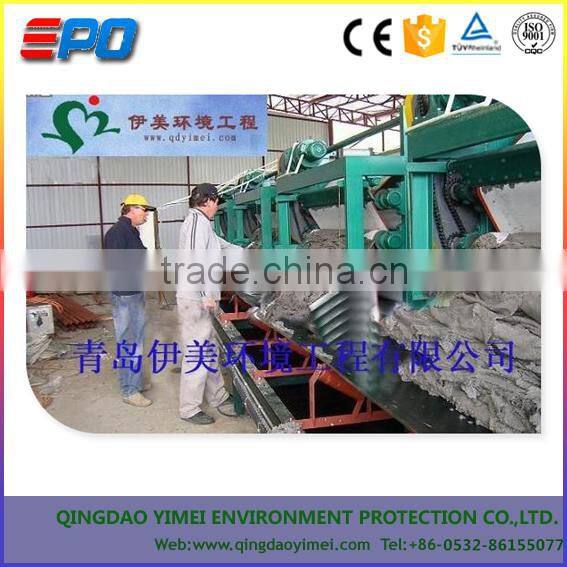

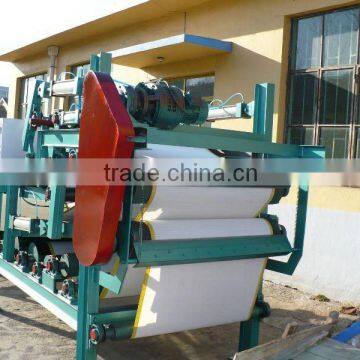

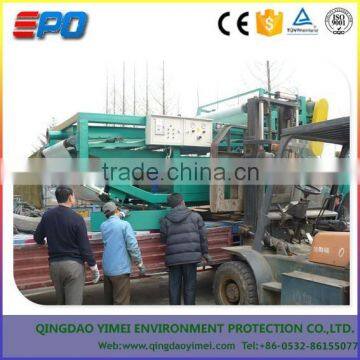

Newest Belt Type Filter Press/solid-liquid Separation Equipment

Properties and USES
YIMEI belt type filter press is my company in the digestion and absorption of advanced foreign technology developed by the basis of new high-efficiency sludge treatment equipment, it has high efficiency, low energy consumption, dehydration, simple structure, easy maintenance, low noise, smooth operation, safe and reliable, continuous automatic production, etc. Is now widely used in petroleum, chemical, coal, metallurgy, building materials, textile, food and water environmental protection engineering solid-liquid separation.

Belt filter is a process of concentrated (moisture content 95-98%) material further into the effective filter cake dehydration with continuous automatic production equipment, production cost is low, equipment installation, and can change the characteristics of different mesh filters, continuous stepless speed regulation, to adapt to different kinds of material solid-liquid separation. Whole structure is reasonable, prevent water splashed outside, high accuracy, roll system installation fewer adjust deviation, extended the filters, bearings, and pneumatic components life, main transmission adopts motor stepless speed regulation, increases the speed range, smooth operation, rinse water front increased cleaning brush, improved filters rinse rinse water, reduce the effect of sludge dewatering rate, increase.

Main technology parameter:

2.1 Belt type filter press

2.1.1 filter press reducer model number: SA70 DT90S NA15  B51 d60(frequency control of motor speed)

2.1.2 reducer`s power: 1.5KW

2.1.3 treatment capacity: 3-10m³/h

2.1.4 belt speed of Presses filter machine: 5-12m/min

2.1.5 effective width of  filter belt: 1000mm

2.1.6 speed regulating style: stepless speed regulating

2.2 Belt type filter press

2.2.1 effective width of belt: 1000mm

2.2.2 filter line`s range of speed: 1.5-6.0m/min

2.2.3 speed regulation style: stepless speed regulating

2.2.4 Main transmission motor power:  1.5KW

2.2.5 treatment capacity:  10-13m³/h

2.2.6 filter cake moisture content: ≤75%

2.3 Flocculation pipeline mixer:   DN125

2.4 air compressor

2.4.1 type: V-0.36/7

2.4.2 motor power: 2.2KW

2.4.3 gasification capacity: 0.36 m³/min

2.4.4 pressure:  0.7MPa

2.5 wash-water pump

2.5.1 wash-water pump type: IS65-40-200

2.5.2 quantity of flow:  15m³/h

2.5.3 electrical machine power:  0.75KW

2.5.4 head of delivery:  50m

2.6 Dosing system

2.6.1 dosing pump

2.6.1.1 Dosing screw pump:   G25-1

2.6.1.2 quantity of flow: 1.18m³/h

2.6.1.3 pressure: 0.3 Mpa

2.6.1.4 motor power: 0.25KW

2.6.2 Flocculant automatic preparation device

2.6.2.1 blender type:  ZJB6.1

2.6.2.2 blender power:  1.1KWX2

2.6.2.3  Blades rotating speed: 130r/min

2.6.2.4 Helical conveyer motor power:  0.18KW

2.6.2.5 Motor total power: 0.75KW

2.6.2.6 ability of suppling medicine:  1 m³/h

2.6.2.7  Flocculant use concentration:0.1%

2.7 sludger:G70-1

2.7.1 Transmitted power:  1.5KW

2.7.2 delivery value: 5m³/h
