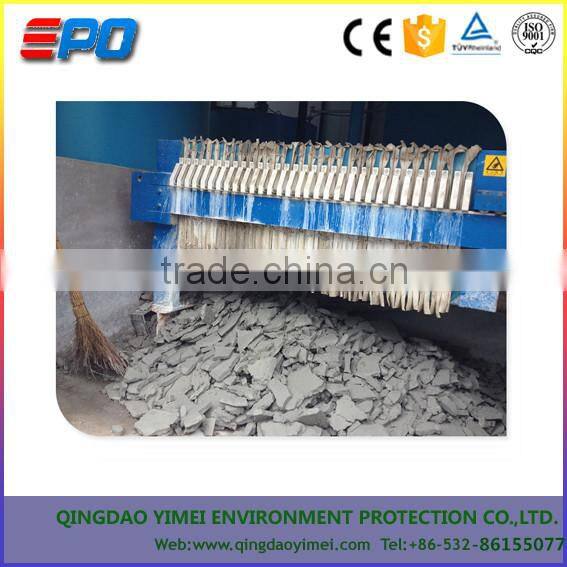

Help CenterIndustrial Wastewater Treatment Plate Fram Filter Press
Related Products
-
Livestock Farm Plant Belt Type Sludge Press FilterUS$ 9,800 - 24,000MOQ: 1 Set -
Automatic Sludge Belt Press Filter EquipmentUS$ 9,900 - 30,000MOQ: 1 Set
-
Industrial Filter Press ,plate and Frame Filter Press MachineUS$ 5,500 - 30,000MOQ: 1 Set
-
Better Plate Frame Sludge Filter Press MachineUS$ 1,300 - 15,000MOQ: 1 Set
-
Automate Belt Filter Press Dewatering MachineUS$ 7,000 - 30,000MOQ: 1 Set
Introduction:
The role of Plate frame type filter press is make the Scattered cloth slurry system of sludge special design form uniform wet board element in nets face, and multilayer wet combine, forming wet plate. the structure mainly consist of slurry uniform distribution machine,combine exposure paper system,forming dewatering system, blanket cleaning system structure etc, the slurry uniform distribution machine is developed by our company, specialized used in disperse slurry. due to sludge components is very complex, which contain fiber,many paddings and greater particles. as it need add Polymerization alumina and Polyacrylamide in water treatment process, make it has strong hydrophobicity, forming clustering conglobation, the general cloth slurry machine is difficult to make it dispersion, our cloth slurry machine solve this problem thoroughly, with high extensive adaptability.
The series press filter machine produced by our company is a kind of intermittent solid-liquid separation equipment, which is filter board, filter frame (plate frame type) or filter board (box) constitutes a filter chamber, under the action of the delivery pump, send the feed liquid into each filter chamber, via filter medium, make the solid and liquid separation. Which Widely used in chemical industry,dyestuff, oil ,ceramic, pharmaceutical, sugaring, food, starch , paint ,metallurgy and various industry of sewage treatment, etc.its specifications contain 200, 320, 450, 63, 800, 1000, 1250, 1,500 type, filtering area by 0.5 m2 ~ 500m2, filter board structure have plate frame type, van, diaphragm squeezing type; Heat- resisting temperature 0 ~ 120 °C, the filtrate outflow means has bright flow, undercurrent, washes, can not wash; Compaction methods: manual ,mechanical, hydraulic , automatic pressurize. Filter pressure from 0.2 ~ 1.6 Mpa, the plate and frame material is cast iron,Intensified Polypropylene,Glass fiber high temperature resistant polypropylene,stainless steel etc for choice.
[Q]How to buy your idea products?
[A]You can provide us your water sources, water quality, flow rate and ground area (contact us for more details).
[Q]What is your payment terms?
[A]TT and L/C are acceptable and TT will be more appreciated.30% deposit in advance and balance before loading.
[Q]What is the delivery time?
[A] It depends on order quantities. Generally speaking, the delivery time will be within 4 to 6 weeks.
[Q]How to pack the products?
[A]We use standard package. If you have special package requirements, we will pack as required, but the fees will be paid by customers.
[Q]How to keep your equipments from corrosion?
[A]We use the world-famous paint, like SigmaCoatings,PainBow,etc. What's more, we paint strictly according to the standard process.
[Q]How do you manufacture your equipment ?
[A]Our machining technology includes laser/plasma cutting, automatic welding,CNC cutting and bending.
[Q] How to install after the equipments arriving destination?
[A] We will provide detailed illustrations to you. If it is necessary, we will send technicians to help you.
