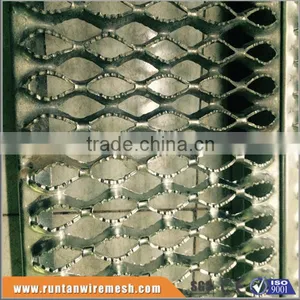

High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance)

High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-1
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-2
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-3
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-4
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-5
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) thumbnail-6
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-1
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-2
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-3
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-4
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-5
High Load Capacity Anti-slip Perforated Plank Grating (Tread Assurance) photo-6
US$ 25.15 - 33.47 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Brand Name:
RT
Model Number:
RT1923
Contact Supplier Request Quote Chat Now
Anping Runtan Metal Wire Mesh Products Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Xin'Gang port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Hebei, China
Brand Name RT
Model Number RT1923
Material Other, Galvanized Sheet, galvanized steel, aluminum alloy and stainless steel

High load capacity Anti-slip perforated plank grating (Tread Assurance)



Product Description

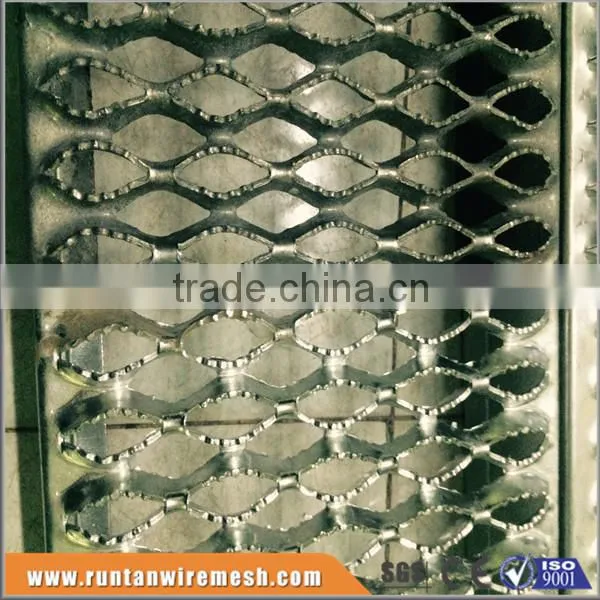

 Perforated plank grating are a common application of diamond

safety grating. Similar to the diamond safety walkways and diamond safety grating plank,

the diamond safety grating stair treads have serrated diamond holes to supply outstanding

anti-slip resistance in every directions.

The grip strut safety grating have two types: one is standard diamond safety

grating stair treads and the other type is diamond safety grating stair treads

with abrasive nosing. The abrasive nosing can supply further anti-slip resistance

performance for the stair treads.It can be used in the heavy duty applications.



High load capacity Anti-slip perforated plank grating (Tread Assurance)



1. Specifications of Perforated Plank Grating

  • Material: galvanized steel, aluminum alloy and stainless steel.
  • Width: 4-3/4”, 7”, 9-1/2”, 11-3/4”, 18-3/4” and 24”.
  • Channel height: 1-1/2”, 2”, 2-1/2” and 3”.
  • Plank thickness: 14G, 12G and 10G. Other thickness can be customized.
  • Clear span: 2’, 2’6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”, and 7’.

High load capacity Anti-slip perforated plank grating (Tread Assurance)



 2. Data sheet of  Perforated Plank Grating


1) Specification of standard perforated plank grating



Item Material Structure Plank thickness Width Channel height Clear span
DSGSTS-01 Steel 2-diamond 14G 4-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-02 Steel 2-diamond 14G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-03 Steel 2-diamond 12G 4-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-04 Steel 2-diamond 12G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-05 Steel 3-diamond 14G 7" 1-1/2" 2', 2'-6", 3'
DSGSTS-06 Steel 3-diamond 14G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-07 Steel 3-diamond 12G 7" 1-1/2" 2', 2'-6", 3'
DSGSTS-08 Steel 3-diamond 12G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-09 Steel 4-diamond 14G 9-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTS-10 Steel 4-diamond 14G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-11 Steel 4-diamond 12G 9-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTS-12 Steel 4-diamond 12G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-13 Steel 5-diamond 14G 11-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-14 Steel 5-diamond 14G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-15 Steel 5-diamond 12G 11-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-16 Steel 5-diamond 12G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-17 Aluminum alloy 2-diamond 14G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-18 Aluminum alloy 2-diamond 12G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-19 Aluminum alloy 3-diamond 14G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-20 Aluminum alloy 3-diamond 12G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-21 Aluminum alloy 4-diamond 14G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-22 Aluminum alloy 4-diamond 12G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-23 Aluminum alloy 5-diamond 14G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-24 Aluminum alloy 5-diamond 12G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-25 Stainless steel 304 4-diamond 16G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-26 Stainless steel 304 5-diamond 16G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-27 Stainless steel 316L 4-diamond 16G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-28 Stainless steel 316L 5-diamond 16G 11-3/4" 2" 2', 2'-6", 3', 4'



2) Specification of diamond perforated plank grating with abrasive nosing



Item Material Structure Plank thickness Width Channel height Clear span
DSGSTN-01 Steel 2-diamond 14G 5-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-02 Steel 2-diamond 14G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-03 Steel 2-diamond 12G 5-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-04 Steel 2-diamond 12G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-05 Steel 3-diamond 14G 8-1/8" 1-1/2" 2', 2'-6", 3'
DSGSTN-06 Steel 3-diamond 14G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-07 Steel 3-diamond 12G 8-1/8" 1-1/2" 2', 2'-6", 3'
DSGSTN-08 Steel 3-diamond 12G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-09 Steel 4-diamond 14G 10-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTN-10 Steel 4-diamond 14G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-11 Steel 4-diamond 12G 10-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTN-12 Steel 4-diamond 12G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-13 Steel 5-diamond 14G 12-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-14 Steel 5-diamond 14G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-15 Steel 5-diamond 12G 12-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-16 Steel 5-diamond 12G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-17 Aluminum alloy 2-diamond 14G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-18 Aluminum alloy 2-diamond 12G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-19 Aluminum alloy 3-diamond 14G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-20 Aluminum alloy 3-diamond 12G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-21 Aluminum alloy 4-diamond 14G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-22 Aluminum alloy 4-diamond 12G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-23 Aluminum alloy 5-diamond 14G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-24 Aluminum alloy 5-diamond 12G 12-3/4" 2" 2', 2'-6", 3', 4'





 3. Features of  Perforated Plank Grating

  • Corrosion resistance, Rust resistance.
  • Anti-slip resistance, Good air circulation.
  • Good drainage performance, Easy to install and uninstall.
  • High strength-to-weight performance,Durable and long lifespan.

High load capacity Anti-slip perforated plank grating (Tread Assurance)



4. Applications of  Perforated Plank Grating

Diamond grip strut safety grating is widely used for work platforms. Catwalks, transportation

servicing areas and vehicle steps.

High load capacity Anti-slip perforated plank grating (Tread Assurance)

Packaging & Shipping

5. Packing of Perforated Plank Grating



In High quality steel pallet with strong steel belt ;

High load capacity Anti-slip perforated plank grating (Tread Assurance)



High load capacity Anti-slip perforated plank grating (Tread Assurance)



6. Shipping of Perforated Plank Grating



15-20 days for 1x40'HC after receiving the deposit ;



 7. Certificate: ISO9001,CE,SGS

High load capacity Anti-slip perforated plank grating (Tread Assurance)

8. Testing of Perforated Plank Grating

High load capacity Anti-slip perforated plank grating (Tread Assurance)

Company Information

9. Company Info

1)  Factory:  Anping Runtan Metal Wire mesh products Factory

2)  Scale: 13340m2 with 4 wire mesh fence production line and 3 grating production line

3)  Employees:  205 people
4)  Export Market: Australia, New Zealand, North America, Mid-East and Euro
5) Main Products:Wire Mesh Fence,Chian Link Fence,Steel Grates, welded Wire

Mesh,Perforated Mesh,

6) Quality Control: ISO9001, BV,CE,SGS Testing

7) International Exhibition: Canton Fair in 2010,2012,2014 three times;



High load capacity Anti-slip perforated plank grating (Tread Assurance)
