Factory standard anti-slip Diamond Safety Grating Stair Treads  (Trade Assurance)



Product Description

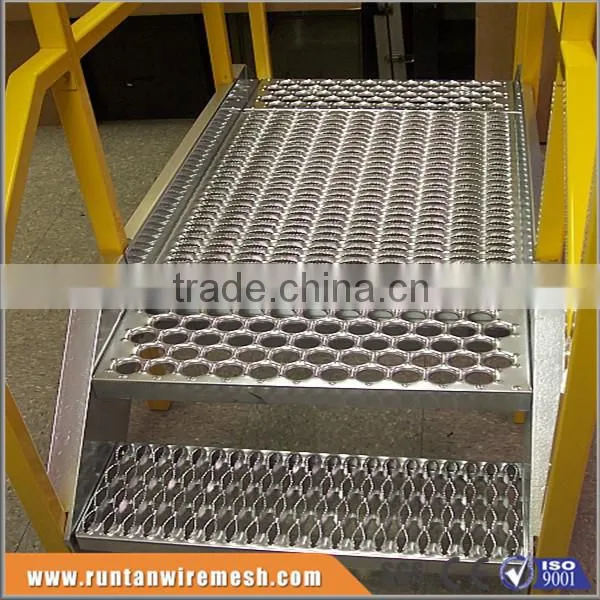

 Diamond safety grating stair treads are a common application of diamond

safety grating. Similar to the diamond safety walkways and diamond safety grating plank,

the diamond safety grating stair treads have serrated diamond holes to supply outstanding

anti-slip resistance in every directions.

The diamond safety grating stair treads have two types: one is standard diamond safety

grating stair treads and the other type is diamond safety grating stair treads

with abrasive nosing. The abrasive nosing can supply further anti-slip resistance

performance for the stair treads.It can be used in the heavy duty applications.



Diamond safety grating stair treads (Tread Assurance)



1. Specifications of Diamond Safety Grating Walkway

  • Material: galvanized steel, aluminum alloy and stainless steel.
  • Width: 4-3/4”, 7”, 9-1/2”, 11-3/4”, 18-3/4” and 24”.
  • Channel height: 1-1/2”, 2”, 2-1/2” and 3”.
  • Plank thickness: 14G, 12G and 10G. Other thickness can be customized.
  • Clear span: 2’, 2’6”, 3’, 3’6”, 4’, 4’6”, 5’, 5’6”, 6’, 6’6”, and 7’.

Diamond safety grating stair treads (Tread Assurance)



 2. Data sheet of  Diamond Safety Grating Stair Treads


1) Specification of standard diamond safety grating stair treads



Item Material Structure Plank thickness Width Channel height Clear span
DSGSTS-01 Steel 2-diamond 14G 4-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-02 Steel 2-diamond 14G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-03 Steel 2-diamond 12G 4-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-04 Steel 2-diamond 12G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-05 Steel 3-diamond 14G 7" 1-1/2" 2', 2'-6", 3'
DSGSTS-06 Steel 3-diamond 14G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-07 Steel 3-diamond 12G 7" 1-1/2" 2', 2'-6", 3'
DSGSTS-08 Steel 3-diamond 12G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-09 Steel 4-diamond 14G 9-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTS-10 Steel 4-diamond 14G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-11 Steel 4-diamond 12G 9-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTS-12 Steel 4-diamond 12G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-13 Steel 5-diamond 14G 11-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-14 Steel 5-diamond 14G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-15 Steel 5-diamond 12G 11-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTS-16 Steel 5-diamond 12G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-17 Aluminum alloy 2-diamond 14G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-18 Aluminum alloy 2-diamond 12G 4-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-19 Aluminum alloy 3-diamond 14G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-20 Aluminum alloy 3-diamond 12G 7" 2" 2', 2'-6", 3', 4'
DSGSTS-21 Aluminum alloy 4-diamond 14G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-22 Aluminum alloy 4-diamond 12G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-23 Aluminum alloy 5-diamond 14G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-24 Aluminum alloy 5-diamond 12G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-25 Stainless steel 304 4-diamond 16G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-26 Stainless steel 304 5-diamond 16G 11-3/4" 2" 2', 2'-6", 3', 4'
DSGSTS-27 Stainless steel 316L 4-diamond 16G 9-1/2" 2" 2', 2'-6", 3', 4'
DSGSTS-28 Stainless steel 316L 5-diamond 16G 11-3/4" 2" 2', 2'-6", 3', 4'



2) Specification of diamond safety grating stair treads with abrasive nosing



Item Material Structure Plank thickness Width Channel height Clear span
DSGSTN-01 Steel 2-diamond 14G 5-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-02 Steel 2-diamond 14G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-03 Steel 2-diamond 12G 5-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-04 Steel 2-diamond 12G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-05 Steel 3-diamond 14G 8-1/8" 1-1/2" 2', 2'-6", 3'
DSGSTN-06 Steel 3-diamond 14G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-07 Steel 3-diamond 12G 8-1/8" 1-1/2" 2', 2'-6", 3'
DSGSTN-08 Steel 3-diamond 12G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-09 Steel 4-diamond 14G 10-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTN-10 Steel 4-diamond 14G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-11 Steel 4-diamond 12G 10-1/2" 1-1/2" 2', 2'-6", 3'
DSGSTN-12 Steel 4-diamond 12G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-13 Steel 5-diamond 14G 12-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-14 Steel 5-diamond 14G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-15 Steel 5-diamond 12G 12-3/4" 1-1/2" 2', 2'-6", 3'
DSGSTN-16 Steel 5-diamond 12G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-17 Aluminum alloy 2-diamond 14G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-18 Aluminum alloy 2-diamond 12G 5-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-19 Aluminum alloy 3-diamond 14G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-20 Aluminum alloy 3-diamond 12G 8-1/8" 2" 2', 2'-6", 3', 4'
DSGSTN-21 Aluminum alloy 4-diamond 14G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-22 Aluminum alloy 4-diamond 12G 10-1/2" 2" 2', 2'-6", 3', 4'
DSGSTN-23 Aluminum alloy 5-diamond 14G 12-3/4" 2" 2', 2'-6", 3', 4'
DSGSTN-24 Aluminum alloy 5-diamond 12G 12-3/4" 2" 2', 2'-6", 3', 4'





 3. Features of  Diamond Safety Grating Stair Treads

  • Corrosion resistance, Rust resistance.
  • Anti-slip resistance, Good air circulation.
  • Good drainage performance, Easy to install and uninstall.
  • High strength-to-weight performance,Durable and long lifespan.

Diamond safety grating stair treads (Tread Assurance)



4. Applications of Diamond Safety Stair Treads


Diamond safety grating Stair Treads is widely used for work platforms. Catwalks, transportation

servicing areas and vehicle steps.

Diamond safety grating stair treads (Tread Assurance)

Packaging & Shipping

5. Packing of Diamond Safety Stair Treads



In High quality steel pallet with strong steel belt ;

Diamond safety grating stair treads (Tread Assurance)



Diamond safety grating stair treads (Tread Assurance)



6. Shipping of Diamond Safety Stair Treads



15-20 days for 1x40'HC after receiving the deposit ;



 7. Certificate: ISO9001,CE,SGS

Diamond safety grating stair treads (Tread Assurance)

8. Testing of Diamond Safety Grating Stair Treads

Diamond safety grating stair treads (Tread Assurance)
