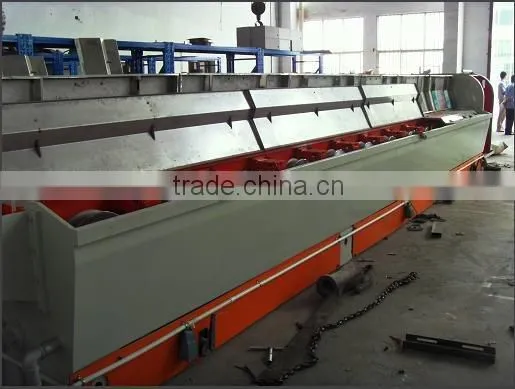

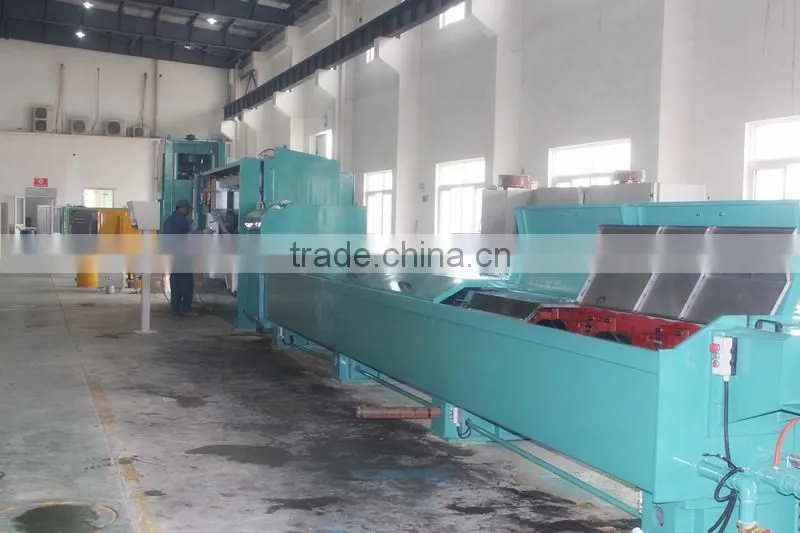

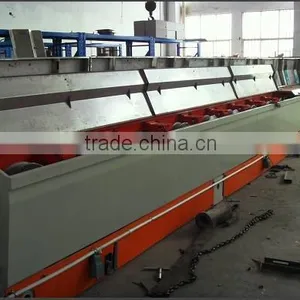

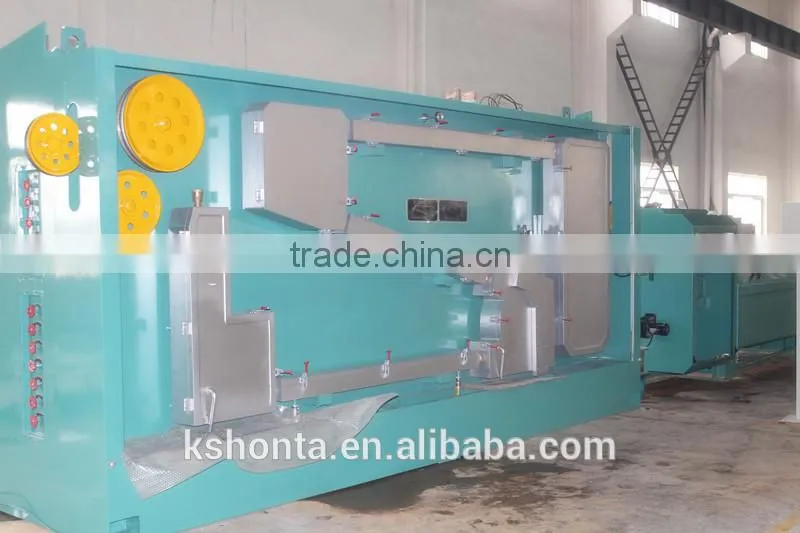

Help CenterFactory Price Aluminum Rod Breakdown Drawing Machine, RBD LINE
Related Products
MAIN SPECIFICATION DATA OF ALUMINUM ROD BREAKDOWN DRAWING MACHINE
Machine Model |
HT-450-13D |
Drawing Speed (rpm) |
1500 rpm/min |
Drawing Dies no./max |
13 |
Wire Inlet Dia.(mm) |
8 |
wire outlet dia.(mm) |
1.2-3.5 |
Fast Die Change System |
Set the outlet Dia. or selecting the die number. The computer calculates automatically. After setting the transmission coefficient, the machine drawing and rewinding automatically and synchronously |
Control System |
human-machine interface + PLC control All alarm and parameter can be controlled and displayed on the touch screen, digital control for motor are available for computer operation. |
Motor Control |
DC motor control |
Transmission Type |
by precision ground helical gears |
Slip Ratio of M/C |
1.278 |
Capstan Dia.(mm) |
φ 450 |
Take-up Type |
Double spooler, bobbin type φ 500-φ 630 mm/max |
Down Coiler DC 15KW and AC 15KW | |
Main Motor |
DC 280KW |
Capstan Motor |
DC 75KW |
Take-up Motor |
Double Take-up DC30KW X 2 |
Down Coiler DC 15KW or AC 15KW | |
Lubrication Type |
bath lubrication |
Lubrication for Bearing |
by oil |
Continuous Annealer |
DC5000A |
Annealing Voltage |
DC55V |
Power supply |
3 X380V 50HZ |
Machine Size |
28220mm×4500mm×4400mm |
If you have any question,pls feel free to contact us,we will do my best to help you!
