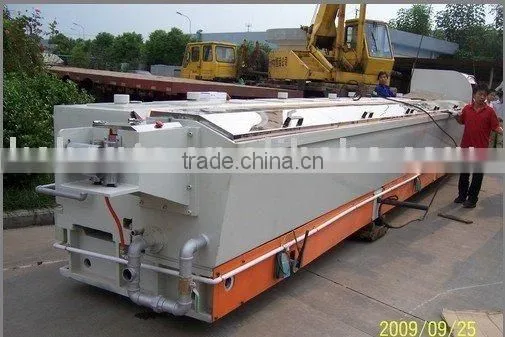

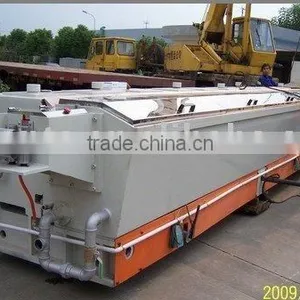

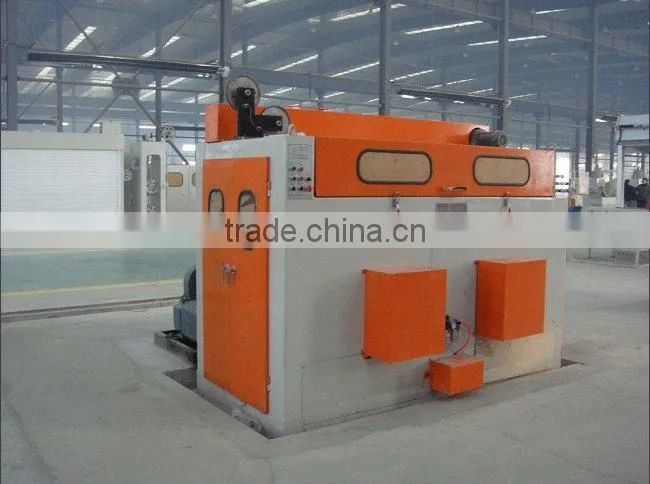

Copper Wire Drawing Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-450-13D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-450-13D
Usage
Drawing
Technical Specifications
1.Main Machine
1)Inlet Wire Diameter:Max 8.0mm
2)Outlet Wire Diameter:1.2-3.5mm
3)Max Linear Speed:25m/s
4)Max Drawing Pass:13
5)Fix Speed Capstan Dia.:450mm
6)Speed Ratio Between Capstans:1.238(1.241)
7)Max Size Of Dies:43mm x 35mm
8)Main Motor:278kw (DC)
9)Motor For Finish Capstan:75kw
1)Inlet Wire Diameter:Max 8.0mm
2)Outlet Wire Diameter:1.2-3.5mm
3)Max Linear Speed:25m/s
4)Max Drawing Pass:13
5)Fix Speed Capstan Dia.:450mm
6)Speed Ratio Between Capstans:1.238(1.241)
7)Max Size Of Dies:43mm x 35mm
8)Main Motor:278kw (DC)
9)Motor For Finish Capstan:75kw
2. Annealer
1)Max. Annealing current: 6000A
2)Max. Annealing Voltage: 60DCV
3) Cooling water pump power: 7.5 Kw
Dancer
Dancer
1)Workion Pressure:0.6-0.7mpa
2)Air Value:± 0.02mpa
Double Take-up
1)Max Take-Up Speed:1500m/min
2)Diamater Of Barrel:1.2-3.5mm
3)Take-Up Motor:15kw(DC)
4)Spooler Banister Capcity:Max 2000kg
5)Total Weight:7000kg
6)Machine Dimensions:3000 X 2000 X 4650
2)Air Value:± 0.02mpa
Double Take-up
1)Max Take-Up Speed:1500m/min
2)Diamater Of Barrel:1.2-3.5mm
3)Take-Up Motor:15kw(DC)
4)Spooler Banister Capcity:Max 2000kg
5)Total Weight:7000kg
6)Machine Dimensions:3000 X 2000 X 4650
