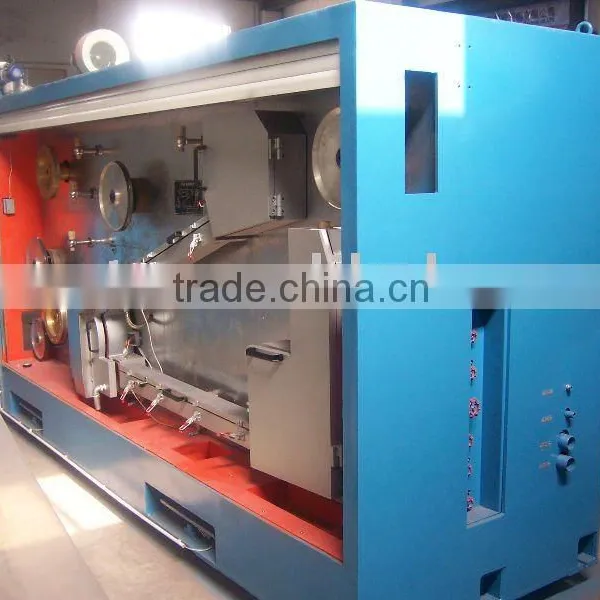

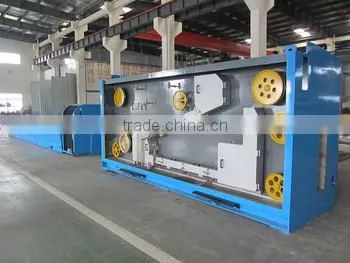

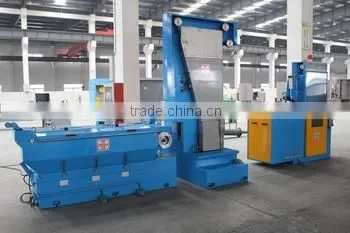

Help CenterCopper Wire Drawing Machine
Related Products
Machine Model |
HT-450-13D |
Drawing Speed (rpm) |
1500 rpm/min |
Drawing Dies no./max |
13 |
Wire Inlet Dia.(mm) |
8mm |
wire outlet dia.(mm) |
1.2-3.5 |
Fast Die Change System |
Set the outlet Dia. or selecting the die number. The computer calculates automatically. After setting the transmission coefficient, the machine drawing and rewinding automatically and synchronously |
Control System |
human-machine interface + PLC control All alarm and parameter can be controlled and displayed on the touch screen, digital control for motor are available for computer operation. |
Motor Control |
DC motor control |
Transmission Type |
by precision ground helical gears |
Slip Ratio of M/C |
1.278 |
Capstan Dia.(mm) |
φ 450 |
Take-up Type |
Double spooler, bobbin type φ 500-φ 630 mm/max |
Down Coiler DC 15KW and AC 15KW | |
Main Motor |
DC 280KW |
Capstan Motor |
DC 75KW |
Take-up Motor |
Double Take-up DC30KW X 2 |
Down Coiler DC 15KW or AC 15KW | |
Lubrication Type |
bath lubrication |
Lubrication for Bearing |
by oil |
Continuous Annealer |
DC 5000A |
Annealing Voltage |
DC 55V |
Power supply |
3 X380V 50HZ |
Machine Size |
28220mm×4500mm×4400mm |
1. Technical support, design machine according to customer's requirement.
2. Prepare detail proposals for customer's check.
3. Be guider for machine installation.
4. To send engineers to customer's plant to finish machine commissioning.
5. Help customers to remove troubles in future running.
Well packed on steel pallets in containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
|
|
|
|
| 16-wire drawing machine |

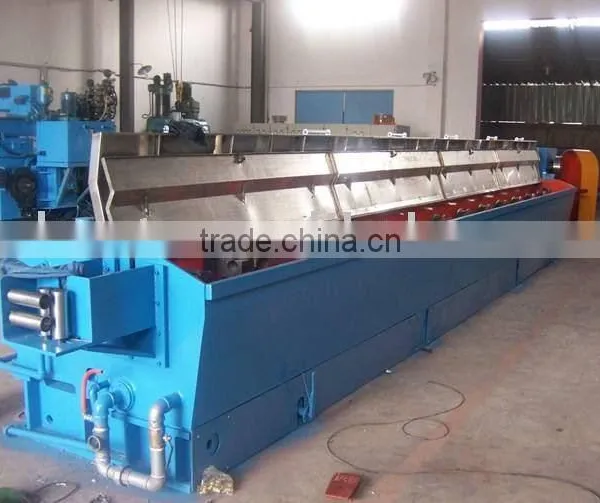

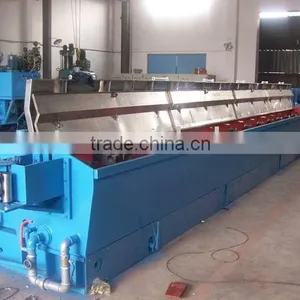

Cu Rod Breakdown Machine with Annealer(7/9/11/13 dies) (1/2 wires) |
Intermediate wire drawing machine with annealer (17 dies) (Coiler / spooler) |

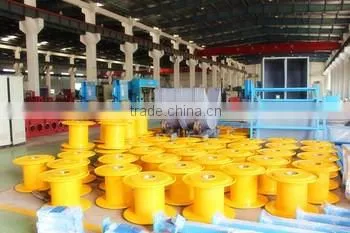

Boobins / spools/ reels |
