Rod Breakdown Machine for Aluminum Wire (wire equipment manufacturer)
- 15 Set / Sets per Month
- Shanghai
- T/T
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | HONTA | Model Number: | HT-450-13DT |
Usage: | Drawing |
Product Description
Specifications
wire equipment manufacturerto draw Al rod from 9.5mm to 1.7~4.8mm.
Speed: 25m/s,
13 dies, fast die change
2-motor drive
1. Technical Data of rod breakdown machine ( wire equipment manufacturer ):
Machine model | HT-450-13DT |
Inlet wire diameter | 9.5mm |
Outlet wire diameter | 1.7~4.8mm |
Max. Line speed | 25 m/s |
Max. Drawing pass | 13 |
Diameter of finish capstan | 450 mm |
Area reduction | 1.294 |
Max. Size of dies | 43x35 mm |
Speed ratio | 1.238 (die 2~12) for die 13 adjustable |
Power of drawing motor | 280 kw (DC), type Z4-315-12 1000rpm |
Power of motor for finish capstan | 75 kw (DC); type Z4-200-21 |
Motor for double spooler | Z4-160-31, 22 kw x2 (DC), 1500rpm(with detail description attached) |
Length of accumulated wire | 7m |
Tension of accumulated wire | 400N |
Max. take-up speed | 25m |
Max. traversing pitch | 6mm/r |
Size of take-up bobbin | PND630 PND500 |
Total install power | 450KVA |
Overall dimensions (L x W x H) | 23220x4500x4400 mm |
Annual capacity | 4200 Tons ( for 2mm wire, 20 hours per day, 300 days in a year) |
2. Certificate:
3.Main market:

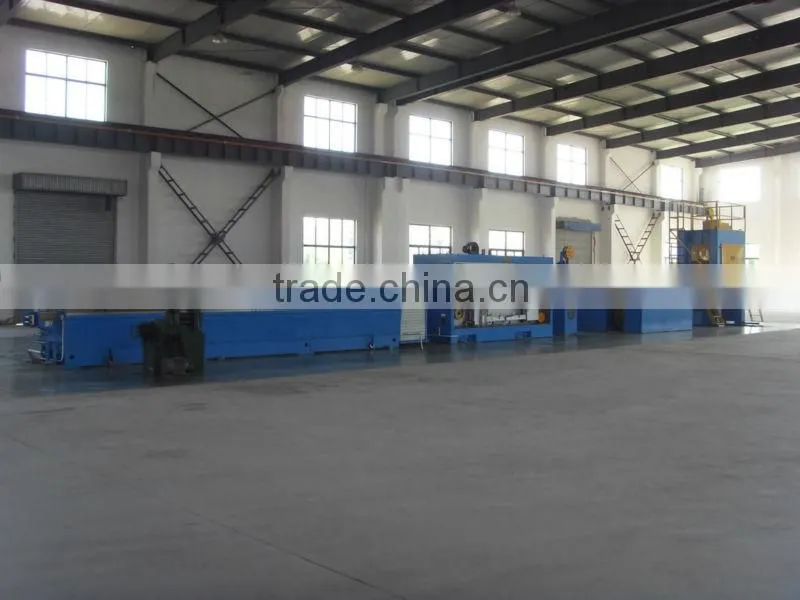

4. Machine picture:
