Features:

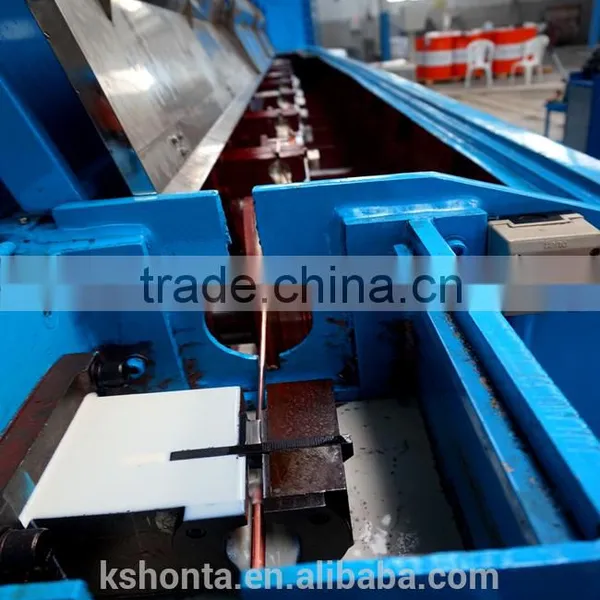

- Ø The horizontal and tandem construction, driven by two motors, fast die change design;
- Ø Driven by high precise helical gears ; high efficiency; low noise;

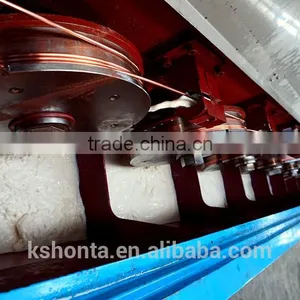

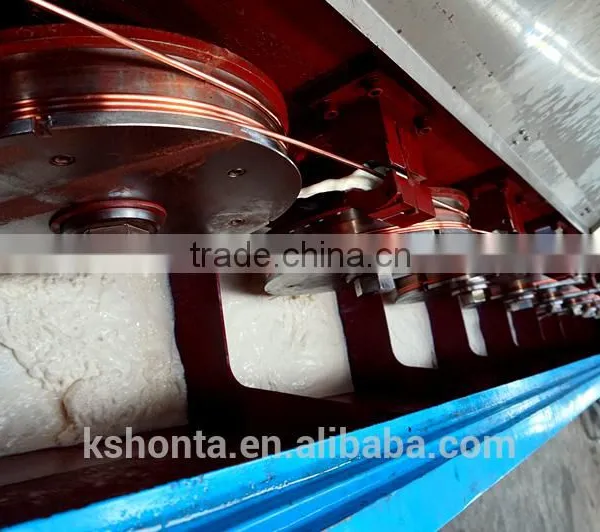

- Ø Drawing capstans are in combined structure;
- Ø Drawing capstans immersed lubrication and cooling can ensure high quality of wires;
- Ø DC/AC annealing control, speed tracks to drawing speed automatically; it can ensure uniform
- and stable elongation of copper wires;

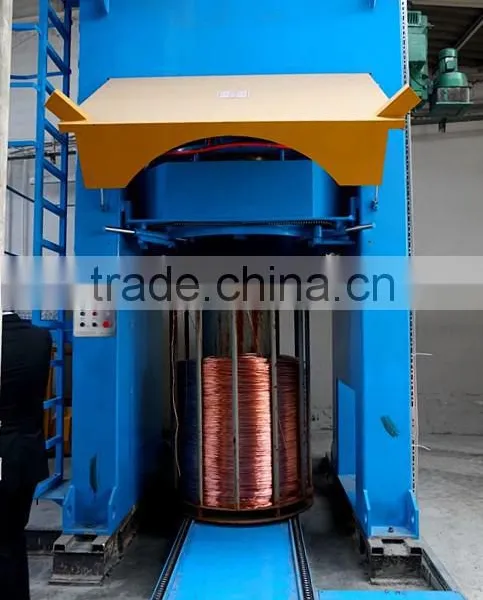

- Ø Double spoolers or coiler offered for option. The line is an equipment of high automaticity and
- high efficiency.
Technical Specification:
Machine speed |
HT-450-13D |
HT-450-11D |
HT-450-9D |
HT-450-7D |
Material |
Cu, Cu alloy |
|||
Machine speed |
Max.1500m/min |
Max.1000m/min |
||
No. of wires |
1/2wires |
1wire |
||
Inlet dia. |
8mm |
|||
Finished dia. |
1.20-3.50mm |
1.60-3.50mm |
2.20-3.50mm |
2.60-3.50mm |
No. of dies |
Max.13 |
Max.11 |
Max.9 |
Max.7 |
Drawing capstan dia. |
450mm |
|||
Finished capstan dia. |
450mm |
|||
Die change system |
Fast die change design |
|||
Control method |
DC/AC |
|||
Drive method |
Two motors |
One motor |
||
Production speed:
Wire dia.(mm) |
Speed (m/min) |
Enlongation |
|
TY/Hard wire |
TR/Soft wire |
||
1.20 |
1200 |
1200 |
≥30% |
1.78 |
1200 |
1200 |
≥30% |
2.50 |
900 |
900 |
≥30% |
3.00 |
600 |
500 |
≥30% |
Continuous Annealer:
Machine type |
HT-5000 |
HT-6000 |
HT-8000 |
HTA-4000 |
Material |
Cu, Cu alloy |
Al, Al alloy |
||
Machine speed |
Max.1500m/min |
|||
No. of wires |
1 |
1 |
2 |
1 |
Wire range |
1.20-3.50mm |
1.20-4.00mm |
1.20-3.50mm |
1.60-4.50mm |
Control pulley dia. |
355mm |
450mm |
||
Annealing current |
Max.5000 |
Max.6000 |
Max.8000 |
Max.4000 |
Annealing voltage |
Max.60v |
|||
Control method |
DC |
AC |
AC |
DC |
--------------------------------------------------------

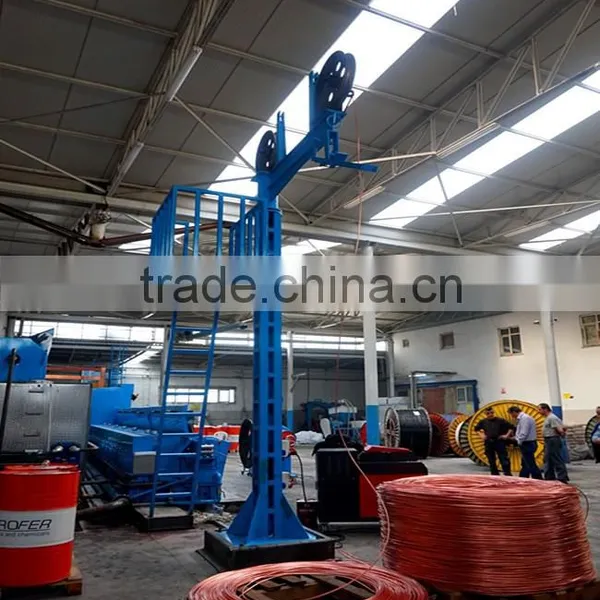

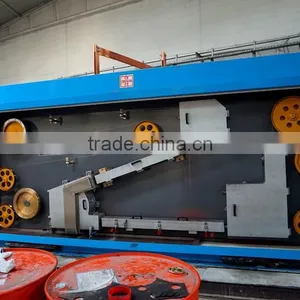

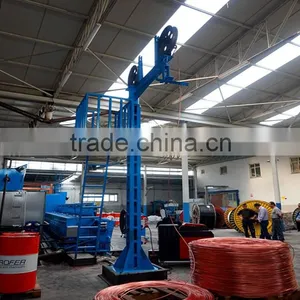

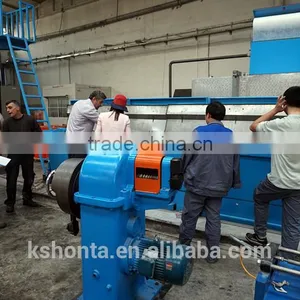

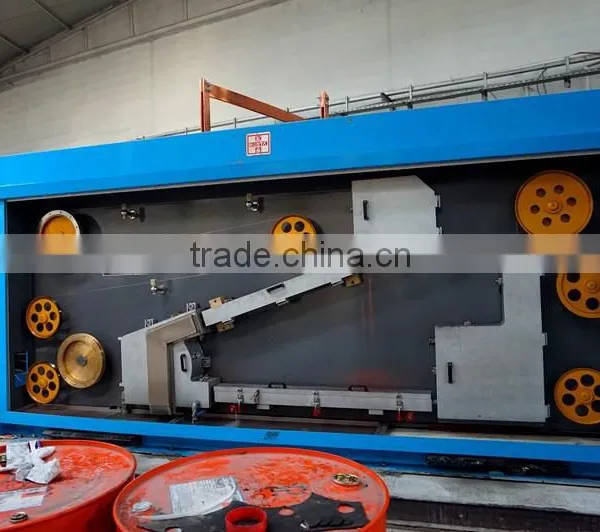

8mm copper wire drawing machine with annealer:
Our factory show:
CE for multi wire drawing machine:
Exhibition is shanghai city:

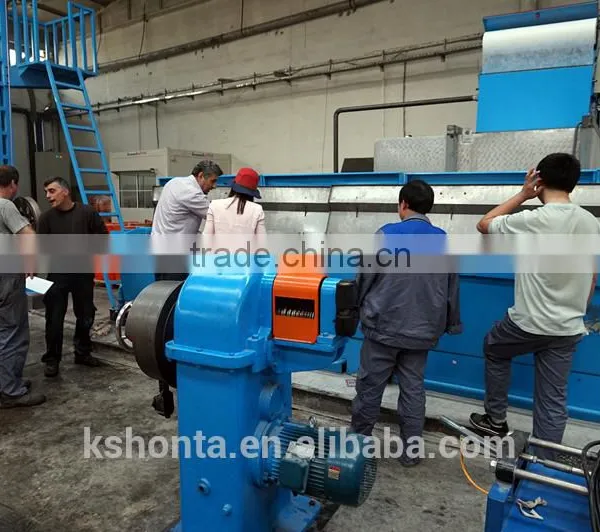

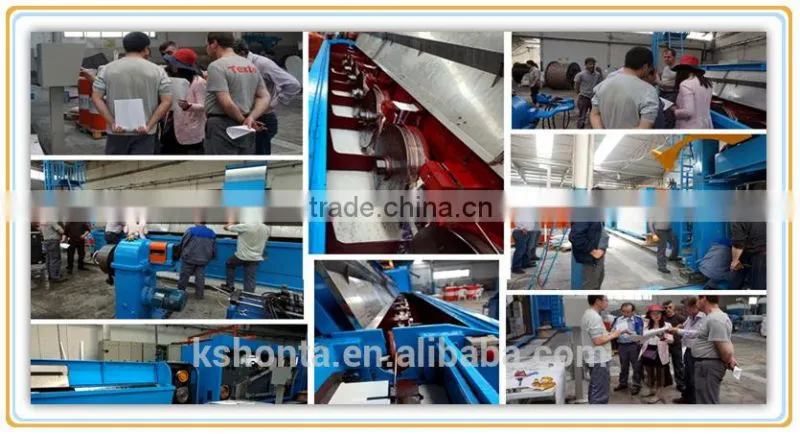

Commissioning wire drawing machine in Turkey :
Our customers come from different countries around the world.
|
|
|
|
Multi wire drawing machine with annealer(4/8/10/16/24wires) |
8mm Rod breakdown wire drawing machine with annealer(1/2wires) |
9.5mm Aluminum Rod breakdown wire drawing machine with online annealer |
Electrolytic Tin-plating Machine(3000Sn/6000Sn/10000Sn) |
|
|
|
|
Multi wire draiwng machine with annealer(4/8/10/16/24) |
All kind of double twisting buching machine |
Extrusion machine |
Stell bobbin |
