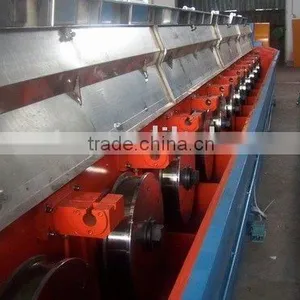

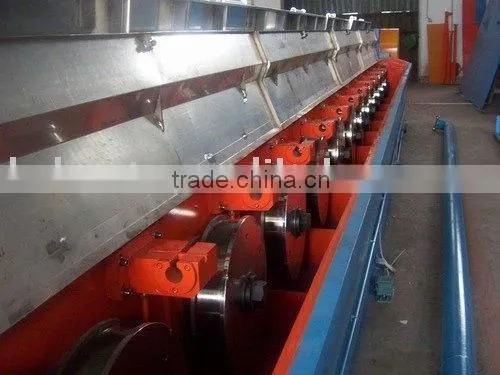

Aluminium Wire Drawing Machine

Name: Aluminium Wire Drawing Machine
Brand: HONTA
SKU: 111667231

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Inlet Diameter:

9.5

Outlet Diameter:

1.7

Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Inlet Diameter 9.5

Outlet Diameter 1.7

Place of Origin Jiangsu, China

Brand Name HONTA

Model Number HT-450-13D

Voltage 380

Power(W) 280Kw + 75 Kw

Certification CE

Warranty 1 year

After-sales Service Provided Engineers available to service machinery overseas

Technical Data of Rod Breakdown Machine for AluminumAluminum Alloy Wires
machine model	HT- 450-13D	HT- 450-11D			HT-450-9D
Drawing Line Speed (mpm/min)	1500 mpm/min	1200mpm/min			1000mpm/min
Drawing Dies NO./Max	13	11			9
Wire Inlet Dia.(mm)	9.5	9.5			9.5
Wire Outlet Dia.(mm)	1.7-4.8	2.0-4.8			2.2-4.8
The Rapid Dies Changes System	The function of dies fast changed. Establish the production specification or selecting the NO. Of dies. The computer calculates automatically. After setting the transmission coefficient, the machine fetches automatically and ly
Control System	human-machine interface + PLC control
	All alarm and parameter can be controlled and displayed on the touch screen.digital control for motor are available for computer operation.
Motor Control	DC motor control
Transmission Type	by precision ground helical gears
Slip Ratio of M/C	1.238	1.238		1.238
Capstan	multi-step type replaceable and tungsten carbide coated on the capstan
Capstan Dia.(mm)	450	450		450
Take-up Type	dual bobbin auto-spooler 500-630mm/Max
Main Motor	DC280KW(315KW)	DC250KW(280KW)		DC250KW
Capstan Motor	DC75KW	DC75KW		DC75KW
Take-up Motor	Double take up DC30KW X 2
Lubrication Type	bath lubrication
Lubrication Type for Bearing	by enforced oil pump
Power	3 X380V 50/60Hz
Machine Size	23620mm×4500mm×4400mm	21620mm×4500mm×4400mm	18620mm×4500mm×4400mm
