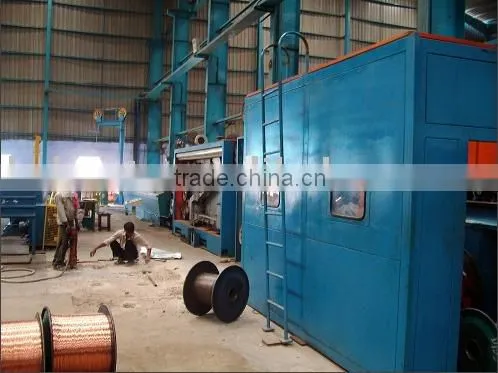

Rod Breakdown Machine RBD Line (Copper Wire Making Machine)

Rod Breakdown Machine RBD Line (Copper Wire Making Machine) thumbnail-1
Rod Breakdown Machine RBD Line (Copper Wire Making Machine) photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-450-13D
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-450-13D
Usage Drawing

Specifications

Copper wire making machine: which can draw wire from 8mm to 1.2-3.5mm ; Drawing line speed: 1000-1500mpm/min...

Part one   Introduction of Copper wire rod breakdown machine ( Copper wire making machine )




  HT-450/13 high-speed Rod breakdown Machine for Copper is used to pull copper rod fromø8 mm to 1.3 mm-3.5 (4.0) mm. The drawing gears are lined in a row to achieve continuous drawing and anneal online. Machinery and electrical speed are matched balanced. It is easy to operate,fast to change dies, and it can change the disks automatically without stopping.

This machine has advantages of easy to operate, high efficiency and high quality of its production.


Part two  Main technical data

Machine model

HT-450-13D

HT-450-11D

HT-450-9D

Drawing line speed ( MPM)

1500MPM/MIN

1200MPM/MIN

1000MPM/MIN

Drawing dies No./Max

13

11

9

Wire inlet Dia. (mm)

8

8

8

Wire outlet Dia. (mm)

1.2-3.5(4.0)

1.6-3.5(4.0)

2.0-3.5(4.0)

Control system

Man-machine interface + PLC control

Motor control

DC Motor Digital Control

Transmission type

By Precision Group Helical Gears

Slip ratio of M/C

1.278

1.278

1.278

Capstan

Multi-step type replaceble and coating on the capstan

Capstan dia.(mm)

Φ450

Φ450

Φ450

Take-up type

Dual bobbin auto-spooler

Coiler equipment



Main motor

DC280KW

DC250KW

DC250KW

Capstan motor

DC75KW

DC75KW

DC75KW

Take-up motor

DC30KW*2

Lubrication type

Plum Blossom Coiler: DC15KW or AC15KW

Lubrication type for bearing

Bath lubrication



Continuous annealing equipment

By enforced oil pump



Annealing voltage

DC55V

DC55V

DC55V

Power

3*380V  50/60Hz



Machine size

28220mm*4500mm*4400mm

25220mm*4500mm*4400mm

22220mm*4500mm*4400mm
