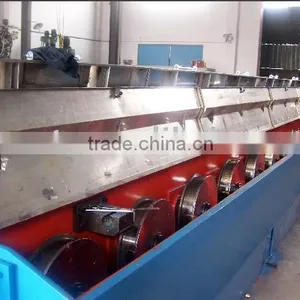

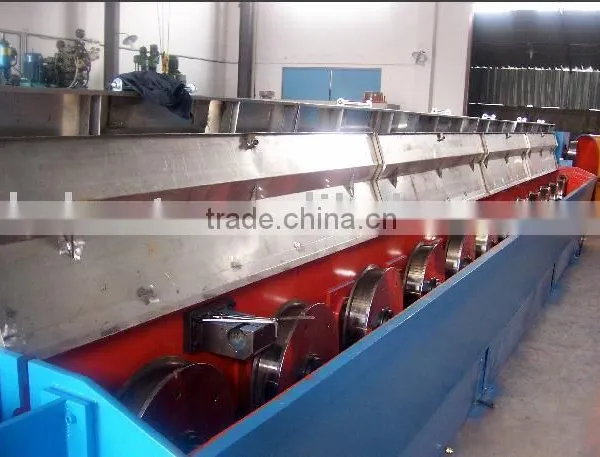

Aluminum Rod Breakdown Machine
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-450-13D
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Copper Rod Breakdown Machine (Wire Cable Machine)US$ 230,000 - 300,000MOQ: 1 Set -
13 Dies Al Rod Breakdown MachineNegotiableMOQ: 1 Set
-
Copper Rod Breakdown MachineNegotiableMOQ: 1 Set
-
Copper Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
Aluminium Rod Breakdown MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-450-13D
Usage
Drawing
| Machine Model | HT-450-13D | HT-450-11D | HT-450-9D |
| Drawing line speed | 1500MPM/MIN | 1200MPM/MIN | 1000MPM/MIN |
| Drawing dies NO./Max | 13 PCS | 11 | 9 |
| Wire inlet Dia.(mm) | 9.5 | 9.5 | 9.5 |
| Wire outlet Dia.(mm) | 1.7-4.8 | 2.0-4.8 | 2.2-4.8 |
| Control system | Man-machine interface+PLC control | ||
| Motor control | DC motor digital control | ||
| Transmission type | By precision group helical gears | ||
| Slip ratio of M/C | 1.238 | 1.238 | 1.238 |
| Capstan Dia.(mm) | Φ450 | Φ450 | Φ450 |
| Take-up type | Dual bobbin auto-spooler | ||
| Main motor | DC280KW | DC250KW(280KW) | DC250KW |
| Capstan motor | DC 75KW | DC 75KW | DC 75KW |
| Take-up motor | DC30KW*2 | ||
| Lubrication type | Bath lubrication | ||
| Lubrication type for bearing | by enforced oil pump | ||
| Power | 3*380V 50/60Hz | ||
| Machine size | 23620mm5600mm*4400mm | 21620mm*4500mm*4400mm | 18620mm*4500mm*4400mm |
