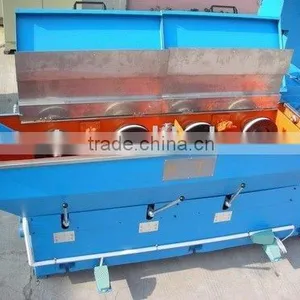

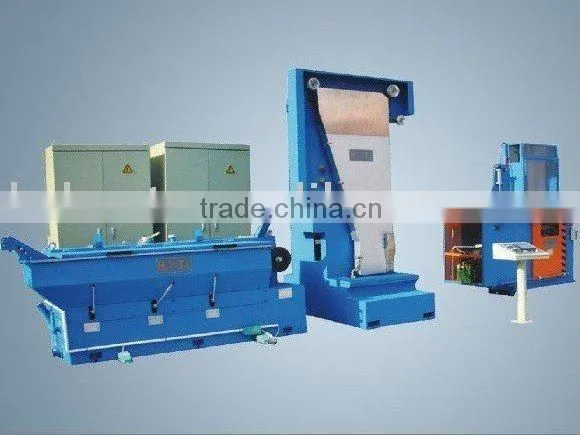

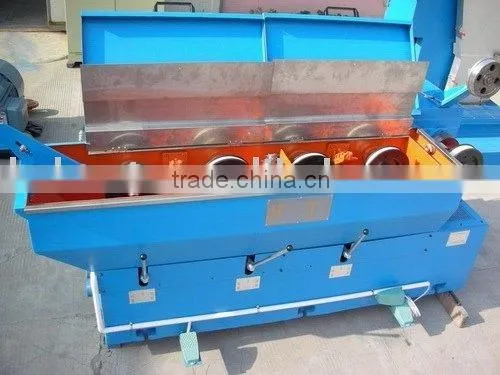

Help Center17 Dies Wire Drawing Machine
Related Products
Model |
HT-250-17D |
Max. inlet diameter |
φ 3.5mm |
Outlet diameter |
φ 0.4mm-φ1.6mm |
Max. Speed |
2000 m/min |
Max. dies |
17 |
Outside diameter of dies |
25mm |
Area reduction |
the last die:18.6%, The others: 25% |
Max. diameter of drawing capstan |
φ250mm |
Finished cpstan diameter |
φ250mm |
Motor of drawing machine |
DC75/ AC55 inverter control |
drawing machine demension |
2400 X1250 X 1400 (mm) |
Weight of drawing machine |
2500 KGS |
Annealing diameter |
φ0.4~φ1.6mm |
Max. annealing speed (m/min) |
1800 |
annealing current DC (A) |
2000 |
Max. annealing DC voltage(V) |
60 |
Annealing capacity(KVA) |
210 |
Steam generator power (KW) |
9 |
Steam quantity (kg/h) |
Max12 |
Overall sizeL×W×H(mm) |
1350×1600×2640 |
Weight (kgs) |
About 1800 |
Well packed on steel pallets in containers.
Suitable for long distance ocean freight transportation and to change of climate, well protected against moisture and shocks.
1. Technical support, design machine according to customer's requirement.
2. Prepare detail proposals for customer's check.
3. Be guider for machine installation.
4. To send engineers to customer's plant to finish machine commissioning.
5. Help customers to remove troubles in future running.
