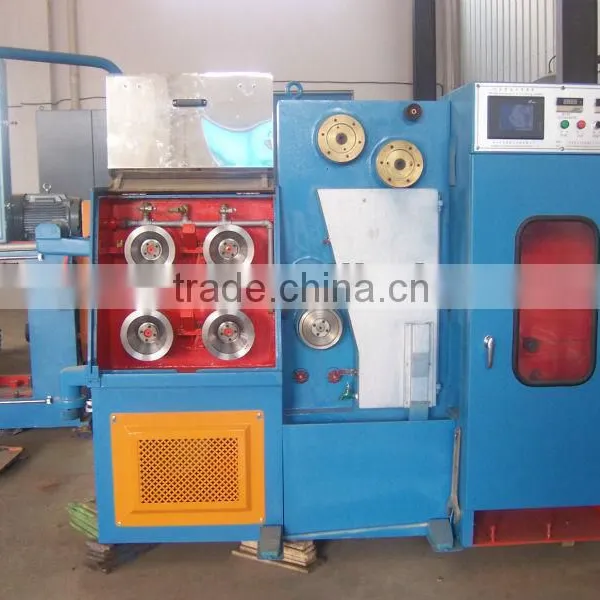

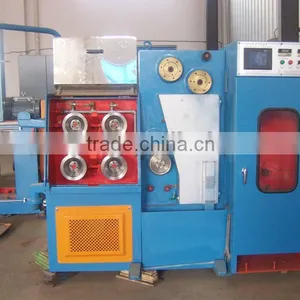

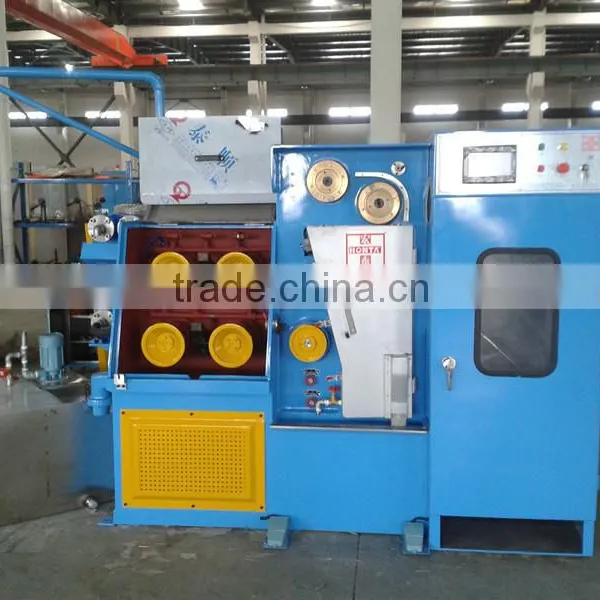

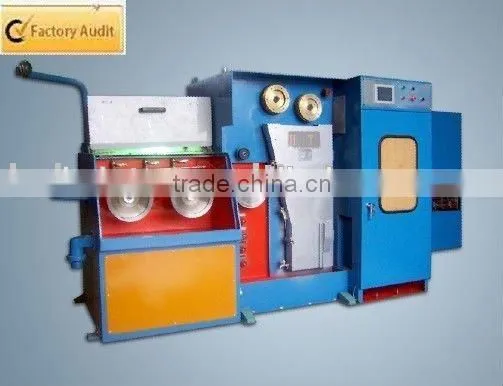

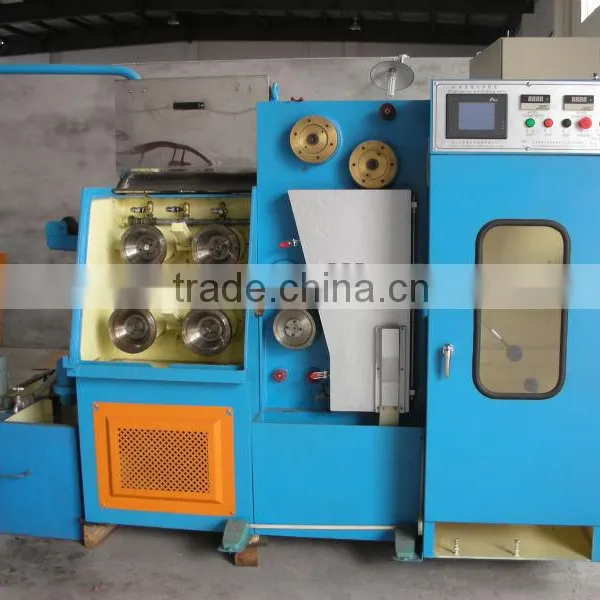

1. Description of HT-15DT Fine wire drawing machine:
Body structure : steel welding
Applicable marterial: hypoxia or oxygen free red copper wires, tinned copper wire, silver-coated copper wires,
Max. line speed: Max. 1200m/min
Inlet dia.: Max.1.6mm,copper wire
Outlet dia.: 0.2~0.68mm
NO. of dies: Max. 15
Dimension of dies: diameter 25mm X thickness 8-12mm
Area reduction: the last die is 1.08; the others are1.175
Diameter of drawing capstan: Max. 315.9mm, coated with chromic oxide
Diameter of finished capstan: 268.2mm, coated with chromic oxide
(drawing for tin-coated wire and silver-coated wire, the drawing capstans are coated with zirconia).
Total installed capacity: 38 KW
Color/painting: blue (or according to customer’s request)
Operation direction: from left to right
Dimension(L×W×H): approx. 1400×2050×1200mm
Weight:about 2000kgs
2. Certificate:
3. Main market:
4. Packing:
