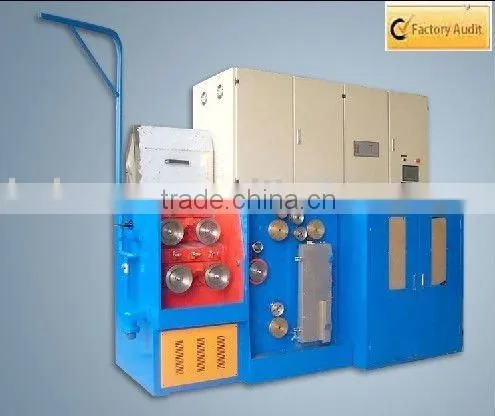

Fine Wire Drawing Machine and Double Spooler With Continuous Annealer

Name: Fine Wire Drawing Machine and Double Spooler With Continuous Annealer
Brand: HONTA
SKU: 111664621

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

HONTA

Model Number:

HT-22DTS

Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name HONTA

Model Number HT-22DTS

Usage Drawing

Part one Features of HT-22DTS Fine wire drawing machine and double spooler with continuous annealer:

Drawing capstans arranged squarely can save space.
Transmitted by high quality flat belts maintenance easy, low noise.
Two motors type can precisely control the spool wire tension to reduce the slip ratio of wire to a minimum manner
Man-machine interface communication control, the digital operation , double transducers.
Continuous annealing machine control system: DC control.
Multi-zone annealing, annealing uniform.
The automatic degree is high. It changes spoolers automatically when it spools the wire to the given length to achieve the purpose of continuous production. It saves time and labor.

Part two Technical data:

Machine type: 2 capstans square type
Max . speed(MPM/MIN): 1800
Slip ratio of M/C: 15.00%
Capstan slip ratio: 8.00%
Control system: PLC+ man-machine interface .All alarm and parameter can be controlled and displayed on a fluorescent backlid LCD graphics screen. Digital control for motor are available for computer operation.
Motor control: Dual inverter control
Capstan: Ceramic plasma
Capstan Dia.(Max): 160mm
Capstan Dia.: 160mm
Take-up Dia.: Φ300/max
Bobbin loading & unloading: Shaft type
Traversing unit: Synchronize Motor type
Main motor: 15KW
Take-up motor: 4KW×2
Top power consumption: 23KW
Synchronous control: PID synchronous control spooler
Tension control: Weight balance by swing arm
Max. loading weight: 50KG
Brake: 10kg magnetic brake
Lubrication type: Spray type
Annealing voltage: DC65V
Annealing current: DC300A
Annealing capacity: 25KVA
Lubrication type for bearing: Without oil
Power: 3×380V 50/60Hz
Machine size: 3200×1600 1800
