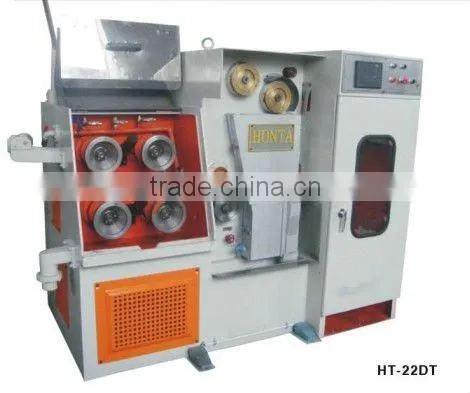

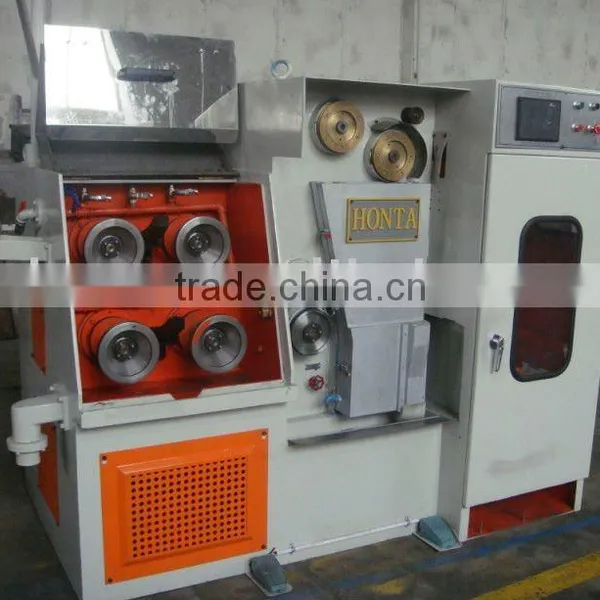

Fine Wire Drawing Equipment High Speed Electric Cable Making Equipement
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Model Number:
HT-22DT
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fine Wire Drawing MachineNegotiableMOQ: 1 Set -
HT-24DT High Speed Fine Wire Drawing Machine With AnnealerNegotiableMOQ: 1 Set
-
High Speed Fine Wire Drawing MachineNegotiableMOQ: 1 Set
-
Fine Wire Drawing Machine With Annealer Electric Wire Drawing Machine Automatic Take-upUS$ 30,000 - 40,000MOQ: 1 Set
-
HT-22DTS Fine Wire Drawing Machine With Annealer Wire and Cable MachineNegotiableMOQ: 1 Set
Place of Origin
Jiangsu, China
Brand Name
HONTA
Model Number
HT-22DT
Usage
Drawing
Technical data
Inlet : Max 1.2mm
Outlet : 0.10~0.45mm
NO. Of dies : Max 22
Max. Line speed : Max 1800m/min
Applicable material : hypoxia or oxygen free red copper wires, tinned copper wire, silver coated copper wires
Exterior diameter of dies : Dia. 25mm x thickness 8-12mm
Area reduction : the last die is 1.08; the others are1.175
Drawing capstan : 4 capstans
Transmission : all by flat belts
Wire drawing lubrication way : spraying
Operation direction : Left to right or right to left
Weight : about 2000kg
Requirements for emulsion:
Working pressure : 0.2~0.4Mpa
Temperature : ≤30°C
Flow rate :12~18m3/h
