Electrolytic Plating Machine Copper Plating Machine 6000A

Electrolytic Plating Machine Copper Plating Machine 6000A thumbnail-1
Electrolytic Plating Machine Copper Plating Machine 6000A photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
HONTA
Contact Supplier Request Quote Chat Now
Kunshan City Hongtai Machinery & Electric Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Jiangsu, China
Brand Name HONTA
Model Number HT-6000 Cu -15m/s

Specifications

Electrolyic wire plating machine
1. Processes: degreasing; pickling; plating;
2. Applicable: Cu. wire; 15m/s;

 Type of line                                           : HT– 6000 Cu- 15 m/s
Weight without bath liquids                : approx. 8,000 kg

Weight with bath liquids                     : approx. 12,000 kg

Number of wires                                   : one

Wire speed                                            : max. 15m/s

Wire material                                         : Cu

Wire diameter range                             : 1.2 – 2.6 mm hard  1.2 – 3.0 mm soft

Condition of wire                                   : low grease and free from oxides

Coating material                                     : Sn

Coating thickness                                  : 1 to 25 µm

Coating quality                                        : as per DIN 40500, ASTM B 33

Total installed load                                 : approx. 120 kW

Control voltage                                        : 24 V DC, 230 V AC

Electric equipment                                  : acc. to VDE and VBG 4

Max. ambient temperature                     : 45°C (hall temperature)

Noise level                                                : max. 85 dB (A) average sound level,

                                                                     acc. to DIN 45635

Plating current                                           : 6000 A, 10 V

Degreasing current                                  :  500 A, 10 V

Immersion length, plating                        :  140 m

Immersion length, degreasing                     :  40 m

Groove dia. of current roller, plating                   :  400 mm, 27 grooves

Groove dia. of current roller, degreasing            :  400 mm, 18 grooves

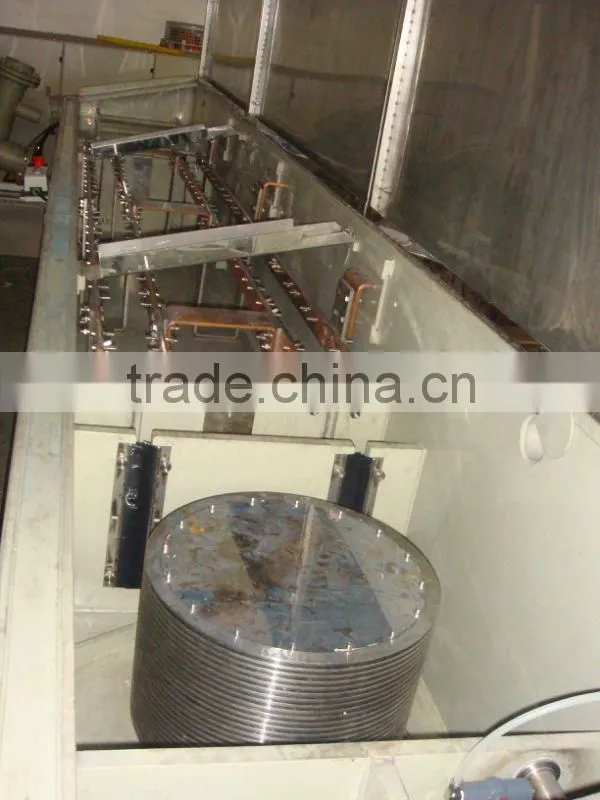

Electrolytic Plating machine copper plating machine 6000A
