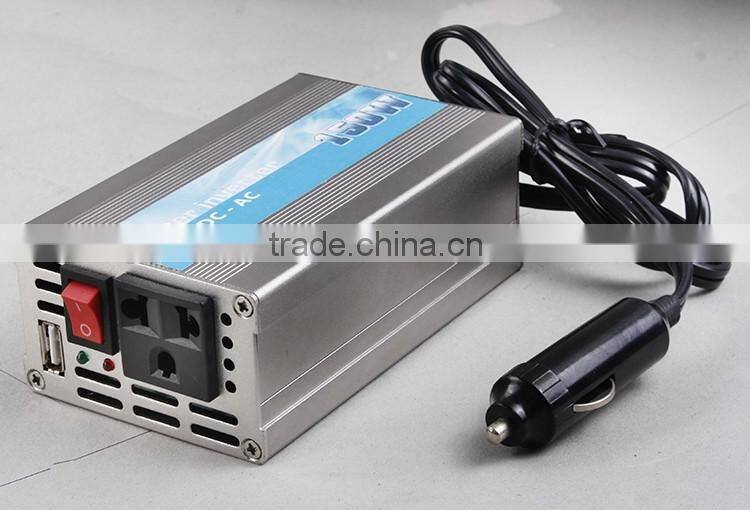

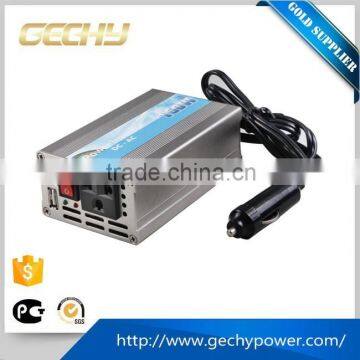

Universal Socket !HYM-150W Dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave Car Power Inverter With USB Port

Universal Socket !HYM-150W Dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave Car Power Inverter With USB Port thumbnail-1
Universal Socket !HYM-150W Dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave Car Power Inverter With USB Port thumbnail-2
Universal Socket !HYM-150W Dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave Car Power Inverter With USB Port photo-1
Universal Socket !HYM-150W Dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave Car Power Inverter With USB Port photo-2
US$ 5 - 20 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
GECHY
Model Number:
HYM-150 Power Inverter
Contact Supplier Request Quote Chat Now
Yueqing Gechy Import And Export Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name GECHY
Model Number HYM-150 Power Inverter
Output Power Other, 1-200w
Output Type Single
Size 135x75x45
Weight 0.50kg
Input Voltage 12V OR 24V DC
Output Voltage 115V+/-10% OR 230V+/-10%
Type DC/AC Inverters
Output Frequency 50Hz/60Hz
Output Current <0.25A

Universal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB port

  Universal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB port

Product Description



Function & Characteristic

1.Input Voltage Range of 12V DC or 24V DC

2.Output Voltage Range of 115V AC or 230V AC

3.For use in cars,boats,trucks,trailers and mobile homes.

4.Take the power inverter to camping and get AC power for lamps,radios or TVs.

5.In an emergency such as blackout,attach the power inverter to your car battery or portable battery and get power to run your appliances.

6.Ultra-Compact Metal Housing

Small and rugged;stored easily in any tool box,briefcase or glove compartment.

7.Low-Battery Alarm/Shutdown

Automatically detects low voltage and shuts down to protect your battery.

8.Integrated Fuse Protection

Protects your battery and power inverter from damage due to outlet overload.



Power inverter specifications



Model

HYM-100

HYM-150

HYM-180

HYM-200

Output power(Continuous Watts)

100W

150W

180W

200W

Output power(Peak Watts)

200W

300W

360W

400W

No load Current Draw

<0.25A

<0.25A

<0.25A

<0.25A

Nominal Input Voltage(DC)

12V(10~15V)  OR  24V(20~30V)

Nominal Output Voltage(AC)

115V+/-10%  OR  230V+/-10%

Frequency

50+/-2HZ  OR  60+/-2HZ

Output Waveform

Modified Sine Wave

High Battery-voltage Shutdown(Volts)

15.5+/-0.5V  OR  30+/-1V DC

Low Battery-voltage Alarm(Volts)

10.5+/-0.5V  OR  21+/-1V DC

Low Battery-voltage Shutdown(Volts)

10+/-0.5V  OR  20+/-1V DC

Efficiency

85~90%

Thermal Protection

65°C+/-5°C

Overload



≥120W

≥180W

≥216W

≥240W

Shut down&Alarm,restart when load is under rated power

Battery Polarity Reverse

By fuse replacement

Output Short-circuit

Output short-circuit protection,do not damage the circuit

With Cooling Fan

Auto-operation fan(load)

Product Dimension(L*W*H)MM

135x75x45

135x75x45

135x105x60

135x105x60

Weight(KG)

0.48

0.50

0.63

0.68





 Universal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB port

Universal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB portUniversal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB portUniversal socket !HYM-150W dc12v/24v to ac 115v/230v Modified Sine Wave OR Pure Sine Wave car power inverter with USB port

FAQ



Q 1. what's the payment terms?

A. We accept LC, T/T, PayPal, Western Union, Small-amount payment, Money Gram
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your r
equirment. In fact,those two have no difference if normal work well. Only except the longlife. Copper is better
 and also higer price.For relay type stabilizer,we use toroid coils, the material is aluminum. comparing with square coils,toriod coils with high efficiency.
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply for
 this certificate.
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs   and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa, Oceania,
 Mid East, Eastern Asia, Western Europeand so on.Some of them are our regular customers and some of them
 are developing. We hope you can join us and make mutural benifit from our cooperation.
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
