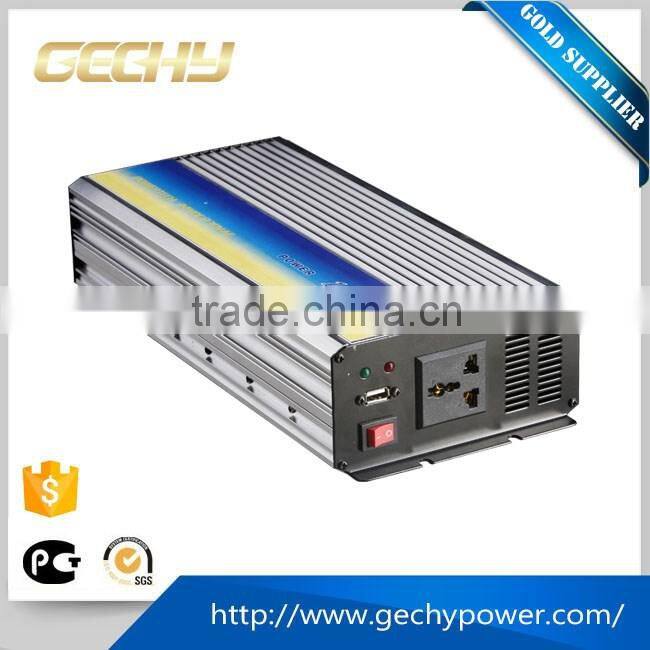

HYM-1500W single phase DC 12v to AC 230v car power inverter/transformer with USB port
- 10000 Piece / Pieces per Month
- Ningbo/SHanghai
- T/T Credit Card PayPal
- electric ac motor speed controller 480V 32A 18kw 3phase Input&3Phase Output AC frequency converter with 18 months warranty
- 45kw 380v vector control ac frequency converter 50hz 60hz motor frequency inverter 3 phase Power Frequency Converter for Pump
- EM15-G3 General used Vector control Frequency inverter(3 phase )
- EMHEATER soft starter
- EM GS2 7.5KW 220V 240V Motor Soft Starter for Submersible Pump deep well
- Inverter AB PowerFlex®7 Converter 22CD012N103 Inverter PowerFlex 400- 5.5 kW (7.5 HP) AC Drive
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | GECHY | Model Number: | HYM-1500W power inverter |
Output Power: | 1 - 200KW | Output Type: | Single | Size: | 320*150*98mm |
Weight: | 3KG | Input Voltage: | 12V or 24V DC | Output Voltage: | 220V AC/110V AC |
Type: | DC/AC Inverters | Output Frequency: | 50Hz/60Hz | Output Current: | <0.6A |
Product Description
HYM-1500W single phase DC 12v to AC 230v car power inverter/transformer with USB port
Products Features :
·Small size , light weight and potable
·Easy to use and high efficiency
·Green LED indicates power on,Red LED indicates wrong
·Input & output isolation
·Muti-protection function
·USB output port: 5V 500mA
· Built-in Cooling Fan
Protection Features:
·Low voltage protection
·Over voltage protection
·Overload protection
·Over temperature protection
·Short circuit protection
·Reverse connect protection
Power inverter specifications:
Output voltage | 110V | 230V | 110V | 230V |
Input voltage | 12V | 12V | 24V | 24V |
High Volt Cut off | 15-16V | 30-32V | ||
Low Volt Alarm | 10.5±0.5V | 21±1V | ||
Low Volt Cut Off | 10±0.5V | 20±1V | ||
Rated power | 1500W | 1500W | ||
Surge power | 3000W | 3000W | ||
Output frequency | 50±2Hz OR 60H±2Hz | |||
USB port | 5V 500mA | |||
Output waveform | Modified Sine Wave | |||
No load current | <0.6A | |||
Efficiency | >85% | |||
Max. outer temperature | <65°C | |||
Packing | Gift box | |||
Brand | GECHY or OEM | |||
Certification | CE-EMC/LVD,RoHS, E-mark | |||
Warranty | 24 months |
1.Enquiry answered within 24 hours:
Don't hesitate to send inquiry to us when you see our products, we will do our best to reply as soon as possible and help you get more profit here
2.OEM/ODM available:
you can supply your logo and package design to us, we will do that according to your requirements
3.Customized products supplied:
we have 2 electronic engineers, so we can produce all kinds of stabilizers according to your thought
4.Sample for you:
Telling me your specific address and your requirements of stabilizers, sample can be offered for test before order, but customer will have to pay the sample charger and freight charge. The sample will be refunded cost when order confirmed.
5. 2 years warranty available:
Every stablizers has 1pcs qualification and 1pcs after-sale service card, customers can get 2 years warranty with the both card.
Q 1. what's the payment terms?
Q 2. how's the delivery time ?
A. usually it will take about two weeks for production
Q 3. tell me the standard of package?
A. For the small capacity, it use carton, but for big capacity, we should use strong wooden case for protection.
Q 4. what kind of material of transformer?
A. For servo type stabilizer,we have two types, one 100% copper and the other is copper with aluminum.It depends on your
Q 5.Could you offer Form A or C/O ?
A. It totally not a problem. We can prepare relative documents to forgin affairs office or other office to apply
Q 6.Would you accept to use our logo ?
A.If you have good quantity,it absolute no problem to do OEM.
Q 7.We want to know month capacity.
A. It depends on which model.For example for relay type small capacity , month capacity can reach near 10000pcs and big capacity near 2000pcs.
Q 8.Where is your market?
A. Our products are popular inNorth America, South America, Eastern Europe, Southeast Asia, Africa,
Q 9. what kind of certificate you have ?
A. Our company already achieve ISO9001, and for products, we have CE,PCT,SGS.
