Specifications

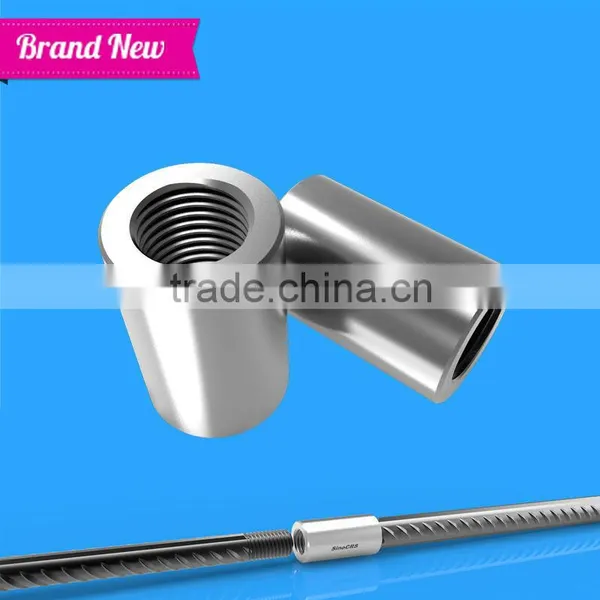

Rebar coupler, rebar connector (diameter 14mm-40mm) is used for Mechanical Bar Splicing in contruction with high strength.Rebar Coupler
Rebar coupler, rebar connector (diameter 14mm-40mm) is used for Mechanical Bar Splicing in contruction with high strength.
Packaging & delivery: Carton &Wooden Pallets. Products also can be packed according to customer's special demands.
Specifications
Rebar coupler, rebar connector, rebar connection sleeve
1. Size: 14mm-40mm.
2. Raw Material:45# high-quality carbon structural steel (round steel).
3. Type: Standard Type, Left-Handed &Right-Handed Type, Reducing Type.
4. Tensile strength could reach 110% of mother material.
5. Suitable Rebar: HRB335,HRB400,HRB500 and Equivalent Rebars.
Technical Parameters
Size |
Length (mm) |
Diameter (mm) |
Thread Pitch(mm) |
Thread Angle |
Weight(kg) |
Package (Pcs/bag) |
Φ 14 |
37 |
21.00 |
2.00 |
60° |
0.065 |
200 |
Φ 16 |
40 |
23.50 |
2.50 |
60° |
0.080 |
150 |
Φ 18 |
45 |
26.50 |
2.50 |
60° |
0.115 |
120 |
Φ 20 |
50 |
29.50 |
2.50 |
75° |
0.155 |
100 |
Φ 22 |
55 |
32.50 |
2.50 |
75° |
0.210 |
80 |
Φ 25 |
60 |
37.50 |
3.00 |
75° |
0.310 |
60 |
Φ 28 |
67 |
41.50 |
3.00 |
75° |
0.415 |
40 |
Φ 32 |
76 |
47.50 |
3.00 |
75° |
0.595 |
30 |
Φ 36 |
84 |
53.50 |
3.00 |
75° |
0.855 |
25 |
Φ 40 |
93 |
58.60 |
3.00 |
75° |
1.100 |
20 |
Product features
* High tensile strength, suitable for various kinds of frame structure engineering.
* Reach GB1499.2 and JGJ107 – 2010.
* Connection meet the following several parts of the properties:
1) The uniaxial tensile properties.
2) The high stress repeated tension and compression properties.
3) Large deformation repeated tension and compression properties.
* Manufactured under strict quality control and reach ISO9001.
* Easy to operate, install and maintain.
Related testing
1. Tensile strength = 1.1 x tensile strength reinforced (usually more than 600MPA).
2. Fatigue test: 2 million times fatigue strength test, connect in good condition.
Customers’ special demands also can be available.
Production Process
-Raw Material
-Cutting Rebar
-Bore & Strip the ex-circle
-Under Checking Semi-finished Couplers
-Countersink & Finished Couplers
