Help CenterVMC 420L 3 Axis Mini/small Cnc Milling Machine Price
Related Products
-
Radial Drilling MachineUS$ 9,000 - 12,000MOQ: 1 Set -
Radial Arm Drilling MachineUS$ 5,000 - 12,000MOQ: 1 Set
-
Radial Drilling Machine Z3050X16US$ 9,000 - 12,000MOQ: 1 Set
-
Radial Drilling Machine Z3050X13US$ 9,000 - 12,000MOQ: 1 Set
-
Z3050X10 Radial Drilling MachineUS$ 9,000 - 12,000MOQ: 1 Set
NO. |
Item |
Specification |
|||||
1 |
Table size L(mm)×W(mm) |
800×260 |
|||||
2 |
T slot QTY /width/interval distance(mm) |
5-16-50 |
|||||
3 |
Maximum load(KG) |
150 |
|||||
4 |
X travel (mm) |
420 |
|||||
5 |
Y travel (mm) |
270 |
|||||
6 |
Z travel (mm) |
410 |
|||||
7 |
Spindle nose to table (mm) |
70-480 |
|||||
8 |
Spindle center to column (mm) |
315 |
|||||
9 |
Spindle taper |
BT30 |
|||||
10 |
Max. spindle speed (Rpm) |
6000 or 8000 |
|||||
11 |
Main motor (kW) |
2.2 |
|||||
12 |
Feed motor |
X torque (N.M) |
4 |
||||
|
|
Y torque (N.M) |
5 |
||||
|
|
Z torque (N.M) |
6 |
||||
|
|
Max. install size |
XY |
Square 110×11diameter φ95 |
|||
|
|
|
Z |
Square 130×130diameterφ110 |
|||
13 |
Rapid moving speed (m/min.) |
10 |
|||||
14 |
Cutting speed (mm/min) |
1-4000 |
|||||
15 |
Ball screw (diameter/pitch )mm |
XY |
20/5 |
||||
|
|
Z |
25/5 |
||||
16 |
Linear guide way width (mm) |
XY |
20 |
||||
|
|
Z |
25 |
||||
17 |
Accuracy |
Positioning accuracy (mm) |
0.016 |
||||
|
|
Repeatability accuracy (mm) |
0.008 |
||||
18 |
Tool changer |
Funnel type (optional ) BT30 |
10 or 8 |
||||
|
|
Tool changing time (s) |
Funnel type |
8 |
|||
19 |
Air pressure (Mpa) |
0.6 |
|||||
20 |
Machine weight (kg) |
Frame |
800 |
||||
|
|
Complete machine |
1300 |
||||
21 |
Machine overall size : L(mm)×W(mm)×H(mm) |
Frame |
830×1000×1800 |
||||
|
|
Complete machine |
1900×1400×2100 |
||||

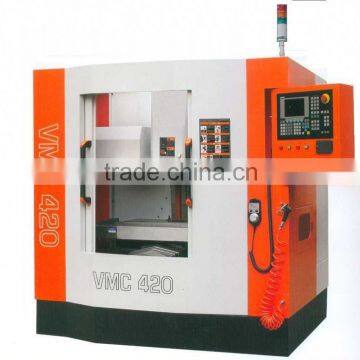

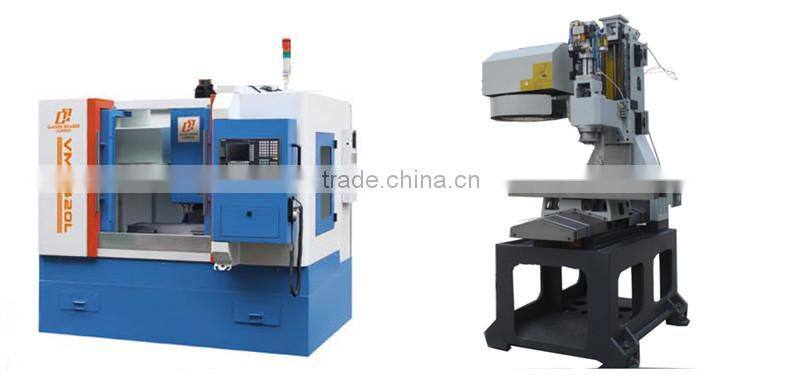

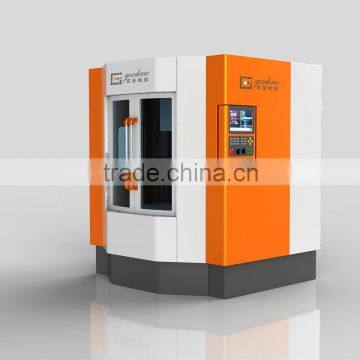

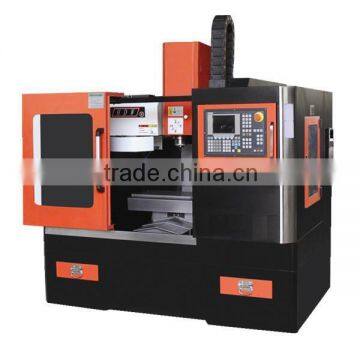

Vertical cnc milling machine VMC420L
Able to mill steel, copper, aluminum, wood and plastic
Taiwan spindle, taiwan linear guide ways
Complete machine: standard with external handwheel ,tri-colour lights,lubrication,coolant system.
Complete machine standard with RS232 interface.

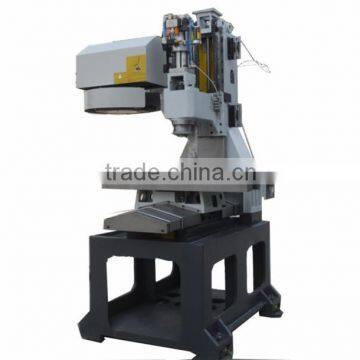

Frame is with lubrication, without controller, without any electrical parts.
Tool
Suggested max tool length(BT30):150mm
Suggested max tool weight(BT30):4kg
Suggested max tool diameter(BT30): φ50/φ100mm

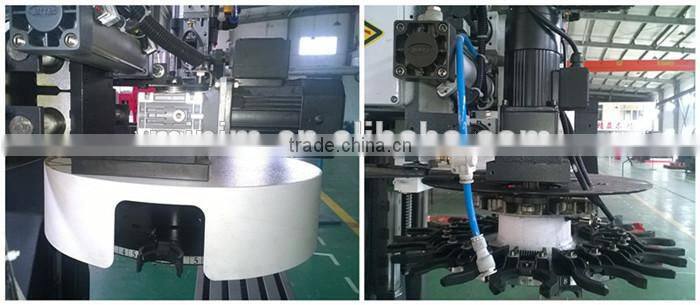

ATC(automatic tool changer)
Standard:funnel type tool changer(BT30,12 tools)
Optional:manipulator tool changer(different price)
Controller
Stnadard:GSK218M or KND1000M2 controller (with rigid tappering fuction)
Optional:Siemens 808DC control panel with servo motor and servo driver made in China
Motor
spindle motor is servo motor,2.2KW,torque 14NM
X,Y,Z axes are all servo motors
Accessories
Complete machine is with standard accessories:1 pc tool holder,1 pc pull stud,1 set collects, 1 pc spanner, 1 pc direct
screwdriver, 1 pc Philips screwdriver.
Optional accessories:4th axise, rotary table.(note: optional accessories are price sepreaterd)
Power
Please inform power voltage and current,if transformer is needed price would be different.

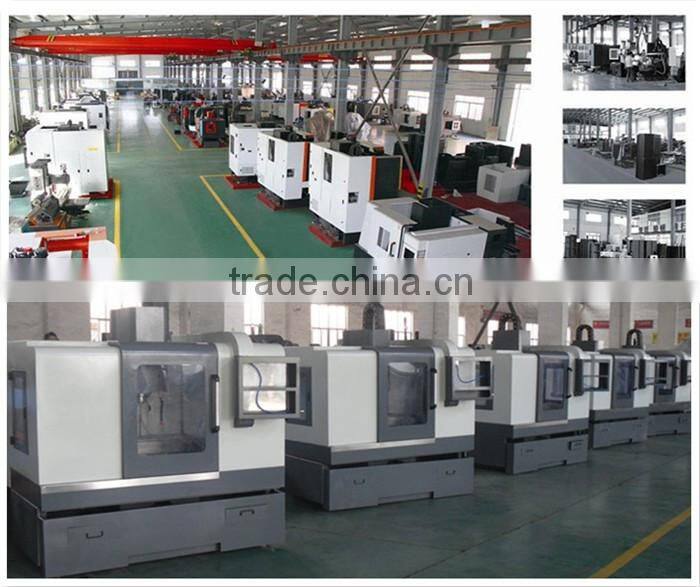

We, Tengzhou City Good CNC Machine Co., Ltd. are professional supplier and experienced manufacturer CNC mill
machine in China, especially specialize in developing and manufacturing CNC milling machines.
Products: Mini CNC Milling Machine, Machining Centers, Machining Tools DIY CNC Low Cost CNC Small CNC Desktop CNC
Milling CNC Benctop CNC CNC Machine Machine tool CNC machining CNC milling Conventional milling Universal milling CNC
machine CNC machine center, CNC machine, CNC Machine Tools CNC VMC Series milling machine
(1).X,Yaxis adopt linear rail in 20mm ,Z 25mm width so as to ensure processing rigidity.
(2).High speed, high precision spindle 8000rpm.
(3) Cooling system adopt water pump in big flow and high head so as to ensure enough cooling
under cutting in high speed.
standard apart :
Linear Guideway
10 tools funeal type tool magazine
BT30 Max. Spindle Speed 8000RPM
Automatic Lubrication Unit
Coolant Supply System
Electric Handwheel
optional apart :

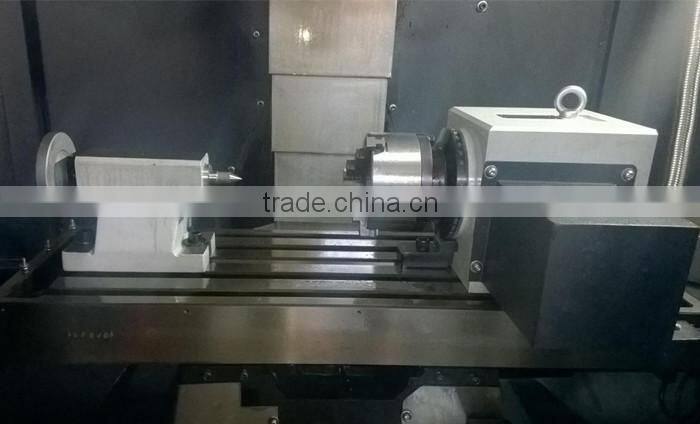

4th axis of CNC control system ( Dividing head or Rotary working table )
We will supply enough spare parts and accessories with our machine when shipment. Within one year after receiving our
machine, If there are any damaged parts or accessoreis, We will supply them to you by air-mail FREE OF CHARGE.
We will provide GOOD After-sellingService for our clients after shipment. It's basis of establishing long-term cooperation
with our foreign clients.

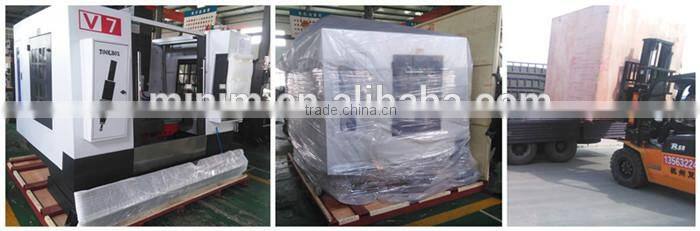

1 Anticorrosive oil and transparent plastic cover shell
2 The metal tray and Non-fumigation wooden case
3 packing size: * * mm
