Specifications
This WDW20electronic universal tensile testing machine
can to do tensile
compression
bending,shear .

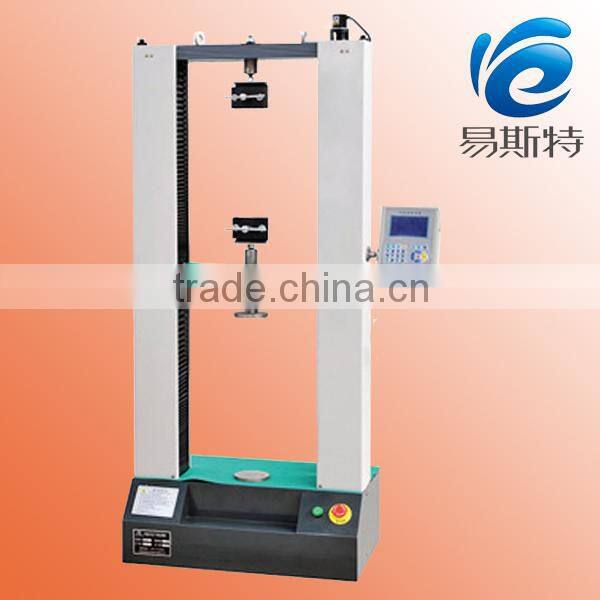

ELECTRONIC UNIVERSAL TENSILE TESTING MACHINE
Application of equipment This electronic universal testing machine is applied in analysis and research of statics property testing of tensile, compression, bending, cutting, holding and other items of metal and nonmetal material (including composite material). It can achieve ReH, ReL, Rp0.2, Fm, Rt0.5 , Rt0.6, Rt0.65, Rt0.7,Rm, E and other testing parameters automatically and can also do test and provide data according to GB, ISO, DIN, ASTM, JIS and other international standards.
ELECTRONIC UNIVERSAL TENSILE TESTING MACHINE
Main technical parameters (1) Measurement parameters 1. Maximum test force: 20KN 2. Accuracy class: 0.5/1 3. Measuring range of test force: 0.4%~100%FS /1%-100%(full scale) 4. Indicating error of test force: within ±0.5% of indicating value/within ±1% of indicating value 5. Resolution of test force: ±1/300000 of maximum test force, grade unchanged and resolution unchanged in whole process 6. Deformation measuring range: 0.2%~100%FS 7. Deformation indicating error: within ±0.5% of indicating value 8. Resolution of deformation: 1/200000 of maximum deformation, up to 1/300000 9. Displacement indicating error: within ±0.5% of indicating value 10. Resolution of displacement: 0.025μm (2)Control Parameters 1. Tuning range of force control rate: 0.005~5%FS/s 2. Control accuracy of force control rate: When rate is less than 0.05%FS/s, within ±2% of setting value When rate is no less than 0.05%FS/s, within ±0.5% of setting value 3. Tuning range of resolution rate: 0.005~5%FS/s 4. Control accuracy of resolution rate: When rate is less than 0.05%FS/s, within ±2% of setting value When rate is no less than 0.05%FS/s, within ±0.5% of setting value 5. Tuning range of replacement rate: 0.001~500mm/min
