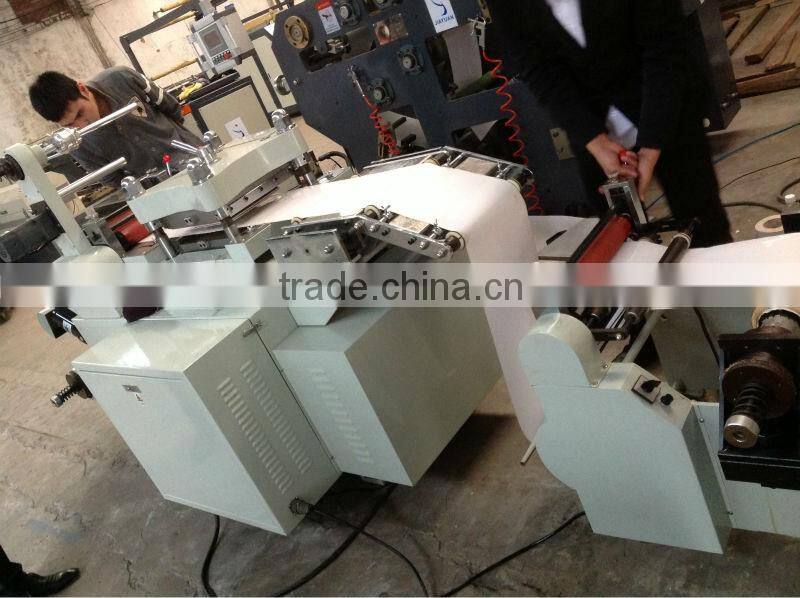

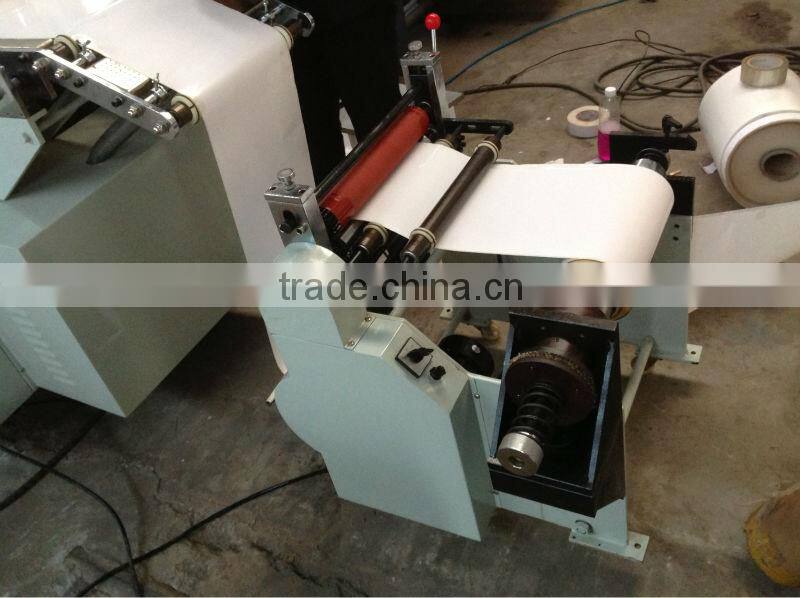

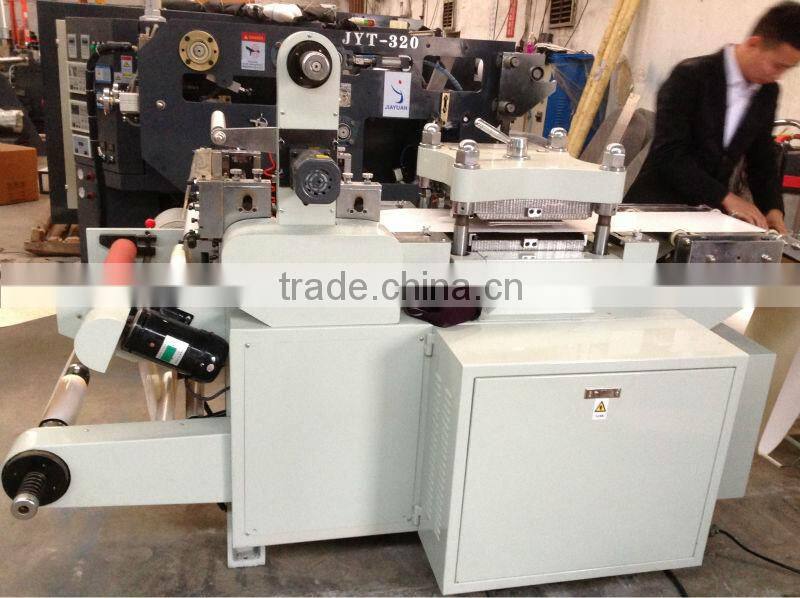

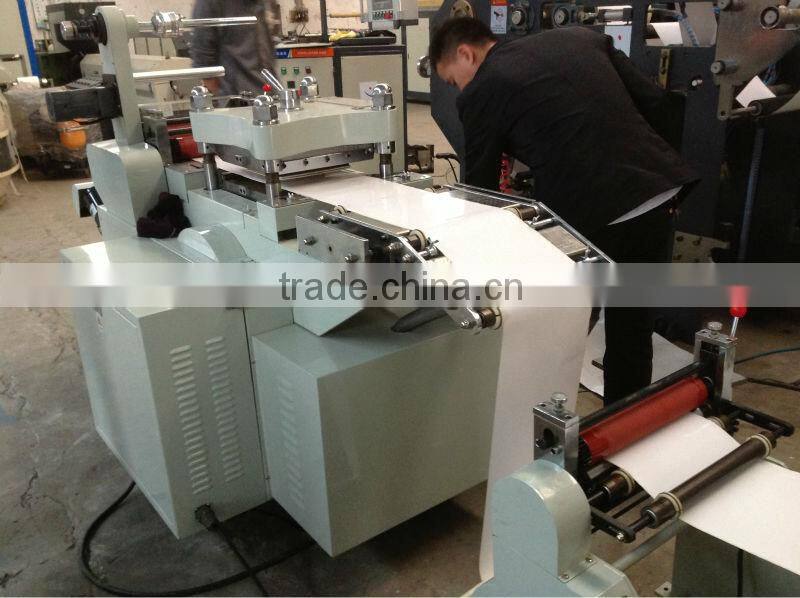

PLC Controlled Full-Automatic Foam Tape/Label Platen Die Cutter
- Ningbo
- T/T Credit Card
You May Like
-
PLC Controlled Full-Automatic Foam Tape/Label Platen Die Cutter
-
Rotary Die Cutting and Slitting Machine
-
Self Adhesive Tape / Label / Trademark Platen Die Cutter / Die Cutting Machine
-
Protective Film Die Cutting Machine, Screen Protector Die Cutter, Screen Films Die Cutting Machine
-
Protective Film Die Cutting Machine, Screen Protector Die Cutter, Screen Films Die Cutting Machine
-
Automatic Roll to Roll JMQ-320N Label/Tradmark Die Cutting Machine/Die Cutter, With Gold Foil/Hot Stamping/Laminating/Punching
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Jiayuan | Model Number | JMQ-320C | |
| Voltage | 220v | Power(W) | 3.5kw | |
| Dimension(L*W*H) | 2800*950*1400mm | Weight | 1500kg | |
| Certification | CE,SGS | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

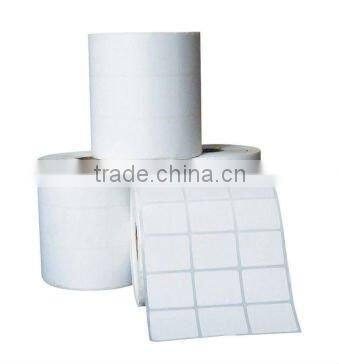

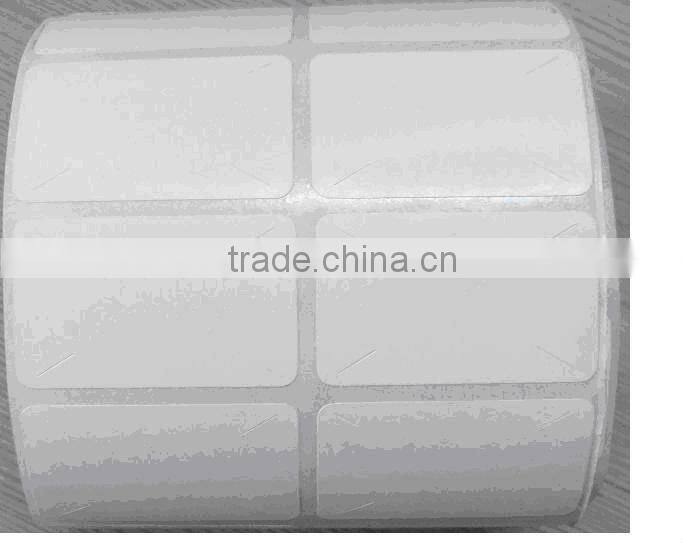

This machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel’s two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Cutting speed | 20-180(time/min) |
Max web width | 320mm |
Max mould cutting width | 300mm |
Max unwind diameter | 500mm |
Max mould cutting length | 290mm |
Overprint Precision | ±0.1mm |
Total power | 2.2KW |
Power voltage | 220V±10% |
Machine weight | About 1500kg |
Overall dimensions(L×W×H) | 2800×950×1400mm |
Optional Device:
Punching System: can be middle or side punching;
Lamination System: can be installed in different postion;
Hot-stamping System.
List of Main Components | |||
Name | Model | Number | Manufacturer |
PLC | Mitsubishi | 1 | Mitsubishi(Japan) |
AC Driver | MS2-115 | 1 | Schneider(France) |
DC Motor Controller | SCR-08 | 2 | ZXTEC(China) |
DC Motor | ZRT110-1 | 2 | Guanda(China) |
Sensor | KT5 | 1 | Sick(Germany) |
Contactor | 3TB4022-OX | 2 | Siemens(Germany) |
Clutch | 53943-1 | 1 | ZXTEC(China) |
Touch Screen | MT506MV | 1 | WeinView(Taiwan) |
Edge Controller | KS-C2G | 2 | Kontec(Taiwan) |
Servomotor | K0708L | 1 | Yaskawa(Japan) |
Three-phase Asynchronous Motor | Y100L1-4 | 1 | Ruiyu(China) |
Die Cutter |
| 1 | BOHLER(Austria) |
Bearing |
| 4 | NSK(Japan) |
