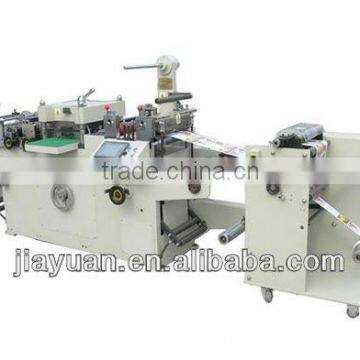

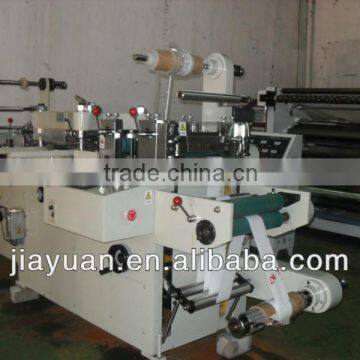

PLC Controlled Full-Automatic Roll-Roll Adhesive Tape / Label Platen Die Cutter / Die Cutting Machine
- 5 Set / Sets per Month
- Ningbo
- T/T Credit Card
You May Like
-
JMQ-320Y Rotary Die Cutter and Slitter With Sick Sensor & Siemens Contactor , CE Approved
-
JMQ-320N Electronic Plattern Die Cutter/Label Die Cutting Machine, CE Approved
-
Full-Automatic Flat Bed Roll to Roll Continuous Self Adhesive Tape/Label/Trademark Platen Die Cutter/Die Cutting Machine
-
JMQ-320Y rotary die cutting and slitting machine with CE certification
-
sticker cutting machine
-
screen protector cutter machine
Product Details
| Condition | New | Type | Die-cutting Machine | |
| Computerized | Yes | Place of Origin | Zhejiang, China | |
| Brand Name | Jiayuan | Model Number | JMQ-320A | |
| Voltage | 220v | Power(W) | 3.5kw | |
| Dimension(L*W*H) | 2800*950*1400mm | Weight | 1500kg | |
| Certification | CE,SGS | Warranty | 1 years | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
This machine die cuts through flat pressing and high precision unit while shifting materials and slitting are controlled through servomotor. The printing Abel’s two-faced and Lengthways the color marks from three optics electric eyes to have exquisite tracking to locate, die cut, collect the discarded waste, slit or auto label in one processing. It is very applicable to die cut free paper adhesive tape, Dacron film trademark and laser anti-false trademark. It is ideal equipment for soft printing machine, continuous thread printing machine. Intaglio printing machine and anti-false trademark die press machine and is also the most efficient equipment for whole wheel rotation quick roll trademark printing machine. It is also applicable to die cutting to form for the Electronic and adhesive tape sectors.
Cutting speed | 20-180(time/min) |
Max web width | 320mm |
Max mould cutting width | 300mm |
Max unwind diameter | 500mm |
Max mould cutting length | 290mm |
Overprint Precision | ±0.1mm |
Total power | 2.2KW |
Power voltage | 220V±10% |
Machine weight | About 1500kg |
Overall dimensions(L×W×H) | 2800×950×1400mm |
Optional Device:
Punching System: can be middle or side punching;
Lamination System: can be installed in different postion;
Hot-stamping System.
List of Main Components | |||
Name | Model | Number | Manufacturer |
PLC | Mitsubishi | 1 | Mitsubishi(Japan) |
AC Driver | MS2-115 | 1 | Schneider(France) |
DC Motor Controller | SCR-08 | 2 | ZXTEC(China) |
DC Motor | ZRT110-1 | 2 | Guanda(China) |
Sensor | KT5 | 1 | Sick(Germany) |
Contactor | 3TB4022-OX | 2 | Siemens(Germany) |
Clutch | 53943-1 | 1 | ZXTEC(China) |
Touch Screen | MT506MV | 1 | WeinView(Taiwan) |
Edge Controller | KS-C2G | 2 | Kontec(Taiwan) |
Servomotor | K0708L | 1 | Yaskawa(Japan) |
Three-phase Asynchronous Motor | Y100L1-4 | 1 | Ruiyu(China) |
Die Cutter |
| 1 | BOHLER(Austria) |
Bearing |
| 4 | NSK(Japan) |
