cnc high definition plasma cutting machine in China

Specifications

cnc high definition plasma cutting machine in China
1.small cutting incision ,clear ,no dregs,avoiding the secondary finishing

cnc high definition plasma cutting machine in China

machine feaatures and application:

1.Using unique dual-beam structure design to ensure good rigidity,low weight and low inertia.

2.Gnatry type structure ,Y axis adopts high precision helical synchronous drive and Xaxis adopts high precision division screw drive,ensure cutitng accuracy of the leading level in domestic.

3.Automatic ignition and height adjustment system,and the cutter head can adjust frely with the materials to ensure the distance between the cutter and materials keep in same level and the arc efficacy is perfect.

4.Matched with other equipments(blistering machine ,gear cutting machine .cnc router machine )to form the asembly line of the advetising letters.which completely replace the traditional hands crafts,Greatly improve the working efficacy.

5.Small cutting incision ,clear,no dregs,avoiding the secondary finishing process.

6.Suitable for iron and aluminum plates ,zinc plates,white iron plates,titanium plates and other metal plates processing.

7.Adopted the USBinterface and computer connected mode of operation,convinient operation.

8.Supprot Wentai ,Beihang Haier ,ARTCAM,Type3 software such as the stardard G code path files also could be read by software conversion  software such as AUTOCAD,DXFformat.

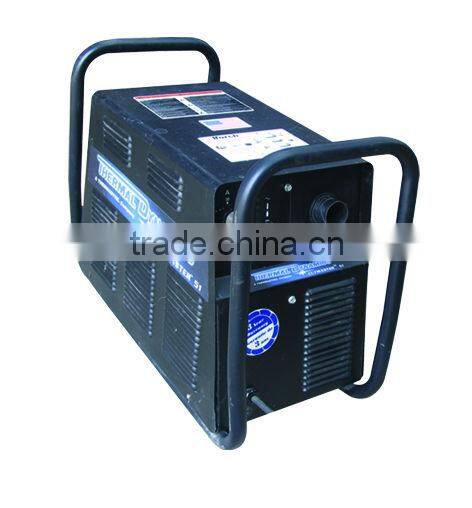

9.Plasma power can choose US made hyperterm or Cutmaster,cutting resulit can reach metal cutting machine's lower limit.



cnc high definition plasma cutting machine in China

Machine data:

Machine size	1850*3600*1300mm
Working area	1300*3000mm
Thickness	0.5-15mm
Cutting speed	0-20000mm/min
Power	8.5KW
Input voltage	3 phrase 380V
Power ferquency	50HZ
Plasma current	60 or 100A
File format	USB or computer
Working type	Non-contact arc

cnc high definition plasma cutting machine in China

Service:

Warranty	One year (Consumption goods are not included).
Technical Support	All Life ( If machine is blocked, please contact us immediately and we  will arrange for technical engineer to solve freely).

Trading Terms:

Payment Terms	T/T   , L/C
Delivery Terms	FOB Shanghai or Nanjing (Only Domestic).
Payment Condition	Payment 70%in advance before shipping to the port (domestic) pay off the balance.
Packing	Wooden case with inner plastic proof
Supply Capacity	200Sets / Month

  cnc high definition plasma cutting machine in China Training for Installation:



A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ/Skype and so on, when you meet some problems of installation, using or adjusting. (Recommended)



B. You can come to our factory for training. We will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility. Training Time: 3~5 days (Recommended)



C. Our engineer will do a door-to-door instruction training service at your local site. We need your help to deal with the visa formality, prepaid traveling expenses and accommodation to us during the business trip and service period before their dispatch. It's better to arrange a translator for both of our engineers during the training period. Training Time:5~7 days

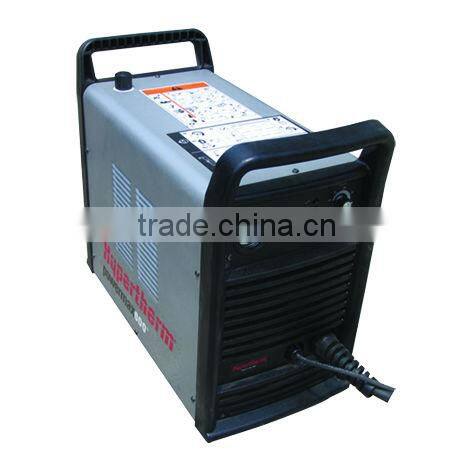

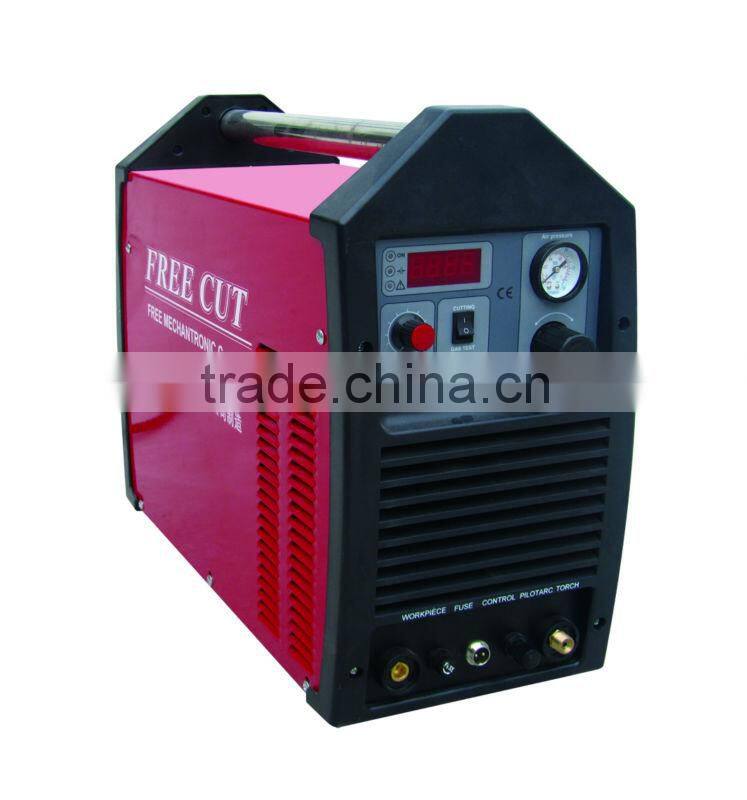

machine components:

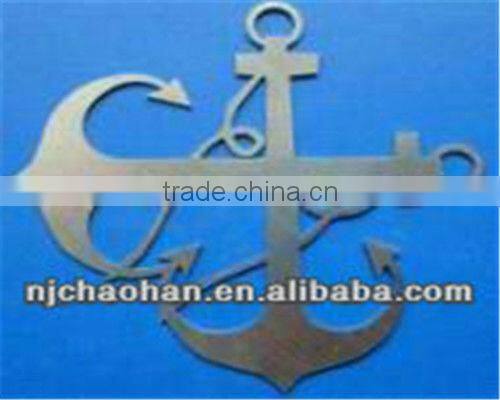

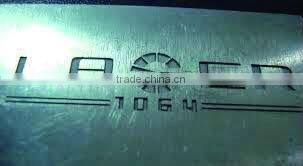

samples:

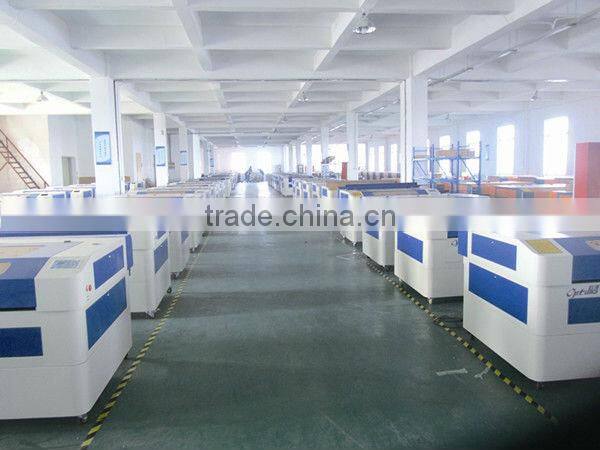

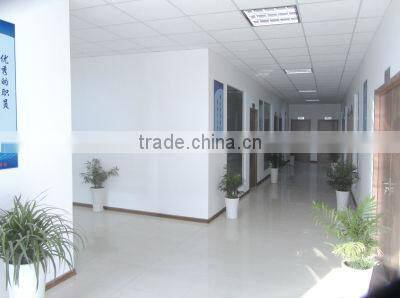

workshop and certifiate:

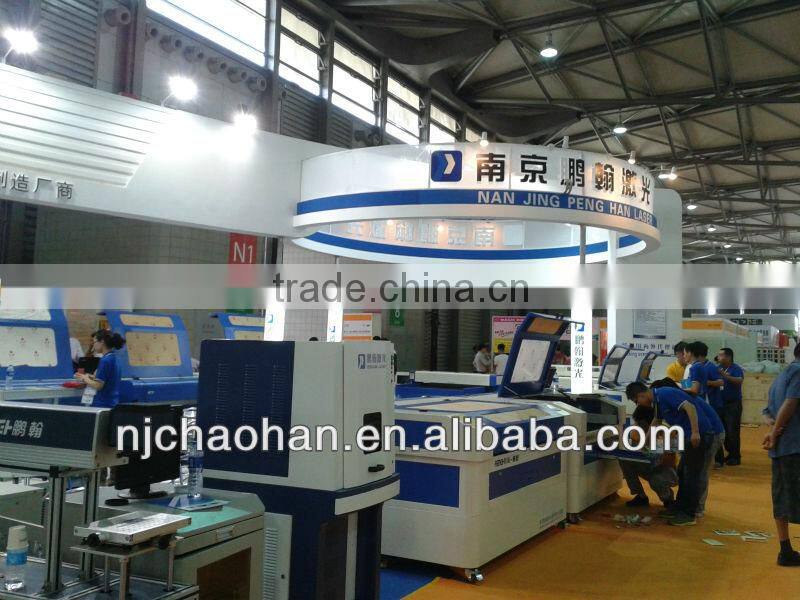

exhibition:

packing:
