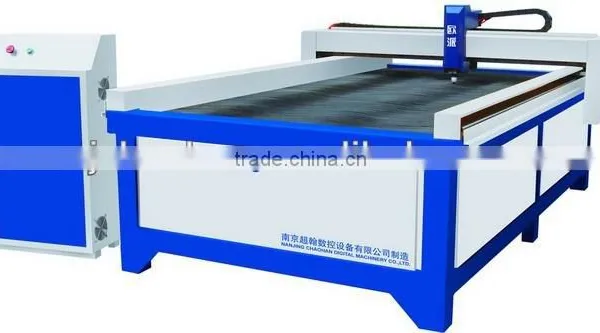

Gantry CNC Plasma Cutting Machine (with Pinion Rac) for Aluminum, Iron Plate

Name: Gantry CNC Plasma Cutting Machine (with Pinion Rac) for Aluminum, Iron Plate
Brand: Optima
SKU: 111565285
Availability: InStock

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Place of Origin:

Jiangsu, China

Brand Name:

Optima

Nanjing Chaohan Digital Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Port in China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Place of Origin Jiangsu, China

Brand Name Optima

Model Number 1330S

Voltage 220v

Rated Power 60HZ

Dimension(L*W*H) 1850*3000*1300mm

Weight 1500KG

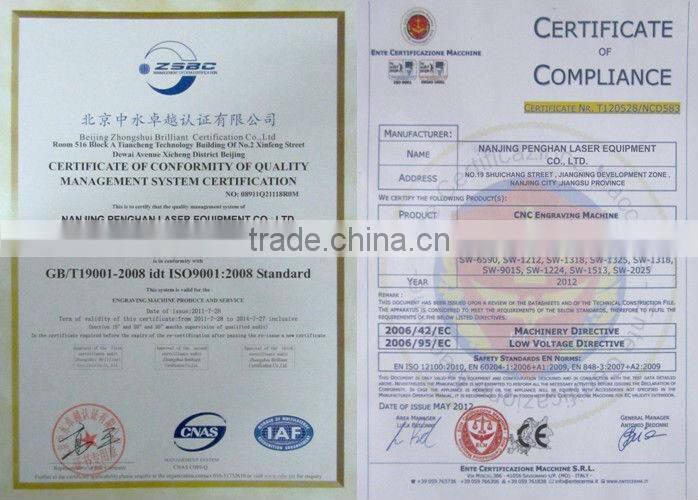

Certification CE, SGS,ISO

Warranty 1 Year

After-sales Service Provided Overseas service center available

Specifications

This Plasma Cutter Machine Suitable for Iron , aluminum ,zinc and other metal materials .

Parameter:

Model	Optima1325	Optima1330
Processing materials	Iron, Aluminum, Stainless Steel, Copper, Titanium, Nickel, etc.
Machine size	1850mm3000mm1300mm	1850mm3600mm1300mm
Processing area	1300mm*2500mm	1300mm*3000mm²
Processing thickness	(60A) 0.5-5mm (0.5-10mm with 100A is available)
Cutting speed	0-8m/min
Air-way speed	0-50m/min
Power	8.5KW or 9kw
Input voltage	3-phase 380V
Power frequency	50HZ
Arc means	Non-contact Arc
Files Transfer	USB Interface and U disk Interfaces
Operation software	NC Studio (english version, original)
Operation method	DSP wired remote control
Graphics Software	Type 3 (english version, original)
Supported files forms	PLT, NC, etc.
Cooling method	Water cooling system
Packing	Wooden case with tray
Warranty	Cutting Torch for 6 months, all other parts for 12 months.

Functions and Applications:

Structure	Gantry structure and dual-bean structure, with light weight, low inertia, but high precision;
Feature	Automatic ignition and height adjustment system, flexible cutter head

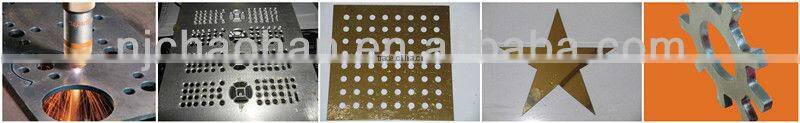

Merits	Small cutting incision, clear, no dregs, avoiding the secondary finishing process.
Applications	Iron and aluminum plates, zinc plate, white iron plates, titanium plates and other metal plates.

Service:

Warranty	Laser tube: 6 month; other parts: 1 year
Technical Support	All Life

Trading Terms:

Payment Terms	T/T or L/C
Delivery Terms	FOB Shanghai, China or other terms
Payment Condition	1. By T/T, 20% as deposit and the balance should be paid off before shipment; or 2. L/C covering 100% amount of the contract reaching us 21 days before shipment.

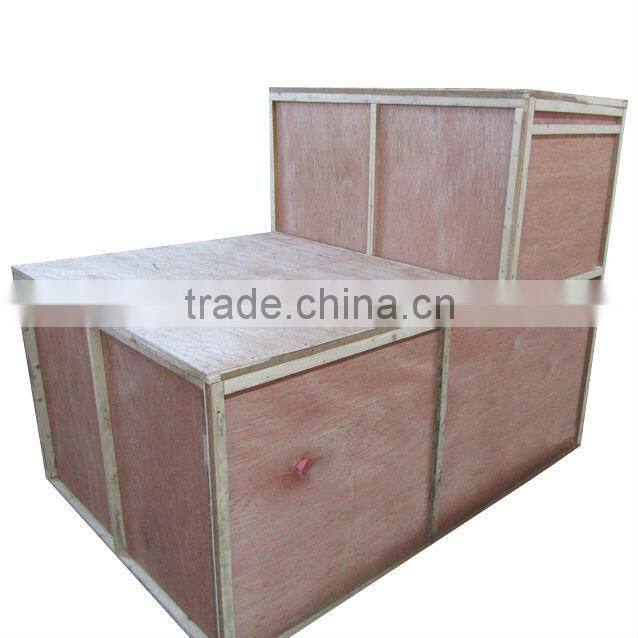

Packing	Inside cling film, and a wooden case with wooden tray.
