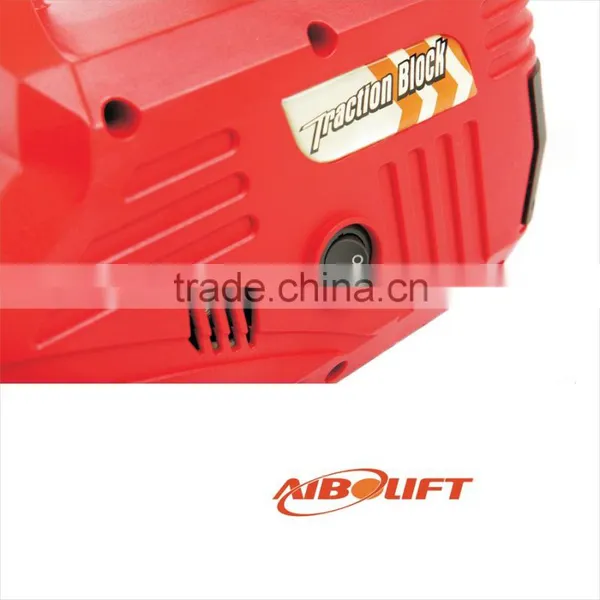

cable pulling winch machine
It is a powerful, lightweight, easy-to-use electric tool, equipped with a strong motor and that allows you to
move heavy items into place with minimum effort. It will help get the job done easier, faster, and with lessmanual labor.
1.Model Number: |
ATQ-01 |
2.Power Source: |
Electric 1200W |
3.Voltage: |
AC 100-240V/50/60HZ |
4.Lifting Height: |
4.6M |
5.Wire rope dia: |
5.8mm |
6.Speed: |
5m/min full speed trigger switch allows for variable speed mulit-applications. |
7.Load Capacity: |
450kg / 1000lbs |
8. Net weight: |
7kg |
9.Motor: |
Series motor |
10. Protection: |
Overload protection and overheat protection |
11.Certification: |
CE and ISO |
12.Color: |
Blue,Yellow,Red or According to Customer Request |
13.Logo: |
AiboLift |
14.OEM: |
Available |
15.MOQ: |
216sets Small trial order is acceptable |
16.Production Capacity: |
5000sets/Month |
17.Sample Lead time: |
5days for regular item |
18.Packing: |
Color Box or Standard Export Cartons |
19.Delivery: |
By express courier / by air / by sea |
20.Payment: |
T/T |
FEATURES:
— Mini electric winch providing precision power for all pulling, hauling and drag away jobs.
— 450KG pull rating powered via a 220V AC.
— 5.8mm/4.6m Aircraft grade galvanized wire rope.

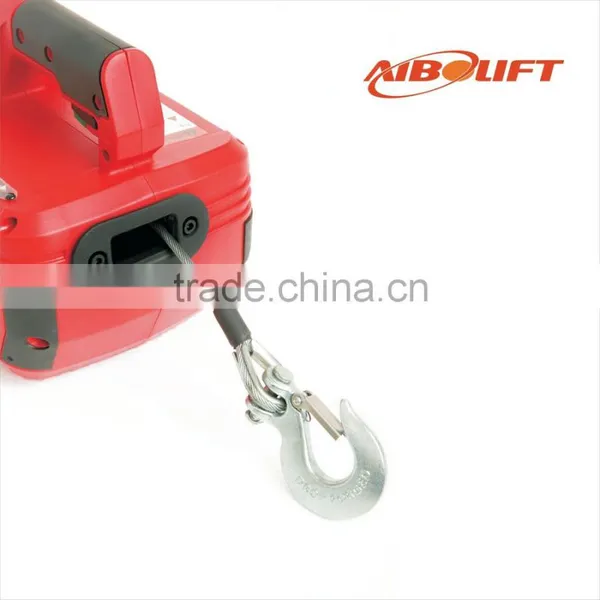

— Build-in industrial grade safety hook and hawse fairlead at wire rope end of tool and swiveling
anchor hook at its base.
— Touch the switch by manual button, variable speed for multi-applications.
— Electronic load limiter with LED indicator protects the tool from overload.
— Self-locking gear train with dynamic braking.
Experienced but Keep Original

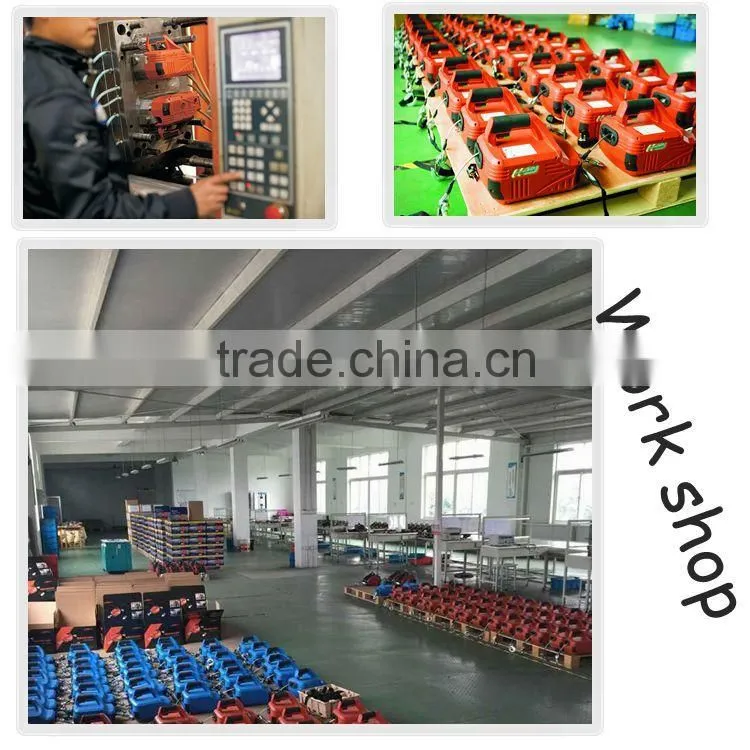

Over 23 years in hardware manufacture and continue developing new styles in electric hoist and winch.
OEM is available due to skilled engineers and trained staffs.
Cost Down, Quality Up
Independently manufacture and export by us that will help you cost saving and more competitive in the market.
Only suppliers with good fame will we select to cooperate from raw material to packing.
Mature management ensures a smooth production.
Testing systems are established to ensure finished product are in good quality, including hoisting test, pulling test, high voltage resistance test and earth resistance test.
These build up our confidence.
Service within 24 hours
We promise to feedback within 24 hours from Monday to Saturday.
Pulling, Lifting, Energy Saving! Easy you take, Safety we care!
Q: What is our factory product range?
A: Mini electric wire rope hoist, suspending electric hoist, wire rope winch, vertical lifting AC winch remote control etc.
Q: What information should I provide if I want to order the products?
A:
1) Product information: Quantity, Model No. , Specification (capacity, lifting height, voltage, size, material, color and packing requirements),
2) Delivery time required.
3) Shipping information: Company name, Address, Phone number, Destination seaport/air port.
4) Forwarder's contact details if there is any in China.
Q: How about your payment terms?
A: For trial sample order, 100% advance, via Western Union is preferred.
For bulk order, 30% deposit, with the balance before delivery, via TT.
Q: Can I use our own logo?
A:Yes, we can produce by using your own logo.
Q: What’s the sample policy?
A: We can send you 1pc of sample for your test, but you need to pay for the sample fee and delivery expenses, as it's our company's rule. Pls contact us for the sample details.
