Specifications
Model ML24 straw bending machineStraw dia.: 4.8mm or 5.8mm
Straw length: 190-260mm
Speed of production:400pcs/min

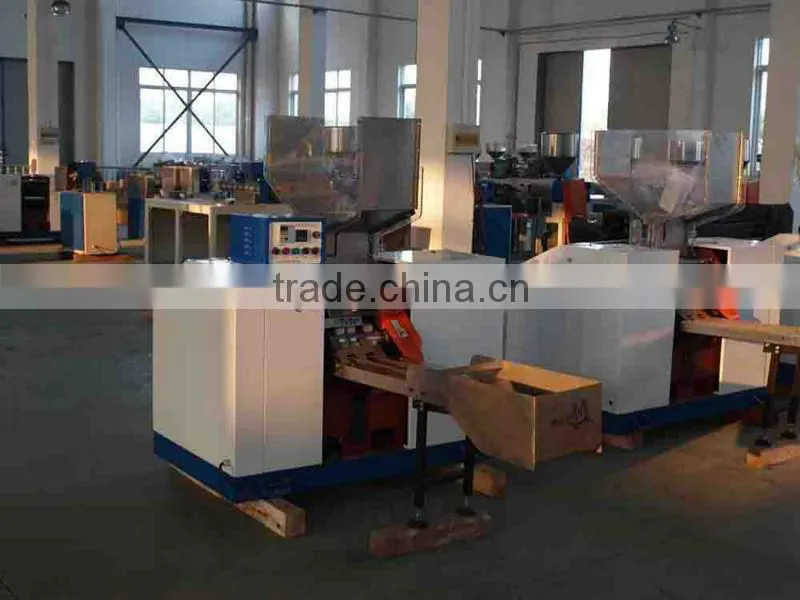

ML24 STRAW BENDING MACHINE
DESCRIPTION:

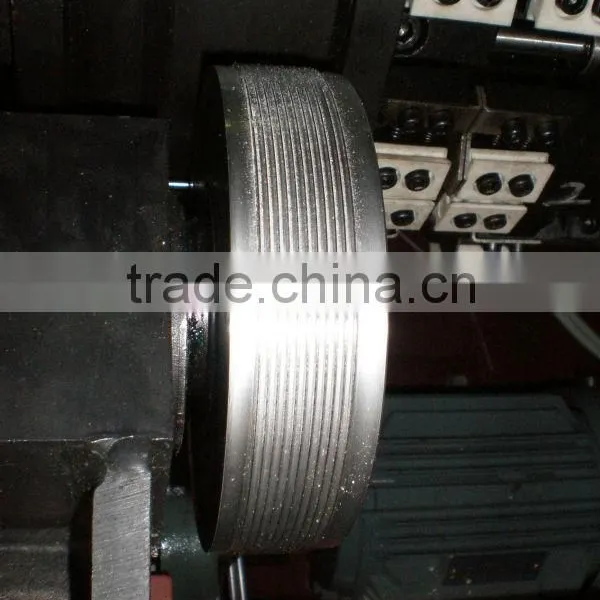

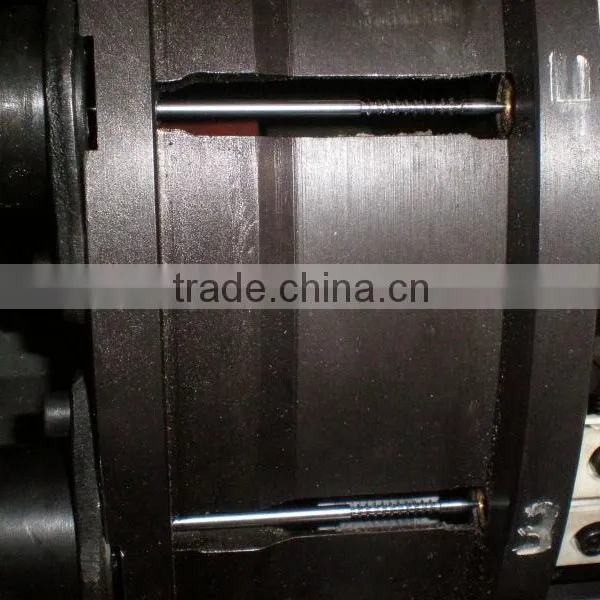

Model ML24 straw bending machine is a special machine of making bendable drinking straws. The straight straws supplied in the hopper at the top of machine ,passes through 18 sets of conveyor and 18 sets of needle and 1 sets of shaping wheel, bended to flexible straw and delivered to output conveyor automatically.
APPLICATIONS OF ML24 STRAW BENDING MACHINE
Model ML24 drinking straw bending machine is used for making bendable flexible straws for tetra-pack bricks or other juice drinks.
TECHNICAL FEATURE OF ML24 STRAW BENDING MACHINE:
- High efficiency and high production rate,
- Automatic product counting,
- Automatic stop in the event of straw jamming,
- Hopper in stainless steel is set at conveyor, one man can operate two machines,
- Special repairing safety button ,
SPECIFICATIONS OF ML24 STRAW BENDING MACHINE :
Model |
ML24-5 |
ML24-6 |
||
Capability |
350~400pcs/min |
|||
Main motor |
1.5kW (VFD) |
|||
Automatic emergency stop equipment |
1set |
|||
Automatic counter |
1set |
|||
conveyor |
1set |
|||
Specifications of straw |
Inside Diameter |
Φ4.8mm |
Φ5.8mm |
|
Length of straight straw |
190~260 mm |
190~260 mm |
||
Length of flexible straw |
175~245 mm |
175~245 mm |
||
Thickness of straw |
0.16±0.02 mm |
0.16±0.02 mm |
||
Top section length |
30~50 mm |
|||
Length of flexible part |
8~11 mm |
|||
Quantity of forming shaft |
18sets |
|||
Machine weight |
1400KG |
|||
Dimension |
1400mm(W)×2000mm (L) |
|||
Other specifications are customizable | ||||
How to order:
We are a straw machinery manufacturer. we have machines for various specifications of straws.
we can provide you one station service for all the machines related with drinking straws.
It can save your purchasing cost as well as time.
So contact us for further information.
for the machines ordered via email, the delivery time will be 30 days after receiving the deposite (30% of the total value).
when the machine is finished, we will send you the commissioning vedio and picture for you view.
after receiving your balance payment, we will ship the machine out.
and within one week, all the documents which is necessary for you to clear the customs will be sent to you.
once you buy our machine, you will enjoy the whole life-time service for the machine.
