ML12A DRINKING STRAW CO-EXTRUDER
DESCRIPTION

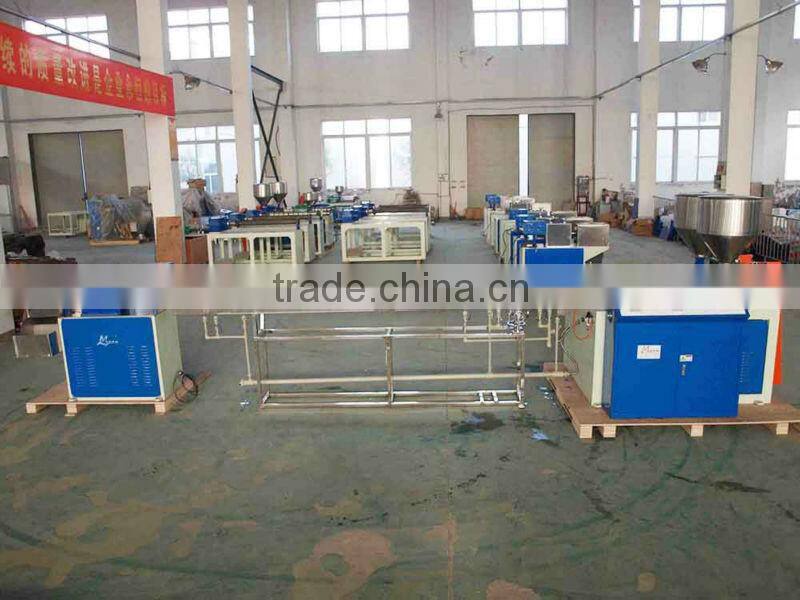

Model ML12A Drinking Straw Co-extruder is a tube extrusion line, composed of two-color co-extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor, The machine can produce all kinds size of two-color drinking strawspiral strip straw, all the machines controls base with the control elements ergonomically adapted to permit easy operation.
APPLICATIONS OF ML12A DRINKING STRAW CO-EXTRUDER:
ML12A Drinking Straw Co-extruder is widely used in food industry like drinking straw, candy stick, coffee stick ect. and many other industry like pen refill, medical pipe, small diameter pipe ect..
TECHNICAL FEATURE OF ML12A DRINKING STRAW CO-EXTRUDER:
1. The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2. Water bath in stainless steel can be adjusted in three planes ,
3. The haul-off unit can be belt or wheel.
4. Fitted with single rotary cutter.
5. Conveyor device(you may select if you want)
SPECIFICATIONS
Model |
ML12A |
|
Parameter of main screw |
φ50mm(diameter) ×2 |
|
Parameter of sub- screw |
0 |
|
Capability |
30~50Kg/h |
|
|
Power supply |
Main motor |
11kW×2 380v 50Hz (VFD) |
Haul-off motor |
0.37kW×2(VFD) |
|
Cutting motor |
0.75kW×1(VFD) |
|
ntroller |
11zone |
|
Length of cooling container |
3400mm/6400mm |
|
Specifications |
diameterφ3~15mm thickness0.10~2.0mm |
|
Machine weight |
3000KG |
|
Dimension |
1200mm(W)×9000mm(L) |
|
Other specifications are customizable | ||
