Specifications

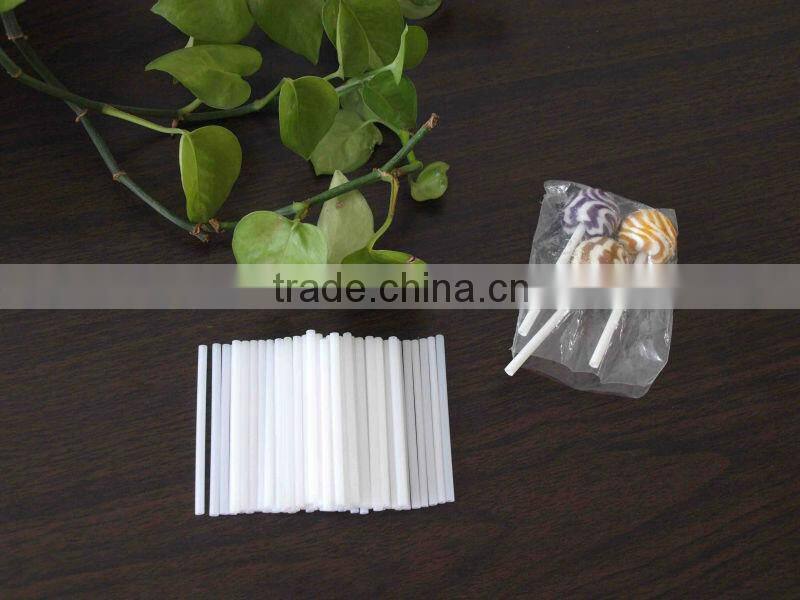

Model ML11 is a lollipop stick extrusion line to produce all kinds of lollipop stick with one notch and two notches.DESCRIPTION

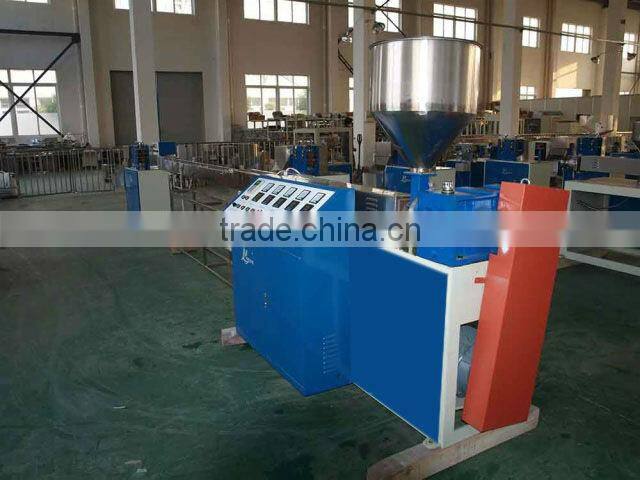

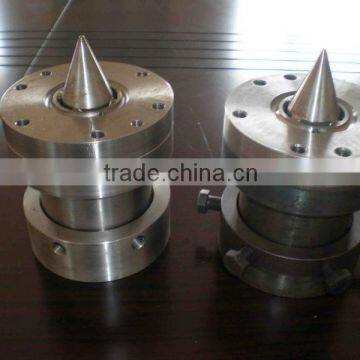

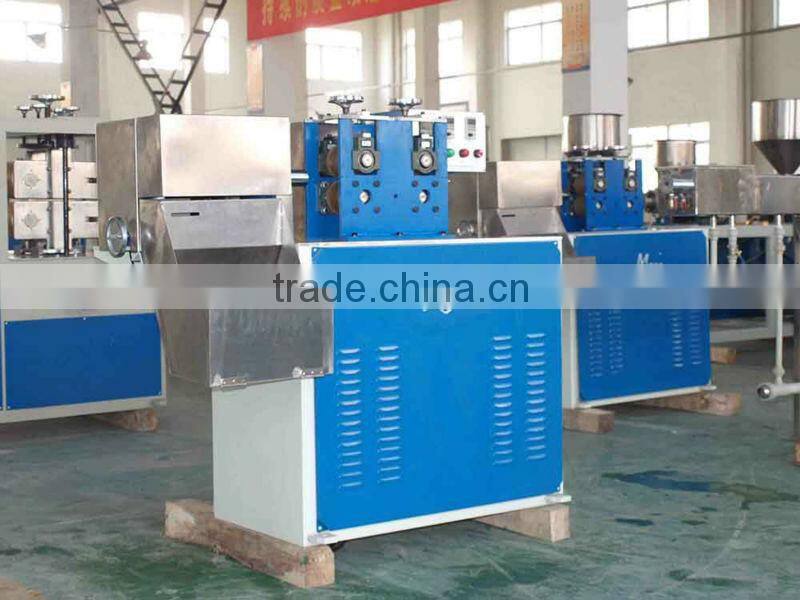

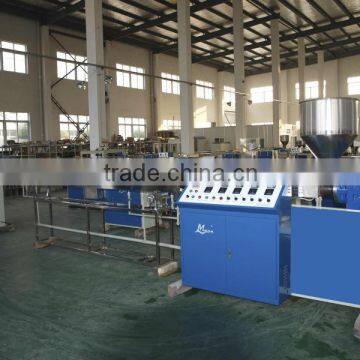

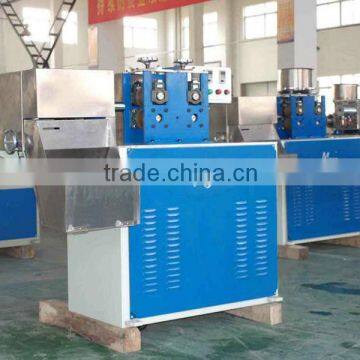

Model ML11 is a lollipop stick extrusion line, composed of extruder and die, size setting and water cooling unit, haul-off unit, rotary cutter unit,The machines can produce all kinds of lollipop stick with one notch and two notches medical pipe,
SPECIFICATIONS
Model |
ML11 |
|
Feature |
Material |
PP |
Color |
1 |
|
Straw diameter |
Φ3.0 -Φ4.0 mm |
|
thickness |
0.35~0.6 mm |
|
Straw length |
65 – 100 mm |
|
Capability |
700 – 1200 pcs/min |
|
Extruding output range |
20 – 35 kgs/hr |
|
Extruder |
Screw diameter |
Φ50 mm |
Screw L/D |
28 : 1 |
|
Main driving motor |
11 Kw |
|
Automatic thermo-controller |
5 sets |
|
Heating power |
8.1 kw |
|
Water tank |
Forming device |
1 set |
Vacuum Pump motor |
1.1 kw(choose) |
|
Water storage tank |
6400 mm |
|
Base frame material |
Steel stainless |
|
Blow dry device |
1 set |
|
Take up & Cutting Unit |
Take up unit |
1 set |
motor |
0.75kW×1(VFD) |
|
Cutting knife unit |
1 (Two end cut together, with slot cutting blade) |
|
motor |
1. 5kW×1(VFD) |
|
Digital counter |
1 set |
|
Others |
Air compressor |
1.5kw(choose) |
Dimension LxWxH |
11×1×1.6 m |
|
Machine weight |
1800 kgs |
|
