Help CenterStraw Machine--three Colours Co-extrude Extrusion Line
Related Products
Specifications
raw material:PPstraw diameter:3~15mm

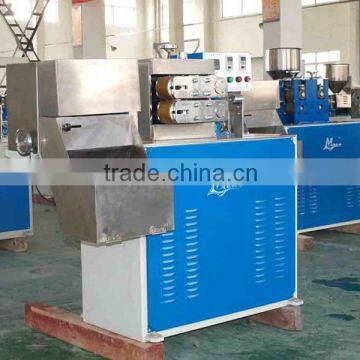

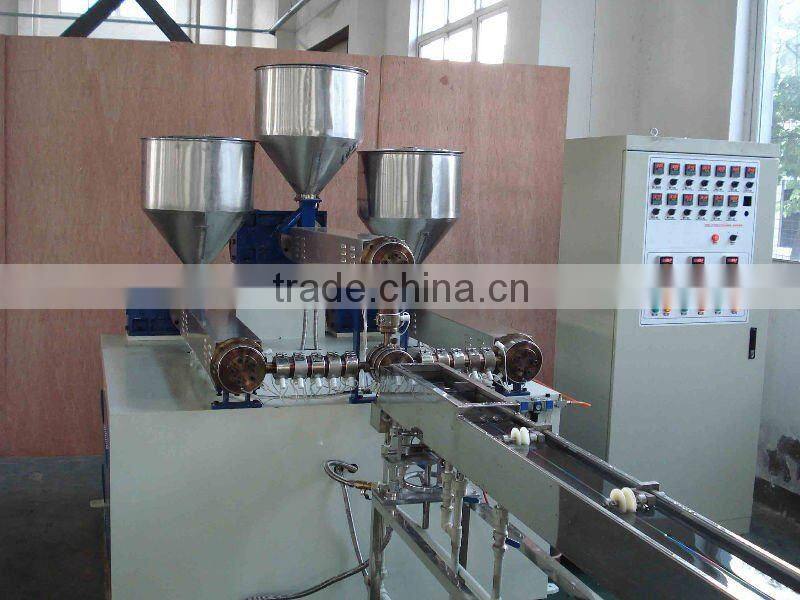

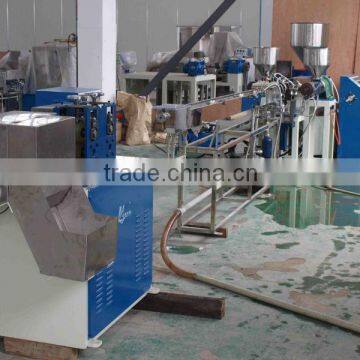

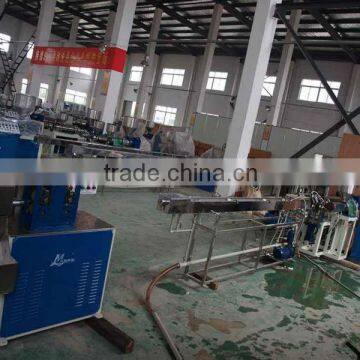

ML13A THREE-COLOR CO-EXTRUDE DRINKING STRAW EXTRUSION
DESCRIPTION
Model ML13A is a straw extrusion line, composed of three-color co-extruder machine and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor, The machine can produce all kinds size of three-color drinking straw, spiral strip straw, all the machines controls base with the control elements ergonomically adapted to permit easy operation.
TECHNICAL FEATURE
1. The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,
2. Water bath in stainless steel can be adjusted in three planes ,
3. The haul-off unit can be belt.
4. Fitted with single rotary cutter.
5. Conveyor device(you may select if you want)
SPECIFICATIONS
Model |
ML13A |
|
Parameter of main screw |
φ50mm(diameter) ×3 |
|
Parameter of sub- screw |
0 |
|
Capability |
30~60Kg/h |
|
|
Power supply |
Main motor |
11kW×3 380v 50Hz (VFD) |
Haul-off motor |
0.37kW×2(VFD) |
|
Cutting motor |
0.75kW×1(VFD) |
|

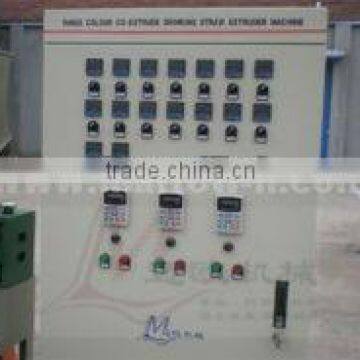

ntroller |
16zone |
|
Heating power |
|
|
Length of cooling container |
3400mm/6400mm |
|
Specifications |
diameterφ3~15mm thickness0.10~0.3mm |
|
Machine weight |
3000KG |
|
Dimension |
1600mm(W)×9000mm(L) |
|
Other specifications are customizable | ||
