Taizhou Huangyan JUNENG machine&mould Co.,LTD

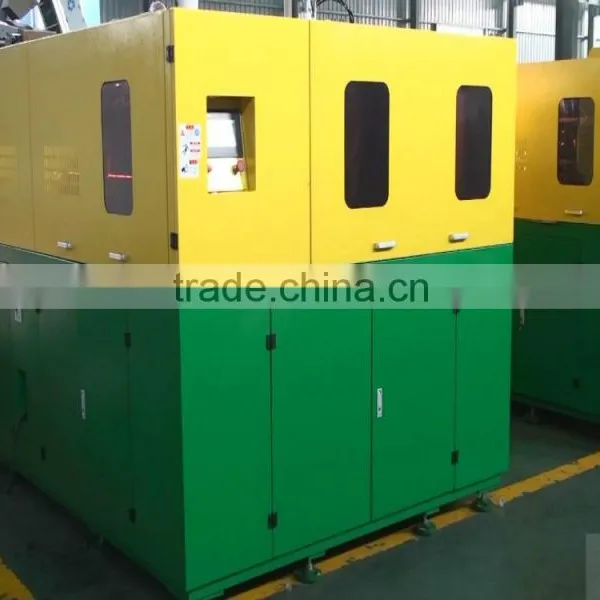

PET blow molding machine
Products Feature:
- High safety. high speed with high efficiency.
- manual saving, one man is enough for operation the machine.
- Stable performing with easy maintaining.
- Imported PLC controlling and man-machine interface computer.
- japan Omron inspection sensor.
- Adopt the new type double bend arm and the four rod-clamping structure(won the patent): Cross direction; Middle mould board is move parallel; the distance between two mold board is adjusted by the chain wheel. Thus, the clamping force is very strong.
- Power saving design that can increase your profits.
- Segregate type air controlling system, which is designed for avoiding waste pollution.
General Specifications:
JN-4000 Specifications | |||
|
Model |
Unit |
JN-4000 |
Clamping System |
Number of cavity |
cavities |
4 |
calmping unit |
KG |
42000 |
|
mold stroke |
mm |
90 |
|
stretch stroke |
mm |
250 |
|
Bottom stroke |
mm |
30 |
|
Cavity pitch |
mm |
76.2 |
|
heating pitch |
mm |
76.2 |
|
Number of holder |
PCS |
86 |
|
Container |
ntainer volume |
ltr |
0.6 |
Max. neck diameter |
mm |
38 |
|
Max.prefrom height |
mm |
140 |
|
ntainer diameter |
mm |
110 |
|
ntainer height |
mm |
250 |
|
theoretical output |
B.P.H |
4000 |
|
|
Electrical System |
heating oven |
UNITS |
8*7 |
box*channel | |||
Number of lamp |
pcs |
56 |
|
heating power |
KW |
67.2 |
|
installed power |
KW |
75 |
|
voltage |
Voltage |
220v/380V/3phase |
|
|
Air System |
operating pressure |
kg/cm2 |
7 |
blowing pressure |
mpa |
3.5 |
|
high pressure air consuming |
L/min |
4200 |
|
power |
KW |
44 |
|
|
temperature |
°C |
10-15 |
pressure |
Mpa |
0.3-0.5 |
|
flow rate |
L/min |
80 |
|
heating power |
HP |
6 |
|
Machine |
machine dimension |
M |
4.8*2.2*2.2 |
machine weight |
KG |
6000 |
|

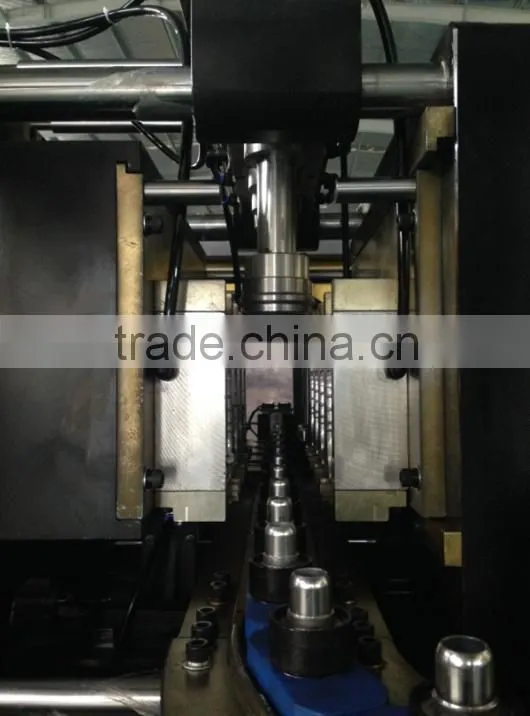

Production Process:

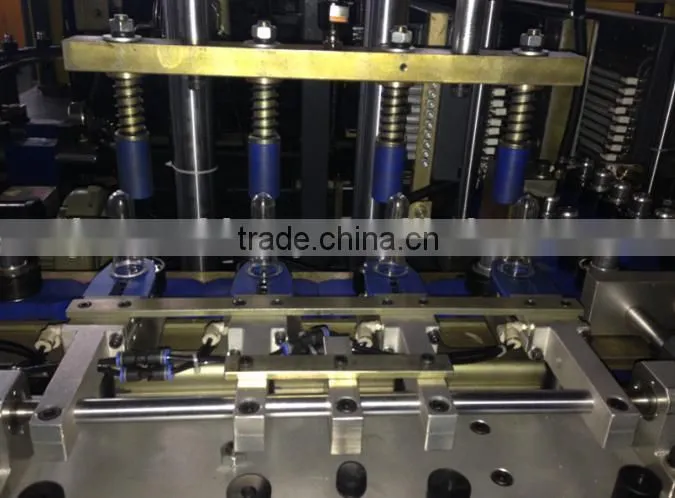

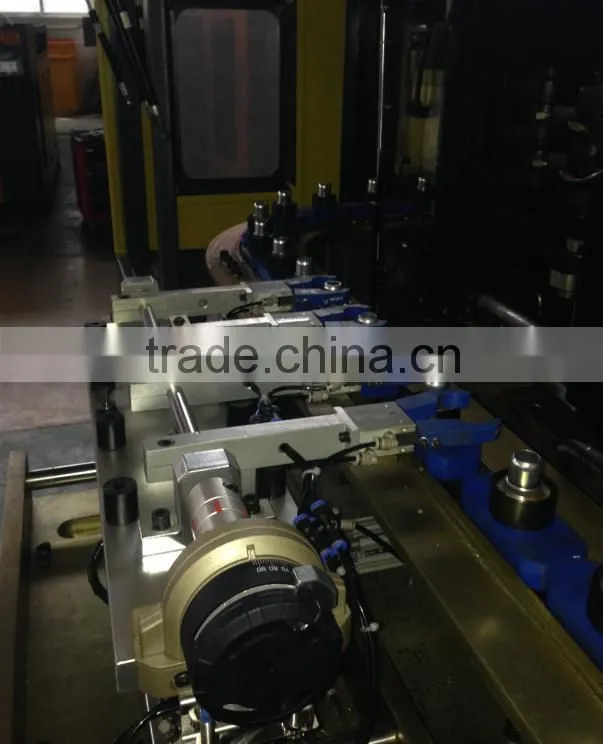

Take bottle in :

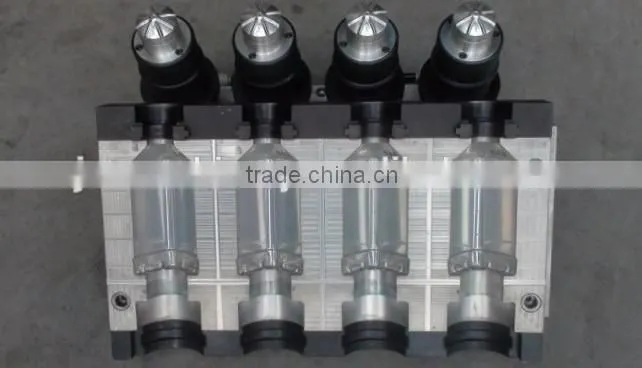

Mould:
Our customers:
Contact us:
