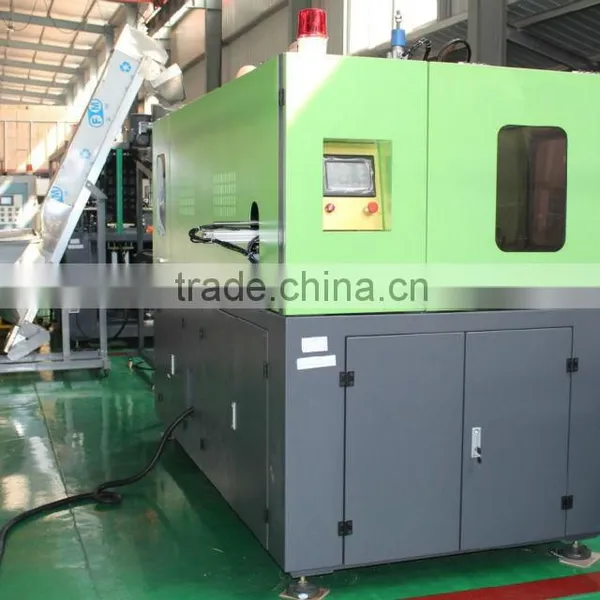

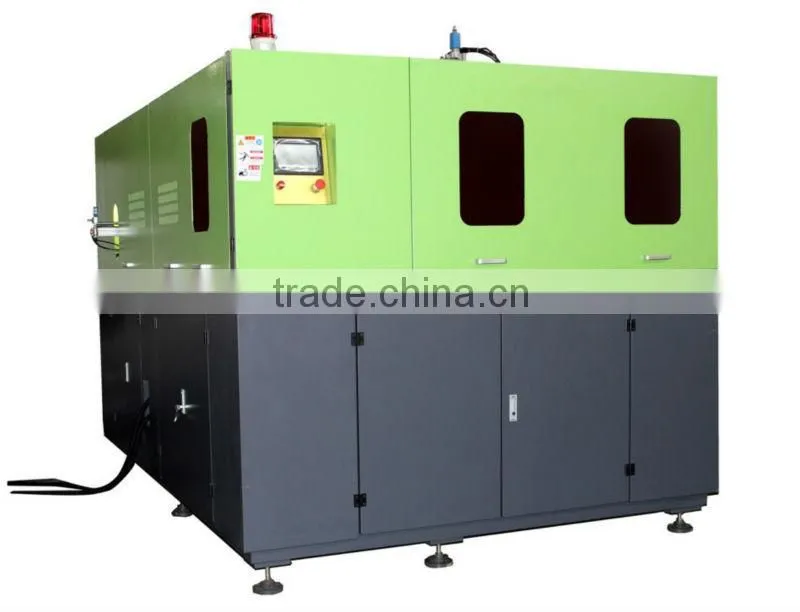

MACHINE PICTURE

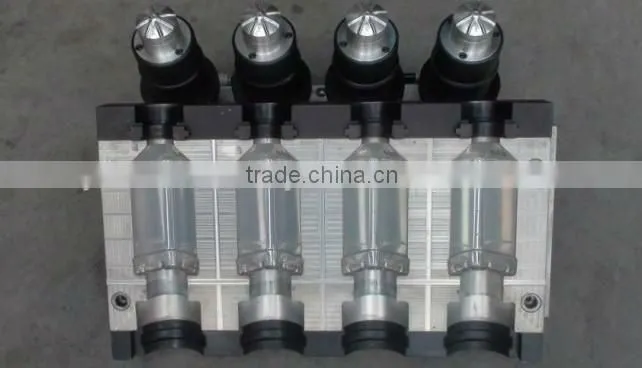

THE MOULD
MACHINES CONNECTION
Description:
- PET machines produce the widest range of packaging products available on the market.
- we offers PET & PP bottling turnkey proposal
- Our services range from pre-sale consultation to a complete plant setup including machinery and peripheral equipment planning. From perform design to blow molding, we offer complete service.
Applications:
Food, oil, carbonated drink, mineral water, juice, alcohol and cosmetics bottles, tennis ball jar and high-temperature-resistant bottles.
Characteristic:
- Utilization of automatic central lubrication.
- Compact space design for convenience of mold-conversion, repairing, and maintenance.
- Minimized transfer pitch for increasing heating efficiency and saving energy.
- Swift exchange design for preform mandrels.
- Optimized air flow in the oven for stable heating process.
- Easy to adjust, exchange and access heating oven; Protection for preform thread against heating.
- Intact rotating robot grip with linear guider for right access, rapid motion; reducing adjustment and maintenance time.
- Electronic inspector for ejecting faulty preform and bottles.
- Fast, safe, and accurate cam-controlled blowing wheel for providing the best bottles.
- Precise control of blowing technique to produce less-weighted bottle.
- Smart design for quick conversion of blow mold.
- Through finite element analysis to optimize modular design for reducing machine wearing and moving inertia.
- Operating machine through touch panel; program protected by code lock.

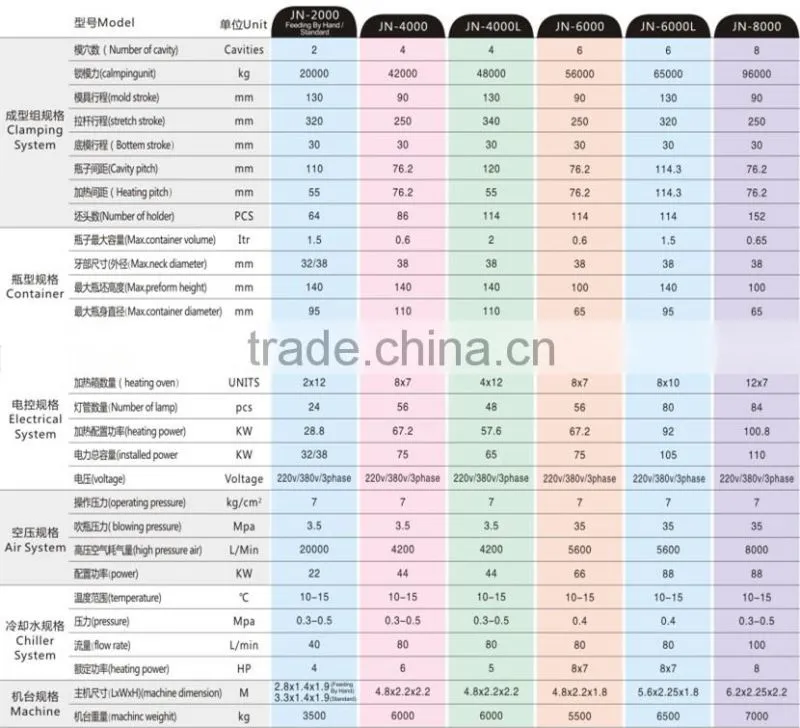

PRODUCT PARAMETER
Note1:The high pressure air exhausted after blowing is recovered,which can be redused as a low pressure,
Note2:Actual production depends on customers' bottle shape ,preform design and quality,
Note3:The specified mold heating consumption of hot-filling machine is 12.5KW;however,the actual power consumption depends on the actusl production.
Spare parts list
Components |
Original Production Factory |
Plc Programmable controller |
SIEMENS,GERMANY |
Touch Screen |
SIEMENS,GERMANY |
Air Cylinder |
SMC,JAPAN |
Air Valve |
TPC,KOREAN |
Filter |
SMC,JAPAN |
Photoelectric Switch |
OMRON,JAPAN |
Contactor |
Schneider,France |
Transducer |
DETLA,TAIWAN |
Power Supplier |
Meanwell,Taiwan |
Main Servo motor |
Mitsubishi 1.5kw,JAPAN |
Feeding Servo Motor |
Mitsubishi 0.4kw,JAPAN |

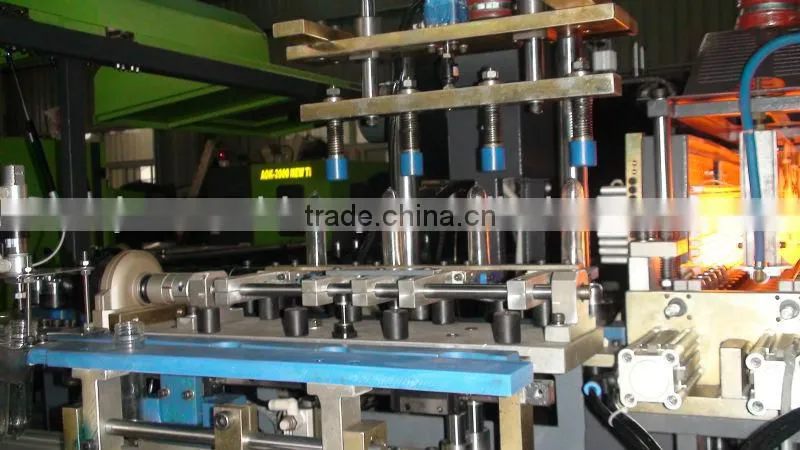

A:preform infeed system
A: preform infeed system
- The Conveyor put the preform from the barrel to the entire machine, then the preform are automatic arranged in order for feeding at a single way
- Adopt FESTO rodless cylinder to divide into blank movement and positioning
- The gripper picks preforms and place them on the transfer system
- The way will avoid preforms jamming,causing machine down or preform waste
B: Transfer system
B:Transfer system
The traditional linear machine is normal transmitted through a chain or air cylinder, when cylinder drive, the disadvantages are low speed and low efficiency, when chain drive,it will create large noise, AOK series composed of the casting nylon slider with a servo motor drive,providing fast and which can meet environmental requirements
C: The heating system
C The heating system
the preform are fed into the heating system in a parallel , together with minimum center between two preforms , in order to save power consumption A preform will use a rotation mode heat side blowing cold air, to ensure that the preform heating uniform
