Gravity mineral processing / ore concentrator laboratory shaking table
- 100 Set / Sets per Month
- xiamen shenzhen
- T/T L/C D/P D/A Credit Card
- Hot sale best price metal ore crusher,metal ore crusher with CE
- Hot Selling jaw stone crusher jaw grinder and crusher manufacturer
- Hot Selling jaw stone crusher jaw crusher capacity 110-250tons congo
- Hot sale New type sand making plant in india for sale with low price
- High quality crushed stone processing and pulverized mineral processing
- Zenith construction sand making plant,construction sand making plant price
Product Details
Condition: | New | Type: | Other, Gravity Separator, Small steel channel | Production Capacity: | 98% |
Place of Origin: | Jiangxi, China | Brand Name: | Ming Xin | Model Number: | MX |
Voltage: | 220V/380V | Power(W): | 0.55kw | Dimension(L*W*H): | 1730*500*800mm |
Weight: | 1100kg | Certification: | ISO9001:2008 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

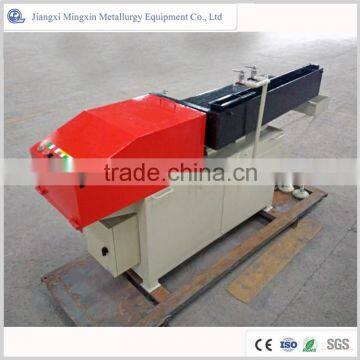

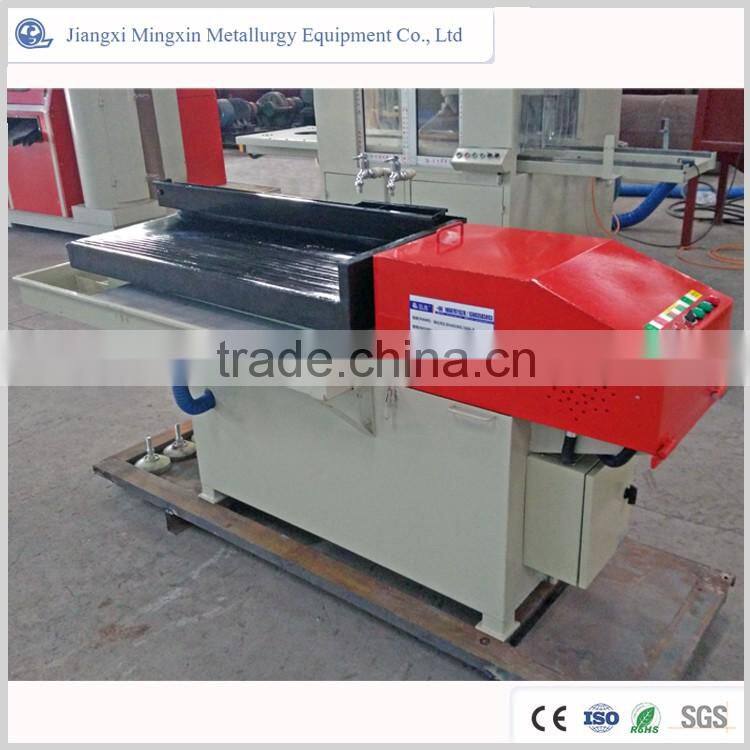

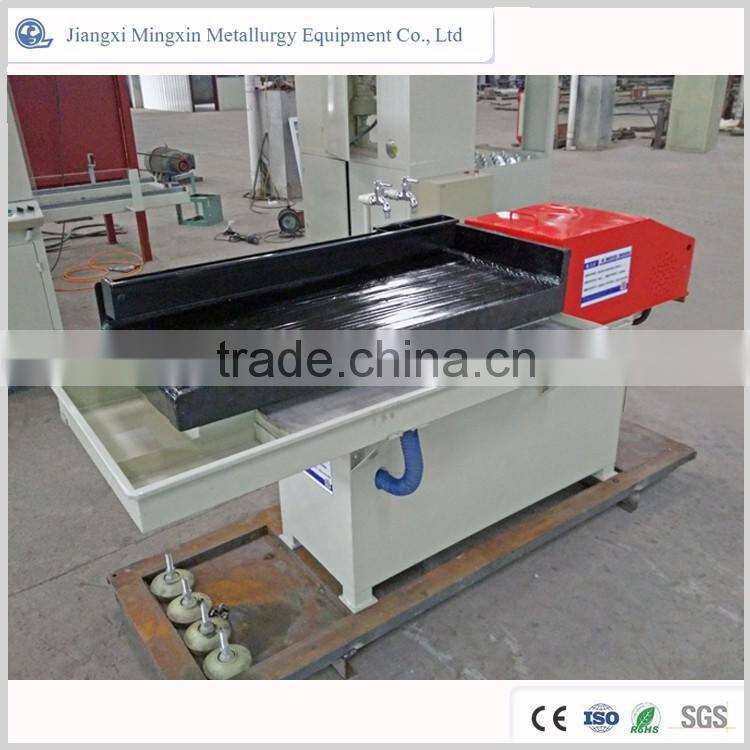

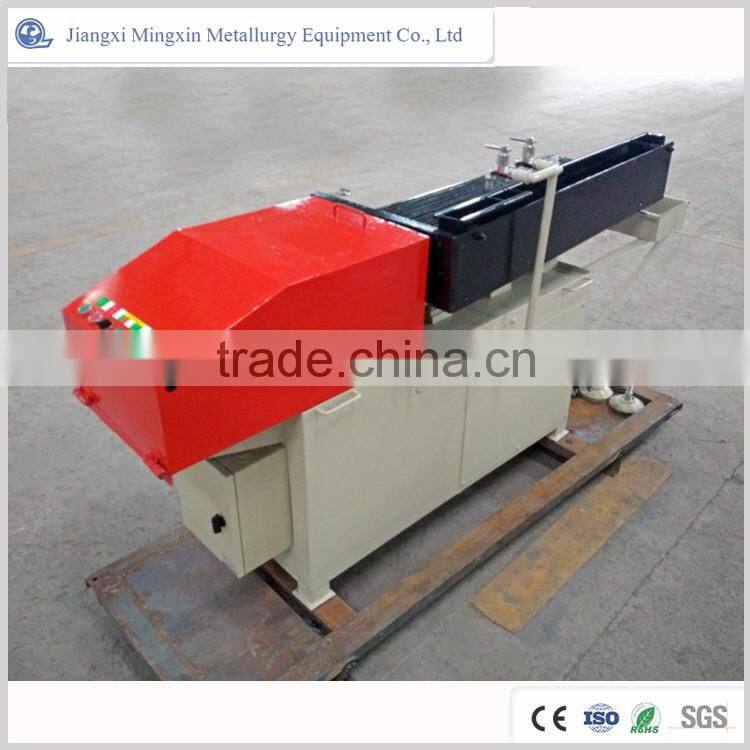

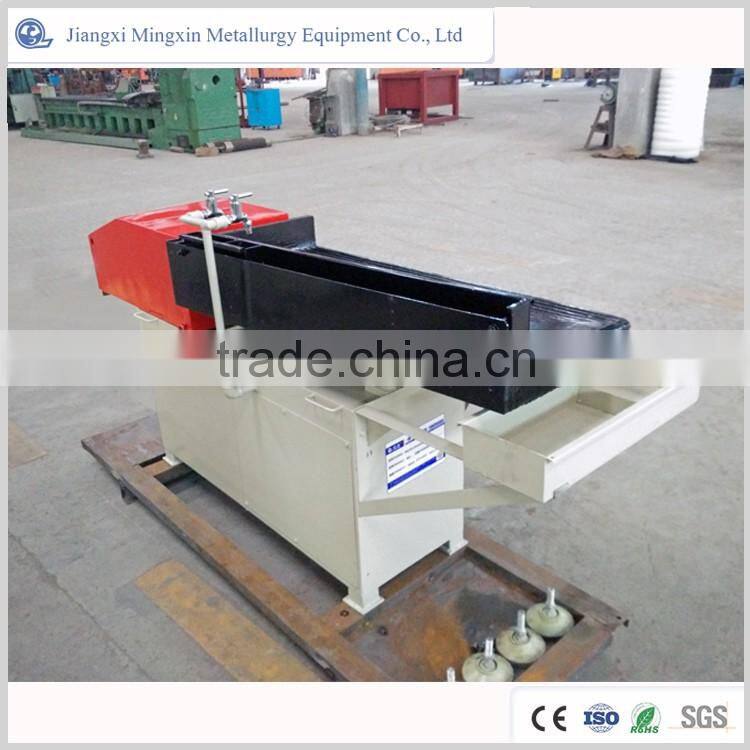

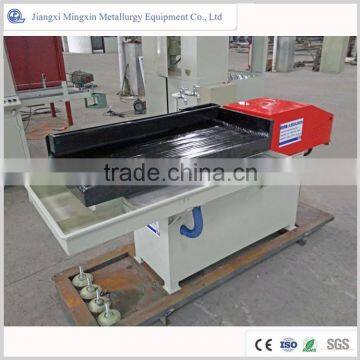

Gravity mineral processing / ore concentrator laboratory shaking table
Description
MX1100X500 Shaking table is provided to the laboratory to carry out the mineral separation feasibility study, experiment and for small ore dressing plant,is one of commonly used equipment for gravity dressing.Suitable for separation of fine grain and small grain rare metal, ferrous metal, nonferrous metal, precious metal and coal.it can work independently, also can match with jig, screw separator, centrifugal separator and other processing equipment.

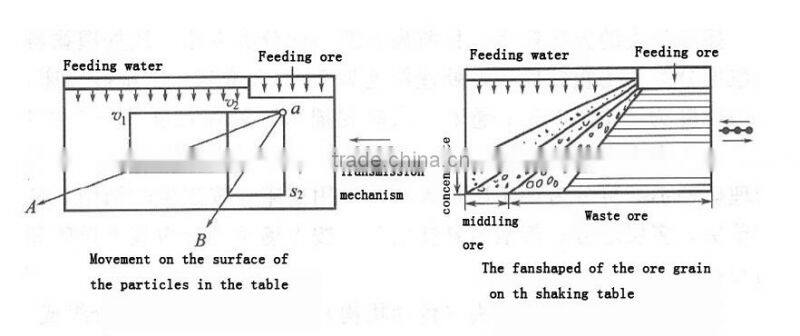

3. Working principle of Mini Shaking Table
The working principle of shaking table for sale is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.
The techincal of Mini laboratory Shaking Table
1,Model: MX1100X500(mm)
2,length of stroke: 9---17(mm)
3,times of stroke: 280~460 time/minutes
4,The adjustment range of deck surface tilt Angle : 0~10°
5,Capacity: 20~60 kg/h
6,Water consumption: 0.3~10 L/minutes
7,Deck size:
(Lenght *The width of feed end *the width of ore discharge) 1100X500X430mm
8,Motor: Model:Y801-4 0.55 KW Rotate Speed:1390 r/Minutes
9,V belt: A----1245
10,Weight: 230KG
11,Installation dimensions:
(L*W*H ) 1730*500*800(mm)
1 how long is the product warranty period ?
A: the product warranty period is 12 months
2. I am a foreign customers, if the machine works wrong, how your company resolved ?
A: We have professional engineers abroad, after receiving your request, we will solve your problems at first time.
3. how much is MOQ of your machine?
A:our machines MOQ is 1 set and also support the mixed batch.
4.Where can we buy the machine's parts?
A: Our company can provide machine`s parts for your any time
5.How can we get the quotation?
First send the detailed requirement to my email,such as capacity , Power consumption,The recovery rate etc.
Then,we send a process flow(including the introduction of whole recycling production line , flow chart ,configuration of the device,and the techincal parameters) to you according to your requirement.
Untill you agree to our plan ,we will send quotation to you.
6.What's the trade terms and payment terms?
We usually quotated for FOB/Ex-work/CIF price.
Payment we can accept TT in advance/paypal account/wester union....
