Mining separator machine shaking table with good qualtiy
The working principle of this Mining separator machine shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.

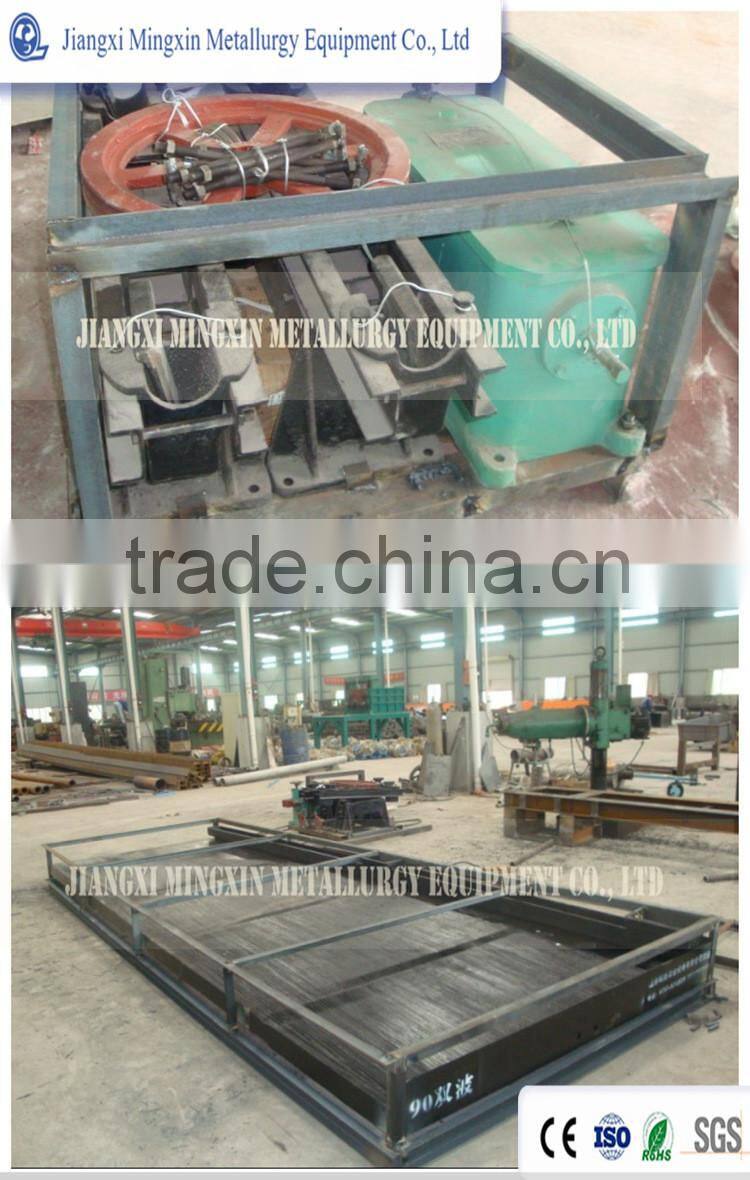

This Mining separator machine shaking table is composed of three parts, i. E. Head of shaking table, surface of shaking table, as well as bearing and adjusting gradient.
1. Head of shaking table: This is eccentric connecting-rod type mechanism. The motor drives the eccentric shafts to rotate and the connecting rod to move up and down. When the connecting rod pushes down the toggle plate compression spring, the pull rod drives the table surface to move in the direction of table head. When the connecting rod pushes it upward, it, through the spring tension, drives the table surface to move in the opposite direction. When they are linked, the rotating motion of eccentric shaft is changed into horizontal alternating differential motion of table surface.

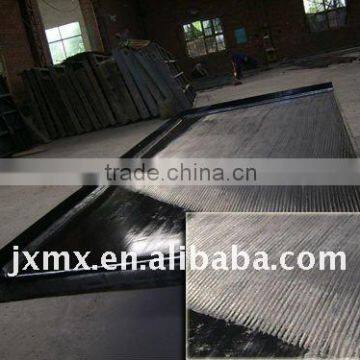

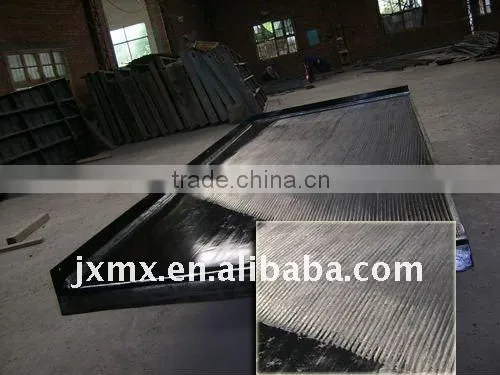

2. Table surface: It is mainly composed of vibrating roof, steel skeleton, glass fiber reinforced plastics and wear-proof surface, feed water tank, feed chute, and draw bar. The table surface adopts steel skeleton FRP composite structure. That is, glass fiber reinforced plastics are pasted on steel skeleton to form a solid glassfiber reinforced plastic surface. Its above uses abrasion-proof materials to make surface and riffle (notch groove).
3. Bearing and Adjusting Gradient Mechanism
The bearing and adjusting gradient mechanism is mainly composed of shaking support plate, adjusting seat board, saddle seat, and adjusting screw rod. The shaking support plate enables the table surface to make arc forward and backward alternating movement on vertical plane. The shaking support plate and shaking box are fixed on the adjusting seat board with gripping channel steel. When hand wheel regulating screw rod is used to get the adjusting seat board to rotate on the saddle seat, the Transverse gradient of table surface can be adjusted.
SHAKING TABLE MAIN TECHNICAL PARAMETER
| Model | 6-S 7.6 | 6-S 4.08 | 6-S 1.95 | 6-S 0.5 | ||||
| Deck type | Coarse ore Deck |
Fine sand Deck |
Slime Deck | Three different kinds of decks are available | ||||
| Beneficiation Area (m 2 ) | 7.6 | 7.6 | 7.6 | 4.08 | 1.95 | 0.5 | ||
| Deck Size | Length (mm) | 4450 | 4450 | 4450 | 3000 | 2100 | 1100 | |
| transmission end width (mm) | 1855 | 1855 | 1855 | 1320 | 1050 | 500 | ||
| Concentrate end width (mm) | 1546 | 1546 | 1546 | 1100 | 850 | 430 | ||
| Maximum Feeding Size (mm) | 2 | 0.5 | 0.15 |
Sand -2 Slime -0.1 |
Sand -2 Slime -0.074 |
Sand -2 Slime -0.074 |
||
| Feeding Amount | 30-60 T/d | 10-20 T/D | 15-25 T/D | 0.4-1.5 T/h | 0.3-0.8 T/h | 0.05-0.2 T/h | ||
| Feeding Density (%) | 25-30 | 20-25 | 15-25 | 10-30 | ||||
| Stroke (mm) | 16-22 | 11-16 | 8-16 | 6-30 | 12-28 | 9-17 | ||
| Frequency (r/min) | 45-48 | 48-53 | 50-57 | 210-320 | 250-450 | 280-460 | ||
| Water consumption | 80-150 T/d | 30-60 T/d | 10-17 T/d | 0.3-1.5 T/h | 0.2-1 T/h | 0.1-0.5 T/h | ||
| Transverse slope of Deck | 2° 30-4° 30 | 1° 30-3° 30 | 1° -2° | 0-10° | 0-8° | 0-10° | ||
| Longitudinal slope of Deck | 1.4 | 0.92 | ------ | ------ | ------ | ------ | ||
| Groove Shape of Deck | Rectangular | Saw-tooth | Triangle | AvailableRectangular, Saw-tooth, Triangle | ||||
| Motor Power (Kw) | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 0.55 | ||
| Transmission Mechanism | Eccentric linkage | |||||||
Company Profile
Jiangxi Mingxin Metallurgy Equipment Co., Ltd.(The former is Shicheng Mingxin Equipment Factory) is dedicated to engineering and manufacturing eco-friendly waste recycling machinery and mining Equipment. Covering an area more than 60 acres, our company is a national high-tech enterprise, Comprehensive quality management standard, measuring a qualified provincial enterprises, Jiangxi Province famous trademark, passed ISO9001: 2000 quality system certification standards, with independent import and export rights, lists as the one hundred enterprises in Ganzhou city,large taxpayer as well as a contract-honoring and faith-keeping AAA enterprise.
Our company sticks to combine science research and practice to engineer and develop high efficiently energy-saving new product.Most products were awarded national patents and sold around the world receiving a good reputation.
MingXin people are expecting cooperation and mutual development from customers domestically and abroad based on its best quality products and reasonable price as well as sincerely perfect service through enterprising spirit and technical innovation together with consolidated unity and relentless exploration.
We can provide the following guarantee
1, competitive price and perfect quality
2, the fast delivery time
3, influential production in China
4, fast after-sales service
