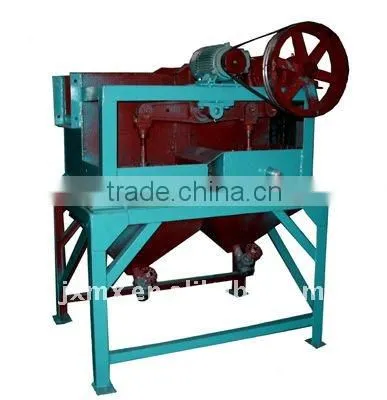

High performance mineral jigging machine separator for chrome

FOB Price

USD $3,000 - $5,000 / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port Xiamen
Payment Terms:T/T D/P D/A

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Type:	Other	Place of Origin:	Jiangxi, China
Brand Name:	Mingxin	Model Number:	MX

Product Description

Specifications

Available in separating metallic ores,such as tungsten and gold placer deposits,tin ore;separate fine material and coarse.

Name	The number of rooms	Screening Room Area (M²)	To sand-degree (Mm)	Capacity (T / h)	Stroke (Mm)	Chong times (Times / min)	Of additional water (T / h)	Pressure (Kg / cm²)	Motor		Weight (Kg)
Name	The number of rooms	Screening Room Area (M²)	To sand-degree (Mm)	Capacity (T / h)	Stroke (Mm)	Chong times (Times / min)	Of additional water (T / h)	Pressure (Kg / cm²)	Model	Power (KW)	Weight (Kg)
100 × 150 Diaphragm jig	1	0.015	-3	0.018-0.6	--	420	--	1-1.5	Y80L-4	0.55	130
300 × 450 Dual-chamber diaphragm jig	2	0.27	-12	3-6	0-26	322	2-4	1-1.5	Y90S-4	1.1	745
1000 × 1000 under the dynamic cone jig-type park	2	2	1-5	10-25	0-26	200-350	60-80	0.6-2	Y100L-6	1.5	1700
Public leather trapezoidal side moving diaphragm jig	3	2.7	-3	12.5-37.5	13-21	170-230	60-90	2	Y90S-4	1.1	2000
670 × 920 jig	2	1.44	4-8	7-10	18-24	240-300	--	--	--	--	--

Diaphragm Jig simple process of their equipment, equipment, processing capacity, can be obtained in a final sorting concentrates or final tailings, it is in dealing with coarse, medium-grained ore has been widely used. It is suitable for sorting large density difference between the Ukrainian ore, tin ore, iron ore, manganese ore, and Lu, as well as gold-bearing ore and dilute non-ferrous metals, ferrous metal ores.
