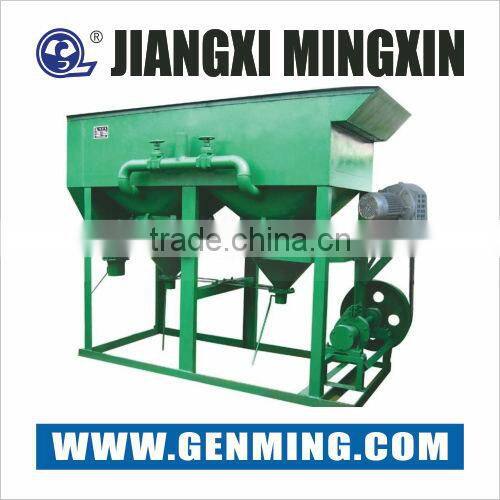

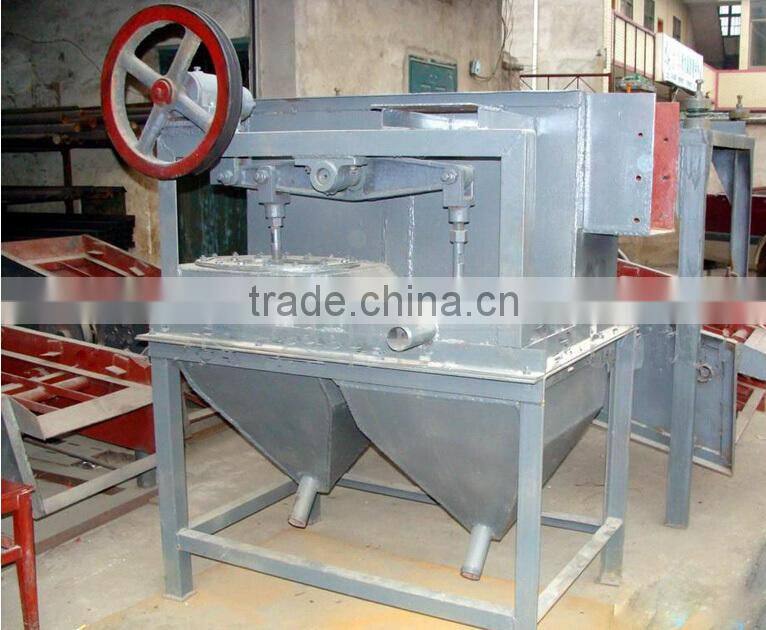

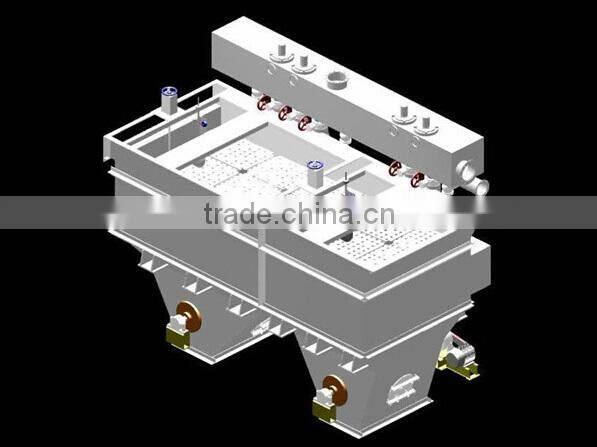

300X450 Double chamber Diaphragm jig for mineral beneficiation

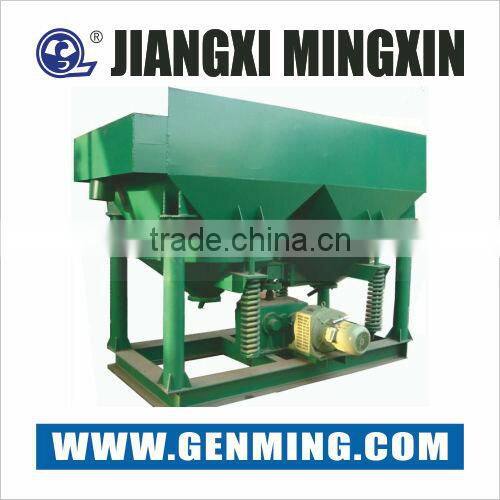

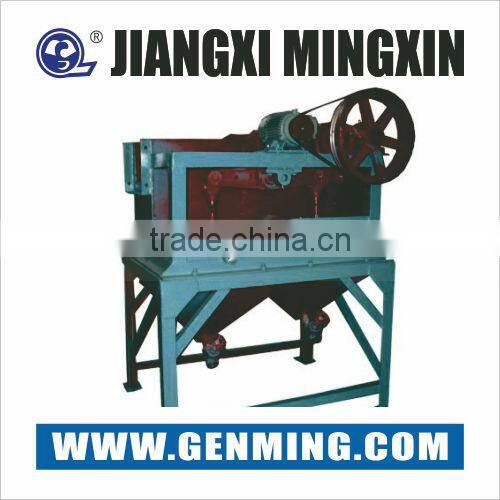

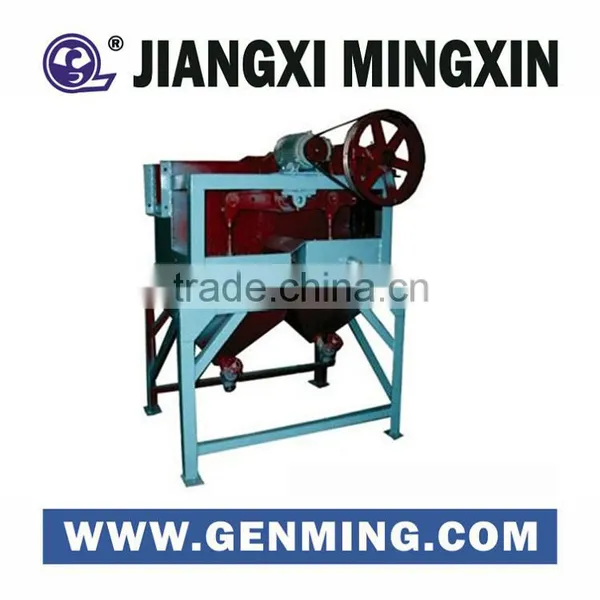

Diamond Diaphragm jig
This machine Can achieve a good result in processing such as placer gold, tungsten, iron, tin, hematite, cope,
tantalum-niobium, titanium, manganese, barite, zirconium, chrome and gemstone etc.saw-tooth Jig
operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water
consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave
Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.
The feature of Diaphragm jig
High capacity
High concentration ratio and high recovery
Fabricated with highest quality material
Easy to install, operate and maintain
The pulsation curve is saw-tooth wave shape facilitate heavy mineral to settling
Saving water 30-40% than ordinary jig
The pulsation speed very easy adjusted by regulator
Suitable for roughing and desliming
Diaphragm jig Working principle
Jig machines need water to work, and it loosens materials in vertical alternative water-flows, and it forms different layers of materials
of different densities and discharges both layers from up and down

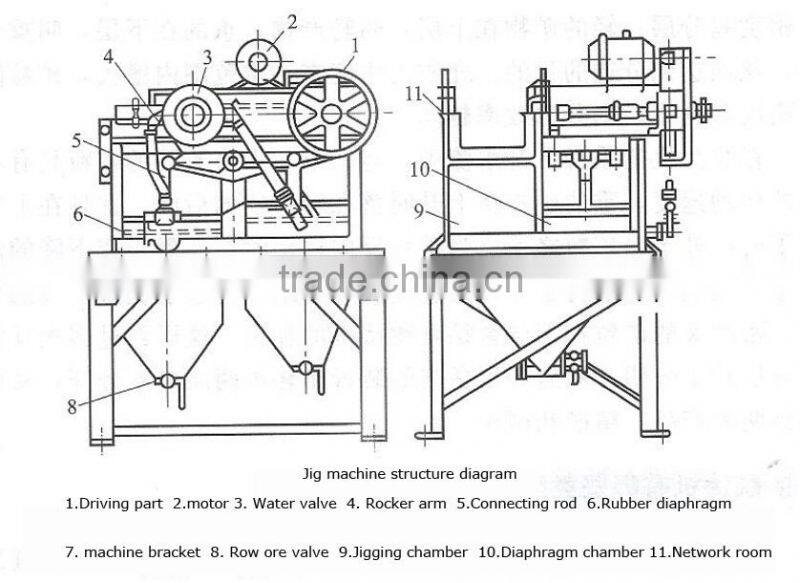

discharging ports separately. The basic composition of jigger is jigging chambers, also called jigging boxes,
and there are screens in each chamber.Water and raw ore will be fed from one end of the jigger screen,
the ore granules will move in the vertical alternative water-flows. Layers will be formed because of density difference of materials.
The minerals with small density will be in the up layer and will flow together with the up pulp flow while material with bigger
density will be in the down layer and will discharged from the down discharging port as jigging concentrate.

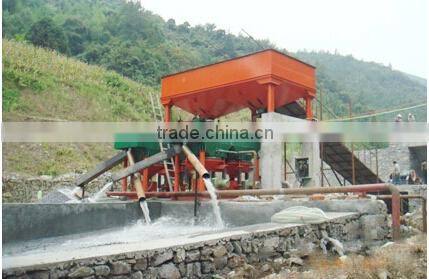

The appplication of Diaphragm jig
jig machine is one of the gravity separation equipment. It is of large capacity, wide range of
sorting grain size, simple operation and maintenance, widely used as coarse or fine sorting machine in the
beneficiation of gold, tin-tungsten, titanium, hematite, too, coal and other minerals.
The techincal parameters of Diaphragm jig
Model |
Room |
Room area |
Feed size |
Capacity |
stroke |
jig frequency |
Water consumption |
water pressure |
motor |
Weight |
|
|
|
|
|
|
|
|
|
|
Type |
Power |
|
100×150 |
1 |
0.015 |
less than 3 |
0.018-0.6 |
- |
420 |
- |
1-1.5 |
Y80L-4 |
0.55 |
130 |
300×450 |
2 |
0.27 |
less than 12 |
3-6 |
0-26 |
322 |
2-4 |
1-1.5 |
Y90S-4 |
1.1 |
745 |
