80C UL20235 Multicore Cable RoHS

FOB Price

USD $0.05 - $0.2 / Meter

3050 Meters(Min.Order)

Supply Ability 1000000 Meter / Meters per Month
Port HK etc
Payment Terms:T/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Get lowest price Inquiry Basket

You May Like

Product Details

Place of Origin:	Guangdong, China	Brand Name:	NANGUDI	Model Number:	UL20235
Type:	Insulated	Application:	Other, internal wiring of appliances, Electrical Equipment,circuit,automotive	Conductor Material:	Other, bare copper,tinned copper
Conductor Type:	Other, solid,stranded	Insulation Material:	Other, PUR

Product Description

Specifications

80C UL20235 Multicore Cable RoHS
1,UL approval.RoHS compliant.
2,ISO9001:2008 certified manufacturer

80C UL20235 Multicore Cable RoHS

Packaging & Delivery:

Packaging Detail:	2KFT(610M)&1KFT(305M)/Coil
Delivery Time:	5-7 workdays after payment

Product Characteristic :

1) Tinned,annealed,stranded or solid copper conductor.

2) Resistant to haet,cold,abrasion,tinned flexibility,cut-through,oil,ect.

3) Passes UL VW-1 & CSA FT1 vertical flame test.

4) Executive Standard:UL758,UL1581,CSA22.2.

Product Construction:

UL Style& CUL Type	Cores	Conductor		Insulation Thickness	Nom.Dia	Shield Coverage	Jacket Thickness	Overall Dimeter	Conductor Resistance at 20°C
UL Style& CUL Type	Cores	AWG	No/mm	mm	mm	%	mm	mm	Ω/KM
UL20235 CUL (Stranded)	2C	30	7/0.100	0.23	0.80	>=65	1.5	4.30	381.00
		28	7/0.127	0.23	0.90	>=65	1.5	4.60	239.00
		26	7/0.16	0.23	1.00	>=65	1.5	4.70	150.00
		24	11/0.16	0.23	1.10	>=65	1.5	4.90	94.20
		22	17/0.16	0.23	1.30	>=65	1.5	5.40	59.40
		20	21/0.178	0.23	1.50	>=65	1.5	5.70	36.70
		18	34/0.178	0.23	1.80	>=65	1.5	6.30	23.20
		16	26/0.25	0.23	2.00	>=65	1.5	8.50	14.60
UL20235 CUL (Stranded)	3C	30	7/0.100	0.23	0.80	>=65	1.5	6.30	381.00
		28	7/0.127	0.23	0.90	>=65	1.5	6.40	239.00
		26	7/0.16	0.23	1.00	>=65	1.5	6.60	150.00
		24	11/0.16	0.23	1.10	>=65	1.5	6.80	94.20
		22	17/0.16	0.23	1.30	>=65	1.5	7.20	59.40
		20	21/0.178	0.23	1.50	>=65	1.5	7.70	36.70
		18	34/0.178	0.23	1.80	>=65	1.5	8.30	23.20
UL20235 CUL (Stranded)	4C	30	7/0.100	0.23	0.80	>=65	1.5	6.40	381.00
		28	7/0.127	0.23	0.90	>=65	1.5	6.60	239.00
		26	7/0.16	0.23	1.00	>=65	1.5	6.90	150.00
		24	11/0.16	0.23	1.10	>=65	1.5	7.20	94.20
		22	17/0.16	0.23	1.30	>=65	1.5	7.60	59.40
		20	21/0.178	0.23	1.50	>=65	1.5	8.10	36.70
UL20235 CUL (Stranded)	5C	30	7/0.100	0.23	0.80	>=65	1.5	6.70	381.00
		28	7/0.127	0.23	0.90	>=65	1.5	7.00	239.00
		26	7/0.16	0.23	1.00	>=65	1.5	7.10	150.00
		24	11/0.16	0.23	1.10	>=65	1.5	7.50	94.20
		22	17/0.16	0.23	1.30	>=65	1.5	8.10	59.40
UL20235 CUL (Stranded)	6C	30	7/0.100	0.23	0.80	>=65	1.5	7.10	381.00
		28	7/0.127	0.23	0.90	>=65	1.5	7.40	239.00
		26	7/0.16	0.23	1.00	>=65	1.5	7.40	150.00
		24	11/0.16	0.23	1.10	>=65	1.5	8.00	94.20

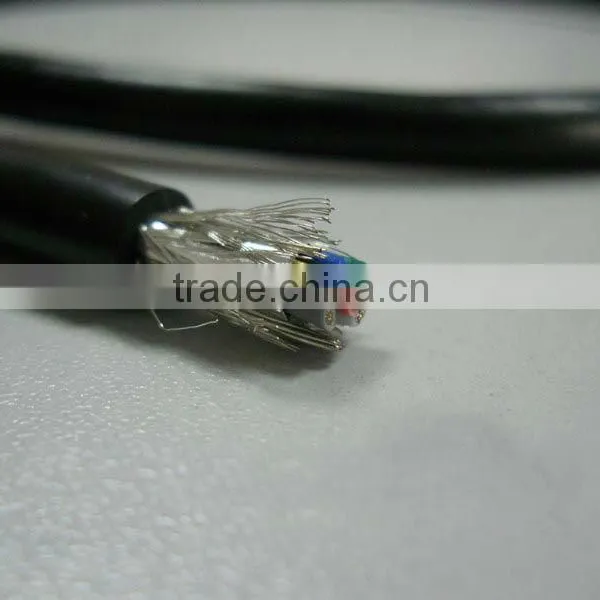

Product Pictures:
