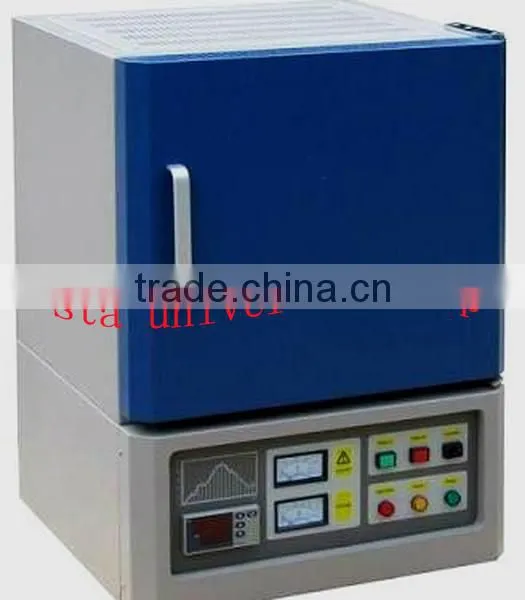

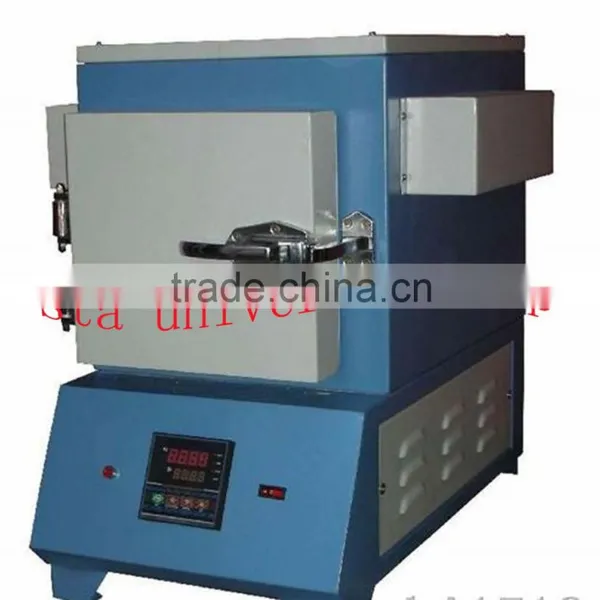

Help CenterSTA High Quality 1700 Muffle Furnace
Related Products
-
STA High Quality 1400 C Hot Sale Lab Box Type Muffle FurnaceUS$ 958 - 2,188MOQ: 1 Set -
STA High Temperature Widely Using Industrial Muffle FurnaceUS$ 958 - 2,188MOQ: 1 Set
-
STA High Quality Hot Sale Discount Customized Crucible Muffle FurnaceUS$ 958 - 2,188MOQ: 1 Set
-
STA High Quality Box Chamber Laboratory Electric Muffle FurnaceUS$ 958 - 2,188MOQ: 1 Set
-
STA 2016 New Economic Hot Sale Cheap Programmable Control 1700deg.c Lab Muffle FurnaceUS$ 958 - 2,188MOQ: 1 Set
Product feature
This series box-type furnace adopt the modern high-tech technology, main parts material are high quality materials which import from Europe Countries , specially designed and application in for high temperature sintering process, such as ceramic wafer electrical conductivity test , ceramic capacitors (MLCC) sintering atmosphere and so on.
♦ The thermal insulation and heat preservation adopt the alumina pure fiber product ,Heated by high qualityMoSi2 heating element electric resistance wire and silicon carbide rod ;also that’s according the temperature.
Control system use the intelligent temperature controller .have the feature of temperature uniform temperature easy to control fast heating up energy saving long time time and so on. All parameter meet the international high standard.
♦Usage
Box furnaces are Widely applicable for sintering of ceramic samples,metal,stone, ceramic, dissolution analysis of high-temperature heating;chemical element analysis, and small pieces of steel hardening, annealing, tempering,universities, research institutes.
structure of muffle furnaces |
double shell steel case with cooling fan can keep outside case cool. highpurity alumina fiber insulation for max. energy saving new designed retention latch provides more safe working enviroment |
chamber dimension |
150x150x150mm |
power |
3.5kw |
voltage |
AC 208v-240v single phase,50/60Hz(50A air breaker required) |
continuous working tempearture |
1600'C |
max. Temperature(in diffferent atmosphere) |
1700'C(3092'F)in air <3 hours 1650'C(3002'F)in N2 1170'C-1450‘(2138'F~2642'F)in H2 |
heating rate |
0~10'C/min (suggestion=5'C) |
temperature accuracy |
+/-1'C |
temperature uniformity |
+/-5'Cover 120mm(5")@1700'C +/-2'Cover80mm (3")@1700'C |
temperature controller |
PID automatic control via SCR(silicon controlled recrifier)power control with phase angle fired, current limiting resistor. 30 programmable segments for precise control of heating rate, cooling rate and dwell time Built in PID Auto-Tune function with over heating &Broken thermocouple broken protection over temperature protection and alarm allows for operation without attendat(s) |
net weight |
80kg |
shipping weight |
128kg |
shippiig demensions |
600x780x620mm |
warranty |
one year limited warranty with life support(consumable parts such as sample plates and heating elements are not covered by the warranty, please order the replacement at related products below) ATTENTION:any damage caused by the use of corrosive and acidic gases are not under the coverage of MTI one year limited warranty. |
compliance |
CE,ISO certified for muffle furnaces |
application notes |
for preserving the longevity of the furnace components,we recommend the heating rate not to exceed 10'C/oling rate shall also not exceed 10'C/min.this furnace lacks vacuum sealing.toxic or explosive gases are not recommended for use with this furnace without necessary safety controls and supervision. small cracks may appear on the surface of the refractory ceramic over extended use.this is a normal occurence and cracks may be repaired with alumina coating.refractory block must be inserted before closing door. |
|
|
As customer request. Generally, Our mode of transport are as by sea, by air or rail transport
