STA High temperature widely using Industrial Muffle Furnace

Product Description

Brief Introduction:

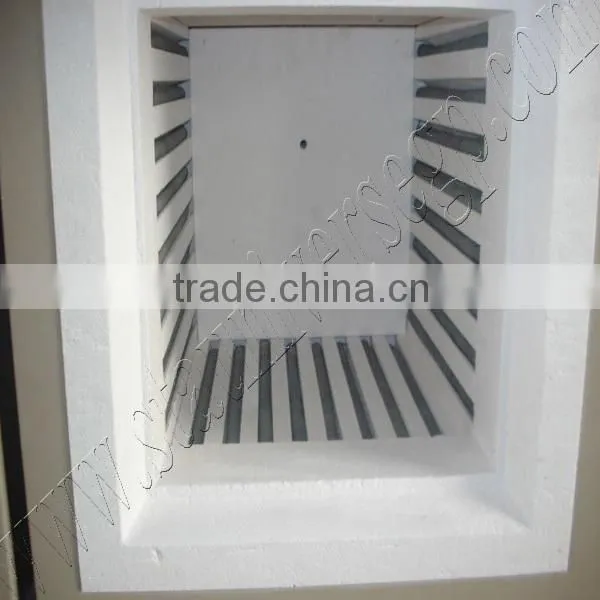

STA-XY1400 Laboratory Muffle furnaces are the most cost effective bench-top high temperature muffle furnace. The furnace consists of high quality alumina fiber brick with special design, and furnace temperature is controlled by high precision SCR (Silicon Controlled Rectifier) digital controller with accuracy +/-1 deg oC and 30 segments programmable. It is an ideal tool for materials annealing and sintering in your research laboratory.

Technical Data:

Style:STA-XY1400

Standard Working Temperature: 1300.C ( continuous )

Maximum Working Temperature: 1400.C ( < 3 hrs) [Others degree:1100.C/1200.C/1700.C/1800.C]

Inside Chamber Size: Customizable 150*150*150mm  2L/7L/16L

Temperature Control: 30 steps programmable and PID automatic control

Heating Rate: 10~20.C/ min (suggestion:<10.C)

Temperature Accuracy: +/- 1.C

Working Voltage: AC 220V Single Phase 60/50 Hz (or according to your requirement)

Furnace structure: Double shell with fan cooling

Heating Element: Fe-Cr-Al-Mo wire

Thermocouple: K type

Standard package included with the furnace:

Part description Quantity

Thermal couple: 1 pc

Stainless steel hook: 1 pc

Thermal gloves: 1 pair

Operation manual: 1 pc

Standard or stock size

Chamber size:(W x H x D) Max. Temperature Max. Power

100x100x100mm (4"x 4"x 4") 1200.C 1.5 KW

200x150x150mm (8"x 6"x 6") 1200.C 2.5 KW

300x200x200mm (12"x8"x 8") 1200.C 6 KW

500x300x200mm (20"x12"x8") 1200.C 10 KW

Non-standard size could be made according to your requirement.

Package: Plastic paper inside, Polyfoam filled, Wooden box outside.

Payment: L/C T/T, West union, etc.

Shipping and Delivery: By air, in 20 days after receiving the payment

Warranty: Our products are warranted to be free from defects in materials or workmanship for one year from the date of purchase. Within this period, Across International will, at its sole options, replace any components that fail in normal use. Such replacement will be made at no charge to the customer for parts, provided that the customer shall be responsible for any transportation cost. This warranty does not cover consumables and failures due to abuse, misuse, accident or unauthorized alteration or repairs.

Replacement will be shipped to you after photo or other evidence are provided and investigated.
