china dental waste product
- Customized for hospital and small medical waste treatment plant; Available to install at limited space for on-site treatment.
- Autoclave and shredder integrated in a closed vessel, makes disposal process safer and easier.
- Heavy-duty design assure long lifetime.
Core Advantages:
- Patented technology for shredder, easily disassembled, no need on-site hoisting device when maintenance.
- World leading smart technologies system realizes online remote monitoring.

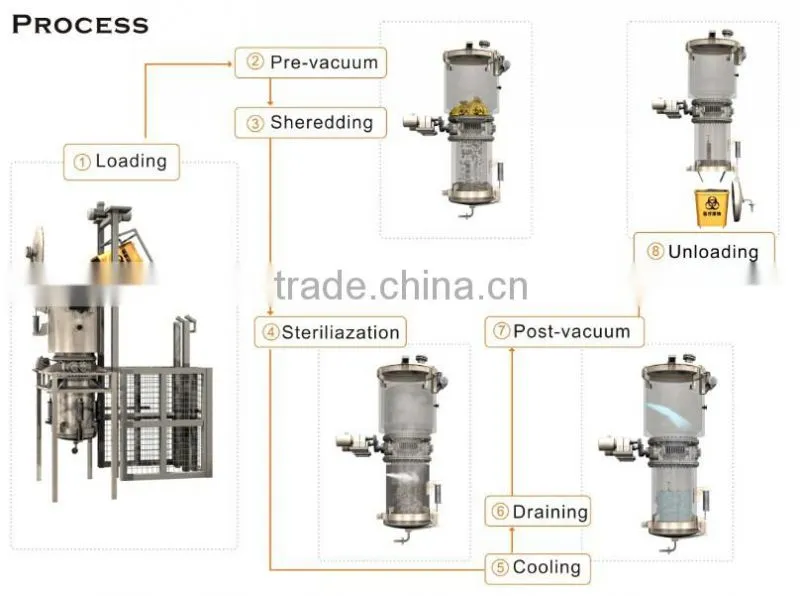

Process:
Loading ==> Pre-vacuum ==> Shredding ==> Sterilization ==> Cooling Draining ==> Post-vacuum ==> Unloading

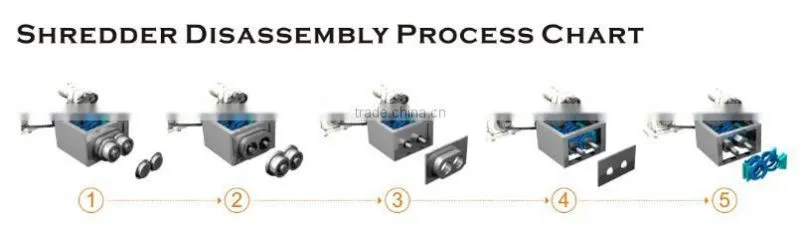

Shredder Disassembly Process Chart:
Technical Parameters:
MWI Series |
Unit |
MWI300 |
MWI500 |
MWI1000 |
MWI2500 |
|||
Basic Parameter | ||||||||
Size (L*W*H) |
mm |
1500x1850x2600 |
1800x2100x3000 |
1900x3300x5000 |
4300x5100x8000 |
|||
Net Weight |
Kg |
2700 |
3600 |
5900 |
6800 |
|||
Rated Power |
KW |
14 |
20 |
30 |
40 |
|||
Loading |
/ |
vertical |
vertical |
vertical |
vertical |
|||
Operating Parameter | ||||||||
Cycle Time |
min |
30 |
30 |
35 |
45 |
|||
Disposal Volume |
Liter |
300 |
500 |
1000 |
2500 |
|||
Disposal Weight |
kg |
30-36 |
50-60 |
100-120 |
250-300 |
|||
Waste Density |
Kg/m3 |
100-120 |
100-120 |
100-120 |
100-120 |
|||
Microbial Inactivation |
/ |
6 log10 |
6 log10 |
6 log10 |
6 log10 |
|||
Volume Reduction |
% |
80% |
80% |
80% |
80% |
|||
Disposal Temp. |
℃ |
134 |
134 |
134 |
134 |
|||
Steam Pressure |
Mpa |
0.22 |
0.22 |
0.22 |
0.22 |
|||
Consumption/cycle | ||||||||
Steam |
kg |
15 |
20 |
25 |
45 |
|||
Electricity |
Kwh |
1.8 |
2.1 |
3.7 |
8.2 |
|||
Water |
Liter |
25 |
30 |
35 |
50 |
|||

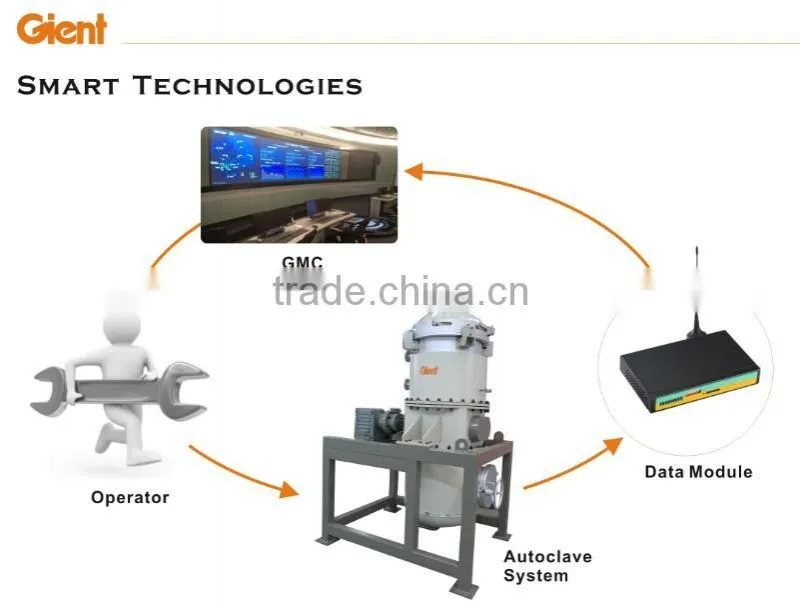

Smart Management System:
The benefits we bring to our clients:
- Self-recording management: Equipment files ( including equipment documents, system drawings ,spare parts ,maintenance and operation recordings etc) are completely stored in GMC(Gient Monitoring Center), it can be checked anytime.
- Remote Expert Management: Expert provide remote guidance for client’s on-site operation management, which realizes remote diagnosis and problem-solve online as well as reducing the operating cost.
- Failure Rate Management: Based on the data of the user’s system, GMC can analyze the data and diagnose the equipment. GMC will alarm automatically prior to abnormal problems happen so as to reduce the failure rate of the equipment.
Gient‘s Services:
Gient is aimed at bringing benefits to our clients to achieve their maximum return of investment from launching the project to providing after-sales service in a lifelong time. Gent's team provide the services including but not limited as follows:
Customized Engineered Services
Gient team follow the procedure of “consultative selling” to our clients, we study each client’s project carefully and provide them with customized service and assistance at early stage such as:
*Project consulting
*Operation cost analysis
* System layout,drawing,details etc.
Turnkey Project Implementation
Gent's engineers shall provide up to 5 days free on-site service to guide the project implementation such as:
*Field installation supervision
*Start-up and debugging
*Training for operation,maintenance,emergency etc.
Smart Lifelong Service
Thanks to Gient Monitoring Center (GMC), we can provide service through smart management system such as:
*GMC analyze data and remind prior to abnormal problems happen
*GMC remote diagnosis provides problem-solving online
*Hazardous waste tracking system from hospital to autoclave system
*Self-recording key data of operation
Gient’s Certificates:
We are Looking foward to your inquiry, please contact us at any time. Thank you!
