ETCR9100 H/L Voltage Clamp Meter----New

Specifications

H/L Voltage Clamp Meter
1.Range:0.1mA~600A
2.Accuracy:0.1mA
3.Circuit Voltage:<=60KV(with insulation rod)
4.Store:99Groups

 ETCR9100 H/L Voltage Clamp Leaker



Our buyers have stayed with us for 11years

12 years of specialized meters

ISO Patent and CE certificate

OEM services available

More information, please kindly view our web site: /en/

Online store:     /store/502192





Product Characteristics

Automatic clamp plug, Safe and convenient, H/L AC current measurement below 69KV; Online AC current monitoring, Measuring Range: 0.01mA~600A(50/60Hz), Resolution 0.01mA, 99 sets’ data memory, clamp size: Φ33mm, Insulated rod length 1mX 5PCS.





I. Introduction



ETCR9100 H/L Voltage Clamp Leaker specially designed and manufactured for high precision high voltage current measurement; use the latest CT technology and integrated mask digital technology; composed of special high voltage detector, wireless receiver and high voltage insulation rods. Wireless transmission can receive the measured data by penetrating storey building barriers or 30 meters. If not use insulated rods, it can also used as high-precision low-voltage clamp meter and leakage current meter, can accurately measure the 0.1mA ~600A current or leakage current.

The integrated design of clamp and lead zone of ETCR9100B H/L Voltage Clamp Leaker ensures uninterrupted year-round high precision, high reliability and high stability test.

The connection rods of ETCR9100B wireless high and low voltage clamp ammeter can be applied in high voltage line current measurement and online current measure below 69KV, also with the functions of peak value maintaining, data maintaining, data memory, etc. The special clamp ammeter can facilitate clamp to exit the tested lead by pressing or pulling back insulation bar, which is time efficient and convenient; widely used in power plant, substation, industrial and mining enterprise, inspection station, electrician maintenance department for current sensing and field working. It can also be used as high and low voltage changing ratio tester, that is, respectively test the first loop and secondary loop high and low voltage current, and then obtain the voltage change through manually calculation. Insulation rod has the characteristics of moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation and scalability, etc.



II. Technical Specifications



Function	High voltage AC current measurement, low voltage AC current, current leakage measurement, online AC current measurement
Power Supply	DC6V alkaline dry battery(1.5V AAA×4)
Test Mode	Clamp CT, integral approach
Display Mode	4 bit LCD display, with backlight function
LCD Dimension	47mm×28.5mm
Meter Dimension	LWH: 68mm×245mm×40mm
Clamp Dimension	Φ33mm
Sampling Rate	2 times/second
Measurement Scope	0.00mA~600A(50/60Hz automatic)
Resolution	0.01mA
Shift	0.01mA~600Aautomatic shift
Accuracy (23°C±5°C, below 70%RH)	0.01mA~100.0A:      ±1%±5dgt
	100.0A~600.0A:      ±2%±5dgt
Line Voltage	Below 69KV line test (with 5 insulation rods operation)
Data Memory	99 sets, memory process is shown by MEM , full storage is shown by blinking   FULL
PEAK value maintaining	Automatically maintain the high test value, in usual testing mode, press key HOLD till the lighting of PEAK, that is, start PEAK to maintain this function.
Data Hold	In usual testing mode, press HOLD key to keep data, shown by “ HOLD ”
Data Access	“ MR ” indication, can access to all data
Overflow Display	Over-range overflow function: shown in “ OL  A ”
Automatic Shutdown	15 minutes after boot
Battery Voltage	When battery voltage is lower than 4.8V, battery voltage is shown in low symbol to remind battery replacement
Meter Weight	Detector: 335g (with battery), the total mass of meter: 2.5kg (including insulation rod and battery)
Working Temperature and Humidity	-25°C~40°C; below80%Rh
Storage Temperature and Humidity	-10°C~60°C; below70%Rh
Insulation Rod Dimension	φ32mm, 1m/piece (5pieces)
Insulation Strength	AC 100kV/rms (between the 5 th insulation rod and high voltage current clamp core)
Structure	Anti-drip type II

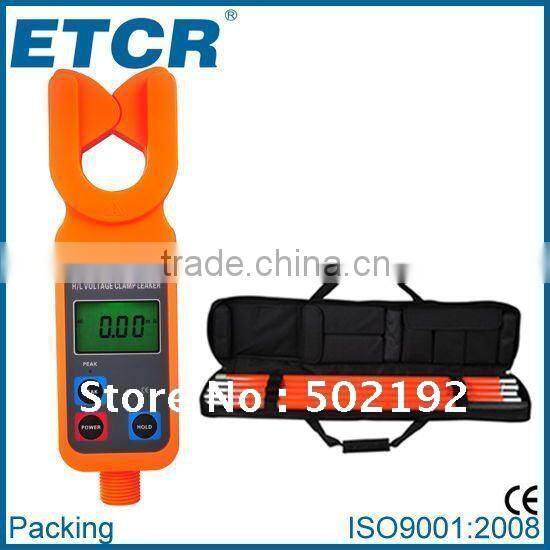

Accessories	Clamp Meter : 1 piece; meter box: 1 piece; insulation rod (1m): 5 pieces; battery (alkaline battery AAA): 4 pieces

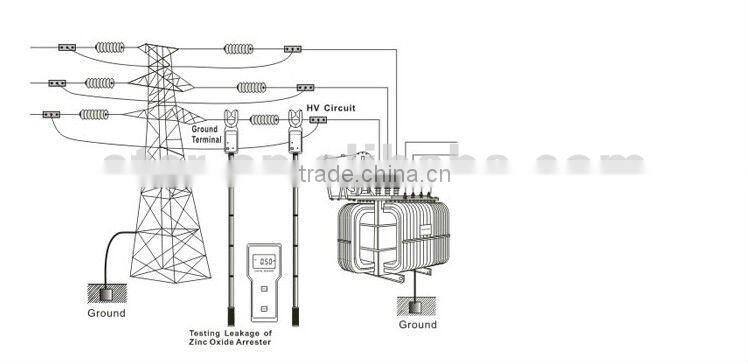

 III. Field Application
