Two Tuner input SD DVB-S2 IRD with IP &AV output
Please add Tina skype: shineco.tina for direct discuss and more details
Outline
Shineco SNK634X series SD IRD is the all-in-one device which integrates demodulation, de-scrambler and decoding (DVB-C, T/T2, S/S2 optional) in one case to convert RF signals into analogue video (CVBS) output.
It is a 1-U case which supports 2 tuner inputs. The two CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device. BISS function is also embedded to descramble programs from any input. Its pluggable structure design greatly facilitates the change of modules (demodulator or decoder) as needed.
To meet customers’ various requirements, SNK634X Series is also equipped with 1 ASI input, and output with 2 ASI ports and IP port.
Key Features
* Demodulation + descrambler + decoder modules in one box
* 2 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
* 1 ASI & 1 IP (UDP) input for re-mux
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* Separate 2*CVBS(4*CVBS optional) video output
* IP (1 MPTS & 8 SPTS) over UDP and RTP/RTSP output; ASI out
* Support maximum 128 PID mapping per input
* Pluggable and changeable demodulator and decoder modules
* Support BISS descrambling(Up to 120Mbps )
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
Specification
Input
2 x RF (DVB-C, T/T2, S/S2 optional), F type |
1×ASI input for re-mux, BNC interface |
1xIP input for re-mux (UDP) |
Tuner Section
DVB-C | |
Standard |
J.83A(DVB-C), J.83B, J.83C |
Input Frequency |
30 MHz~1000 MHz |
Constellation |
16/32/64/128/256 QAM |
DVB-T/T2 | |
Input Frequency |
30MHz ~999.999 MHz |
Bandwidth |
6/7/8 M bandwidth |
DVB-S
Input Frequency |
950-2150MHz |
|
Symbol rate |
2-45Msps |
|
Signal Strength |
- 65- -25dBm |
|
Constellation |
1/2, 2/3, 3/4, 5/6, 7/8 QPSK |
|
DVB-S2 | ||
Input Frequency |
950-2150MHz |
|
Symbol rate |
QPSK 1~45Mbauds; 8PSK 2~30Mbauds |
|
Code rate |
1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 |
|
Constellation |
QPSK, 8PSK |
|
Output
IP Output |
1*MPTS & 8*SPTS over UDP, RTP/RTSP. 100Base-T Ethernet interface (unicast / multicast) |
2×ASI |
BNC interface |
Video Output |
Video Interface: 2xCVBS (RCA) Audio Interface: 2 x Stereo/mono (RCA) Resolution: PAL 576i, NTSC 480i Video Decode: MPEG-2 MP@ML Audio Decode: MPEG 1 Layer II |
System
Local interface |
LCD + control buttons |
Remote management |
Web NMS Management |
Language |
English |
General
Power supply |
AC 100V~240V |
Dimensions |
482*300*44.5mm |
Weight |
3 kgs |
Operation temperature |
0~45℃ |
Shineco 2 in 1 SD IRD Principal Chart Pricipal Chart

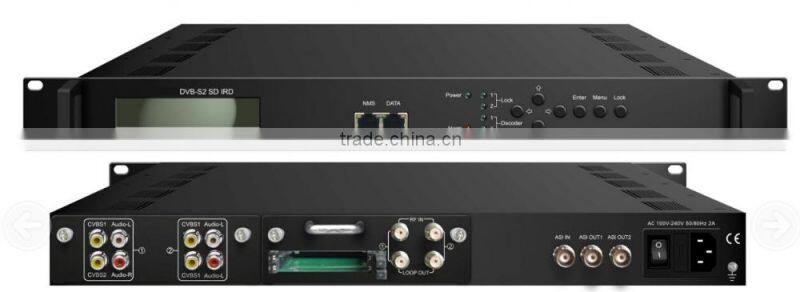

Shineco SNK634X 2 in 1 SD IRD Appearance and description
How to operate and manageme the equipment by Web?
Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment.
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
FAQ
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order?
1.Directly place order from our alibaba website
2.Send your requirement to Tina email or add her skype: shineco.tina for details
Payment Terms:
1. Payment: T/T, Westerunion, Paypal or online pay
2.MOQ: 1 Set
3. Warranty: 5 Years
