Cable tv server 4 CI slot DVB-S2 IRD, IRD with CAM
- 2500 Set / Sets per Month
- China Main Port
- T/T Credit Card
- SF-9505C HD 1080P digital hd satfinder
- SF-9505C HD Signal Finder Meter Digital Satellite Finder
- Wholesale Satlink SF-9505C satellite finder digital
- Factory Price Satlink Satellite Finder Meter
- HD Satellite Finder Signal Sat Finder Meter With Short Patch
- Cheap Price Wholesale Light Weight Sat Dish TV Satellite Amplifier Signal Finder
Product Details
Place of Origin: | China | Brand Name: | Shineco | Model Number: | SNK-636X |
FTA(Free To Air): | Yes | Type: | Digital | High Definition: | Yes |
Product Description
Cable tv server 4 CI slot DVB-S2 IRD, IRD with CAM
Please add Tina skype: shineco.tina for direct discuss and more details
Outline
Shineco SNK636X ird IRD is the new design which integrates demodulation (DVB-C, T/T2, S/S2 optional), de-scrambler and multiplexing in one case to convert RF signals into TS output.

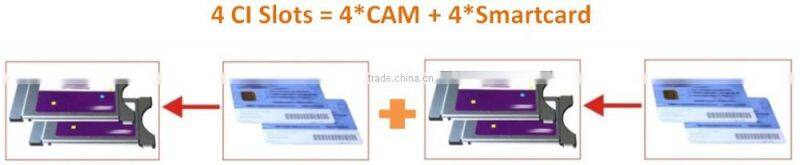

It is a 1-U case which supports 4 tuner inputs, 1 ASI and IP. The 4 CAMs/CIs accompanied can descramble the programs input from encrypted RF, ASI and IP. The CAM requires NO unsightly external power cords, cables, or additional remote control device.
To meet customers’ various requirements, it is also designed to de-mux programs from any input, and output TS over 48 SPTS & 4 MPTS UDP, RTP/RTSP.
Key Features
* 4 Tuner inputs (DVB-C, T/T2, S/S2 Optional)
* 1 ASI & 4 IP (UDP) input
* One CAM can decrypt multiple programs from Tuners/ASI/IP
* IP (48 SPTS, 4 MPTS) over UDP and RTP/RTSP output;
* 4 groups of independent ASI out for tuner/IP passthrough (one-to-one)
* Support maximum 128 PID mapping per input
* LCD display, Remote control and Firmware, web NMS management
* Updates via web
Specification
Input
4x RF (DVB-C, T/T2, S/S2 optional), F type |
1×ASI input for de-mux, BNC interface |
4xIP input for de-mux (UDP) |
|
Tuner Section
DVB-C | |
Standard | J.83A(DVB-C), J.83B, J.83C |
Input Frequency | 47 MHz~860 MHz |
Constellation | 16/32/64/128/256 QAM |
DVB-T/T2 | |
Input Frequency | 44-1002 MHz |
Bandwidth | 6M, 7M, 8M |
DVB-S
Input Frequency | 950-2150MHz | |
Symbol rate | 2-45Msps | |
Signal Strength | - 65- -25dBm | |
Constellation | 1/2, 2/3, 3/4, 5/6, 7/8 QPSK | |
DVB-S2 | ||
Input Frequency | 950-2150MHz | |
Symbol rate | QPSK 1~45Mbauds; 8PSK 2~30Mbauds | |
Code rate | 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 | |
Constellation | QPSK, 8PSK |
Output
IP | 48*SPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface (unicast/multicast) 4*MPTS over UDP, RTP/RTSP. 1000M Base-T Ethernet interface, for RF in passthrough (one-to-one) |
ASI | 4 groups BNC interface, for RF or IP in passthrough (one-to-one) |
System
Local interface | LCD + control buttons |
Remote management | Web NMS Management |
Language | English |
General
Power supply | AC 100V~240V |
Dimensions | 482*400*44.5mm |
Weight | 3 kgs |
Operation temperature | 0~45℃ |
Shineco Integrated Receiver Decoder China Price Principal Chart
How to operate and manageme the equipment by Web?
Connect the PC (Personal Computer) and the device with net cable, and use ping command to confirm they are on the same network segment.
Shineco Company Brief Introduction and Advantage
Chengdu Shineco Technology Company is about 11 years experience in Digital TV headend DVB-C/T/T2/S2/IPTV and DSNG system.
we submitted to support our distributors and clients by means of successful experiences and perfect services. These added values make our products more worthy.
We work from 9:00 am to 24:00 pm to supply timelyservice for clients,if you choose us,we believe that we shall achieve a win-win situation in the future cooperation. All our products enjoy 5 years warantty. Welcome to contact us!
About Packing and Equipment Power Plug
1. For Sample, you can choose DHL, FEDEX,UPS and EMS.
2. For Bulk Order, you can use Air Transport.
FAQ
Q1:Do you support Sample order?
We accept MOQ 1 set, so we can accept Samples order before the real order per customers’ requirement,
sample are not free charge.
Sample delivery will take approximately 1-3 working days after payment received,
bulk order lead time is about 5-15 days based on
your quantity.
Q2:What is your Payment Terms?
We can Support TT,Western Union,Paypal, you can also send money via direct online payment,meanwhile,
our company support Trade Assurance, which is 100% Production quality / on-time shippment / payment Protection.
Q3:Since there are so many company,how I can believe Shineco is the best factory we can cooperation?
1.First of all,our products and accessories have been inspected and tested by 3 times during every production process,
and all products will aging above 15 days before ship out,so excent quality is promised.
2.All products enjoy 5year warranty. If there is no man-made problem, we will replace or repair for your freely.
3. We own the best after sale service, if you face any problem,our team will response within 24 hours,and we can provide remote maintenance by teamviewer or telephone
Q4:Do you support OEM?
Of course yes,OEM orders are warmly welcome,we can imprint your logo on products and let your logo shine anywhere.
Q5:How to place the order?
1.Directly place order from our alibaba website
2.Send your requirement to Tina email or add her skype: shineco.tina for details
Payment Terms:
1. Payment: T/T, Westerunion, Paypal or online pay
2.MOQ: 1 Set
3. Warranty: 5 Years
