Specifications
engineering machinery1.Set up in 1996,17 years engineering experience
2.Flexibility,mobility
3.Overall economy

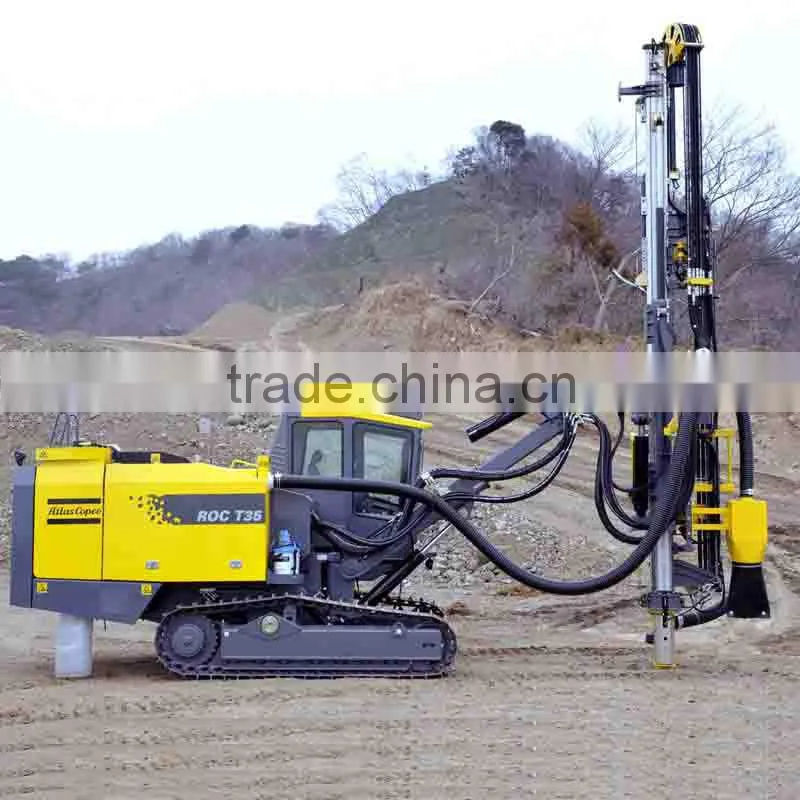

FlexiROC T35 - engineering machinery
Advantages
1.The drill rig for soft and medium rock formatios in quarries. High productivty by means o high pressure compressor in combination wih the perfect work station.
2.The ability of drill in different angles and to accurately set the inclnation and control the depth of the hole contribute to the overall economy of the operation.
3.Flexibility and mobilit are two important factors for a smooth operatio. The boom and feed movements of Flexi ROC T35 gives he rig excellent flexibility for vertical, horizontal and angle drilling.
| Recommended hole range FlexiROC T35-engineering machinery | ||
| T38 T45 | 64-102 | mm |
| T51 | 89-115 | mm |
| Hole Depth,Max | 29 | m |
| Compressor | ATLAS | |
| Atlas Copco, screw type | C106 | |
| working pressure | max.10.5bar | |
| FAD | 127 i/s | |
| Engine | ||
| Caterpillar,water-cooled, diesel engine, | CAT C7 | |
| Rating at 2,000 rpm | 168kw | |
| Fuel tank | ||
| Capacity | 370 | 200USGAL |
| Feed | ||
| Feed length, total | 7140mm | 25" |
| Travel length | 4240mm | 15" |
| Feed extention | 1400mm | 4.3" |
| Feed rate max. | 0.92m/s | 180 ft/min |
| Feed force, max. | 20 kN | 4496 lbf |
| Tractive pull,max | 30 kN | 6744 lbf |
| Tramming | ||
| Tramming speed, max. | 3.6km/h | 2.1 mph |
| Traction force | 142 kN | 24729 lbf |
| Hill climbing ability | 30° | |
| Ground clearance | 455 mm | |
| weight,optional equipment | 14500 | kg |
| width | 2490 | mm |
| length | 19710 | mm |
| height | 3100 | mm |
We can supply full range of drilling equipment to satisfy the requirements of the construction engineering and mine production.
Air compressor
Drilling rig
We are not only having 17 years rich practical experience, but also have a batch of long-term cooperation top machinery manufactory resource.We provide original spare parts and drilling tools.
we have wide experience in mining, blast hole, anchor hole, geotherm hole. You can see our project case, and then you will believe our experience can help you.
production process
Our Certificate
Not only are we one of the premier suppliers of DTH equipment, we have also become specialists in solution based large diameter rock drilling packages, providing not only large diameter hammers and bits, but also shrouded drill pipes, helicoidal pipes and casing advancing systems. Working with you from tender stage to contract completion helps you get your projects completed on time and on budget.
