Home > Manufacturing & Processing Machinery > Drilling Rig > Mine Drilling Rig > KW20 Water Well Drilling Machine 200m Depth

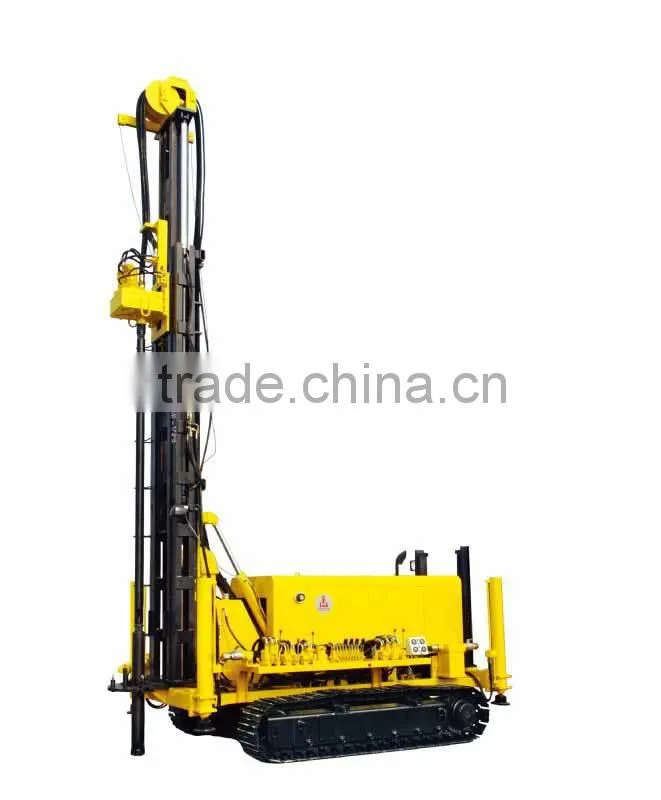

KW20 Water Well Drilling Machine 200m Depth

Name: KW20 Water Well Drilling Machine 200m Depth
Brand: ZHAOXING
SKU: 111213865

KW20 Water Well Drilling Machine 200m Depth thumbnail-1

KW20 Water Well Drilling Machine 200m Depth photo-1

US$ 20,000 - 45,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Type:

Other, water well drilling machine

Power Type:

Diesel

Contact Supplier Request Quote Chat Now

Xiamen Zhaoxing Machinery & Electric Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Xiamen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Other, water well drilling machine

Power Type Diesel

Place of Origin Fujian, China

Brand Name ZHAOXING

Model Number KW20

Usage Water Well

Voltage 24V

Power(W) 58KW/80HP

Dimension(L*W*H) 5100*2300*2700

Weight 6500kg

Certification CE, CE

Warranty 1 Year-2000hours

After-sales Service Provided Overseas service center available

Specifications

KW20 water well drilling machine
1.17 years engineering experience
2.Under ISO9001 quality management system

KW20 water well drilling machine

Features :

Water Well drilling rig characteristics:

1.Safe and stable travelling system

2.Powerful and reliable engine

3.Latest design drilling boom

4.Powerful feeding and rotating system

5.Multi-angle operation

6.Delivery fast (10-14days) Portable Water Well Drilling Rigs

Parameter Technique:
Model	KW10	KW20	KW30
DIA.hole	Φ115-254	Φ152-260	Φ168-300
Drilling depth	120m	200m	300m
Air consumption	16-30m3/min	16-30m3/min	16-40m3/min
Working pressure	10.5-24.6bar	10.5-24.6bar	1.05-2.46
Ground clearance	245mm	280mm	280mm
Support cylinder stroke	460mm	1000mm	1000mm
Feed cylinder stroke	1750mm	2400mm
Feed power	30000N	45000N	50000
Lift power	70000N	95000N	150000
Speed of rotator	50-100rpm	60-105rpm	43/52/69
Rotation torque	3200N.m	40000N.m	40000N.m
Climb capacity	15	25	25
Traveling speed	0-2.5KM/h	0-2.5KM/h	0-2.5KM/h
Recommended compressor	RHP750	RHP750	RHP750
Engine
Engine model	YC4D80	YC6B125-K10	YC6B150Z-T21
power	58KW/80HP	92KW/122HP	110Kw
Rotation speed	2400rpm	2200rpm	2100rpm
Drilling components
Hammer	DHD360(DTH380)	DHD360(DTH380)	DHD360(DTH380)
DIA. Of rod	Φ89mm	Φ89mm	Φ89-102mm
Length of rod	3m	3m	3m
DIA.hole	Φ115-254	Φ152-260	Φ168-300
Weight	6500kg	8500kg	9500kg
Dimension	510023002700	510023002850	520023003200

Zhaoxing can help you to improve drilling efficiency and reduce the production cost.

1. Over 17 years practical drilling experience

2.Sold hundreds of drilling rig and air compressor

3. Continue to supply original spare parts and drilling tools

4. Provide professional drilling technical support

Drilling rig

We are not only having 17 years rich practical experience, but also have a batch of long-term cooperation top machinery manufactory resource.We provide original spare parts and drilling tools.

we have wide experience in mining, blast hole, anchor hole, geotherm hole. You can see our project case, and then you will believe our experience can help you.

When you want to purchase equipment, we can supply best configuration according to your project situation.

When you want to improve increase efficiency, we can supply reform project for you.

When you want to decrease drilling tool cost, we can supply good quality and low price product to you.

When your equipment need to repair, we can supply technical service.

In a word, if you cooperation with me, you will get benefit as soon as possible.

Not only are we one of the premier suppliers of DTH equipment, we have also become specialists in solution based large diameter rock drilling packages, providing not only large diameter hammers and bits, but also shrouded drill pipes, helicoidal pipes and casing advancing systems. Working with you from tender stage to contract completion helps you get your projects completed on time and on budget.
