Specifications
Cold Room Condensing Unit-Bitzer Compressor
-Air Cooled Low Noise Condenser
-R22, R404a Units
-3-20HP Capacity

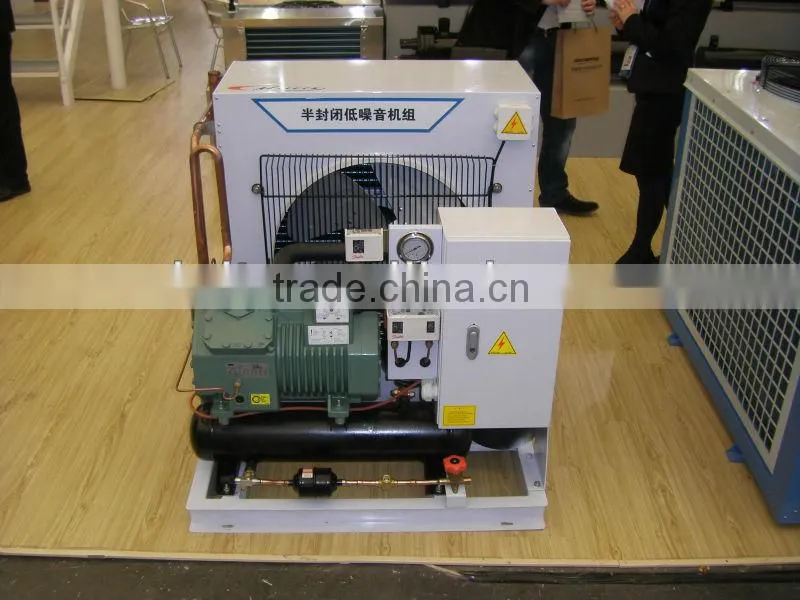

Refrigeration Cold Room Condensing Unit with Low Noise (FNS Series)
Introduction&Features
1.Utilized Semi-Hermetic Bitzer Refrigeration Compressors; Low Noise, Running Stable;
2. Condenser utilized copper tube & aluminum fin type heat exchanger; Large heat exch ange area and hidh efficiency;
3. Adopted two-speed fans, which can adjust the fans speed according to the change of condensing pressure;
4. Imported high-quality refrigeration parts to ensure full configuration and high reliability of operation;
5. Schneider Electric parts utilized on the units, having the functions of overload, phase failure, anti-frequent start, etc.
6. Low Noise FNS Series air cooled condenser utilize on the units;
7. Two Types: integral type and spilt type.
Models Specifications
FNS55 / 4EC6.2 F
Notes:
FNS55-Air Cooled Condenser Code
4EC6.2-Compressor Model
F-Models Type: F(Split Type); ---(Integral Type)
Model Details:
1. Refrigerant: R22 Middle and High (M/H)Temperature:-5°C~ 5°C Models:FNS35/2EC3.2---FNS130/4PCS15.2
2. Refrigerant: R22 Middle and Low (M/L)Temperature:-20°C~ -18°C Models: FNS25/2CC3.2---FNS130/4G20.2
Main Parts Instructions
Main Parts: 1)Semi-hermetic Bitzer Compressor 2)Crankcase heater 3)Air Cooled Condenser 4)Liquid storage device 5)Filter 6)Liquid Sight Gauge 7)Hand Valve 8)Gas-liquid Separator 9)High&Low Voltage Controller 10)High&Low Pressure Gauge 11)Electronic Oil Pressure Diff. 12)Electrical Box 13)Fan(for split type low temperature units)

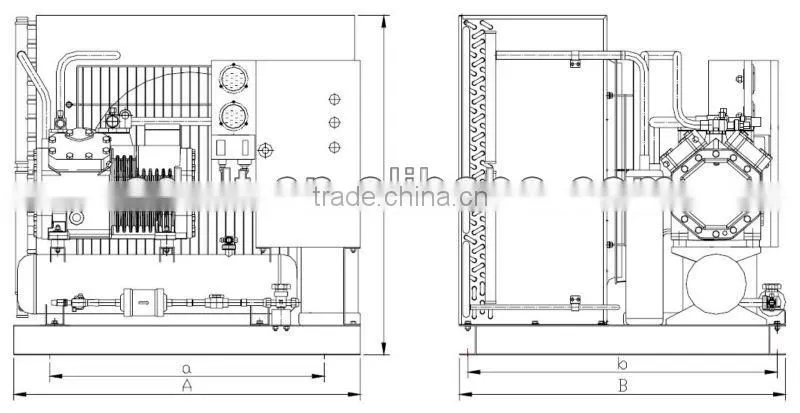

Integral Type: (FNS Condenser+Bitzer Compressor)

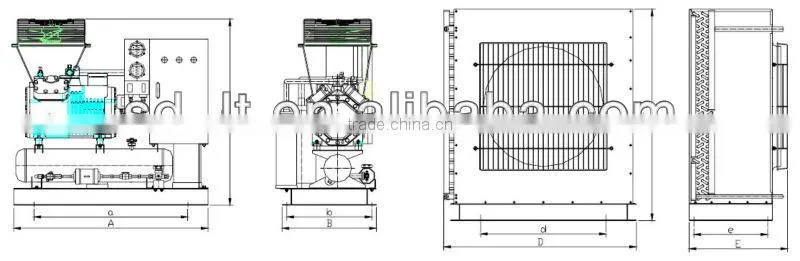

Split Type(Compressor Parts+Condenser Parts)

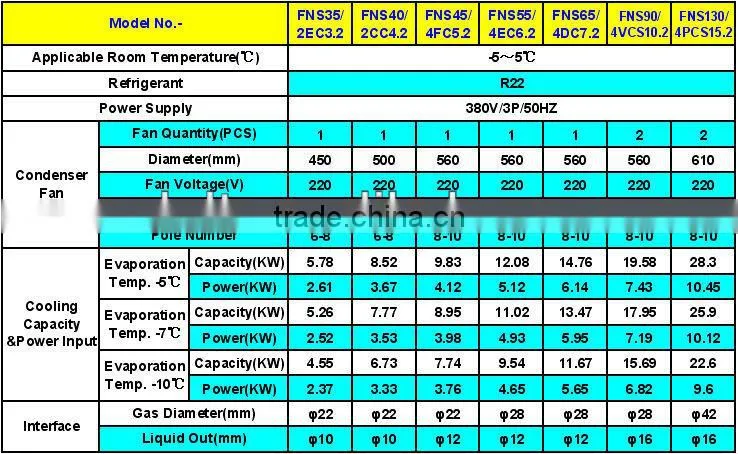

1. Refrigerant: R22; Temperature:-5°C~ 5°C; Models:FNS35/2EC3.2---FNS130/4PCS15.2(3-15HP)
Design Working Condition:Evaporation Temperature -7°C;Environmental Temperature 35°C;Suction superheat 10°C.

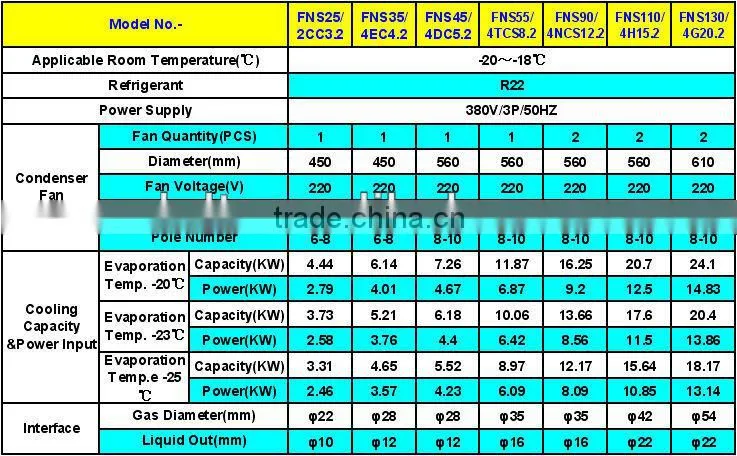

2. Refrigerant: R22; Temperature:-20°C~ -18°C; Models:FNS25/2CC3.2---FNS130/4G20.2(3-20HP)
Design Working Condition:Evaporation Temperature -23°C;Environmental Temperature 35°C;
Suction superheat 10°C; (If capacity ≥8HP units, when temp. below -25°C, CIC system is needed)
Low Noise Condenser:
