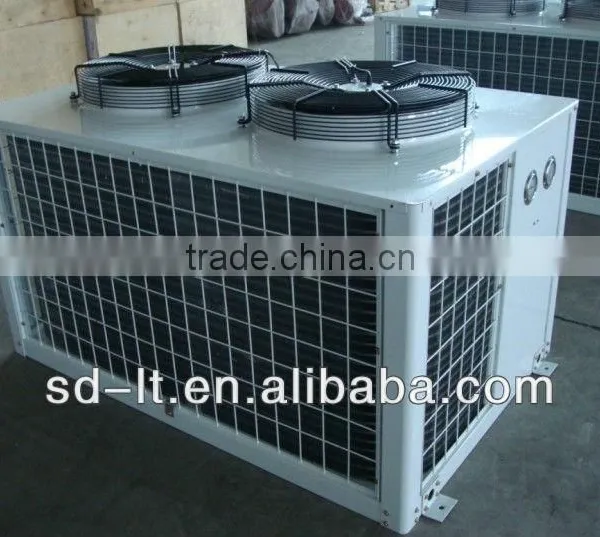

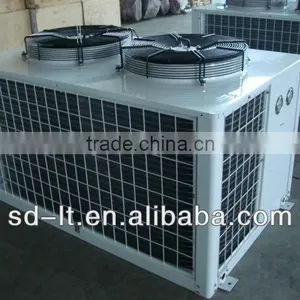

Refrigerant Condensing Unit for Cold Rooms (JZQ Copeland ZB Compressor Series)

Specifications

Condensing Unit for Cold Room
Copeland ZB Compressor
Box Type Design
High Efficiency
Good Performance

Refrigerant Condensing Unit for Cold Rooms (JZQ Copeland ZB Compressor Series)



This series products feature box type structure with hermetic compressor;

1. Product description

Feature box type structure with hermetic compressor; Applicable room temperature ranges are: -5°C~ 10°C,-10°C~-18°C and -40°C~-25°C. They used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.



2. Main components

World famous brand refrigeration parts are employed for all products:

World famous compressor, Copeland ZB or ZF series compressor;

Copper tube & aluminum fin type heat exchanger;

Built-in terminal box;

Shut-off valve for inlet and outlet pipes;



3. Model code

JZQ   03   M   A   G   Y

JZ: LVTE Company;

Q: Hermetic compressor

03: Compressor Power Input HP;

M: Temperature, H: 5°C~8°C;M: -5°C~ 5°C; L: -20°C~ -15°C; J:-40°C~ -25°C

A: Fan direction; A side direction; B top direction;

G: Copeland Compressor

Y: Refrigerant Type; Y—R404a; Others—R22



Copeland ZB High, Middle and Low Temperatrue Compressor:

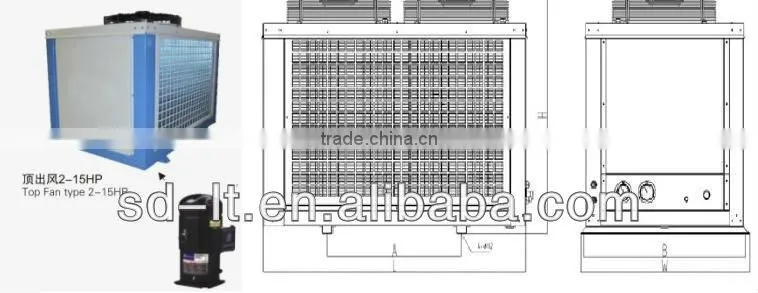

Air Top Blowing Units Series(ZB Compressor)

3. Refrigerant: R22

3.1 Temperature:-5°C~ 5°C Models: JZQ02MBG---JZQ15MBG(2HP-15HP)

4. Refrigerant: R404A

4.1 Temperature:-5°C~ 5°C Models: JZQ02MBGY---JZQ15MBGY(2HP-15HP)

4.2 Temperature:-18°C~ -15°C Models: JZQ03LBGY---JZQ15LBGY(3HP-15HP)



3. Refrigerant: R22

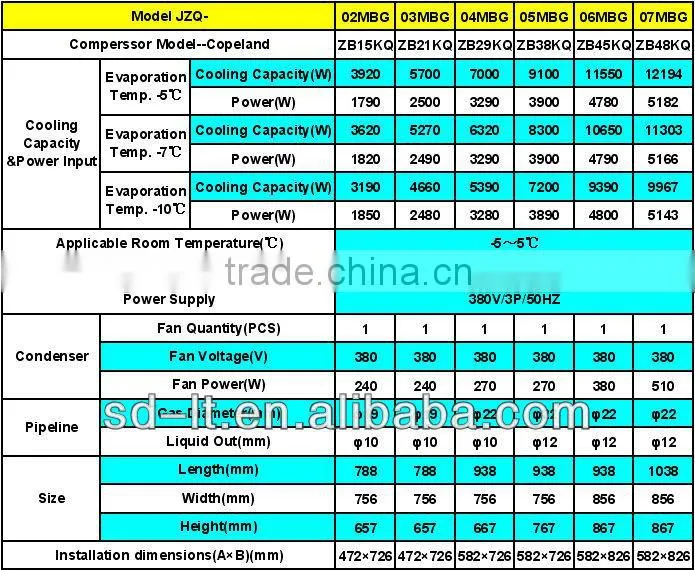

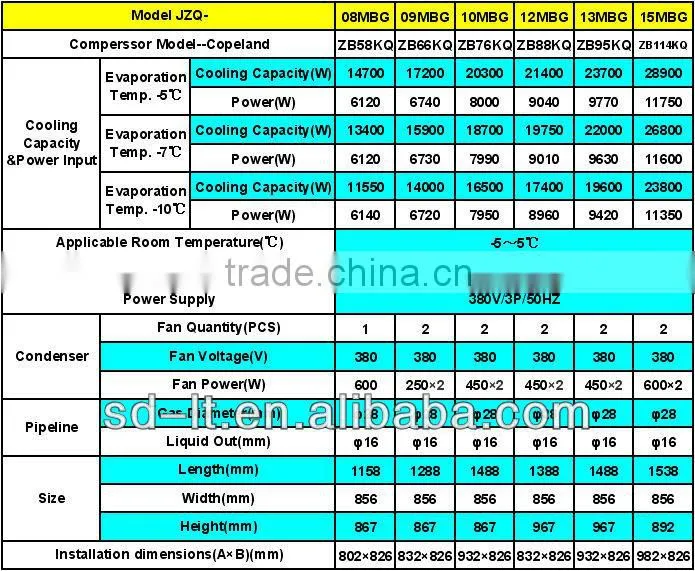

3.1 Temperature:-5°C~ 5°C Models: JZQ02MBG---JZQ15MBG(2HP-15HP)

Design Working Condition:

Evaporation Temperature -7°C, Ambient Temperature 35°C,Suction superheat 10°C





Air Top Blowing Units Series(ZB Compressor)

4. Refrigerant: R404A

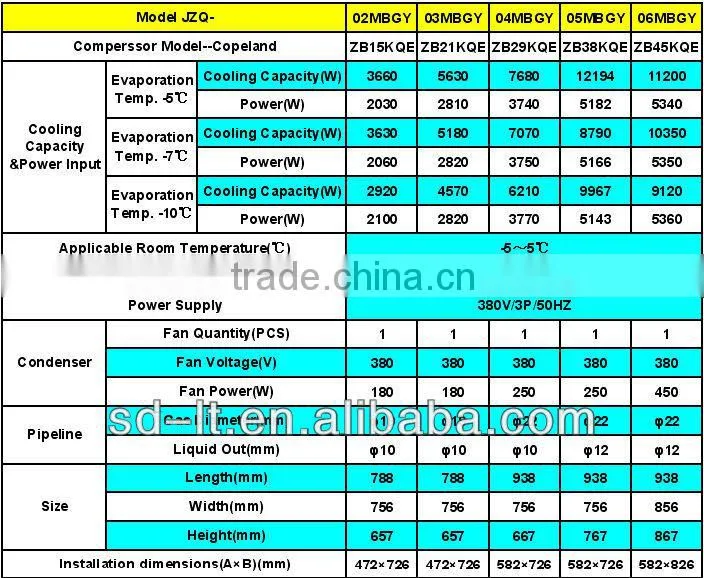

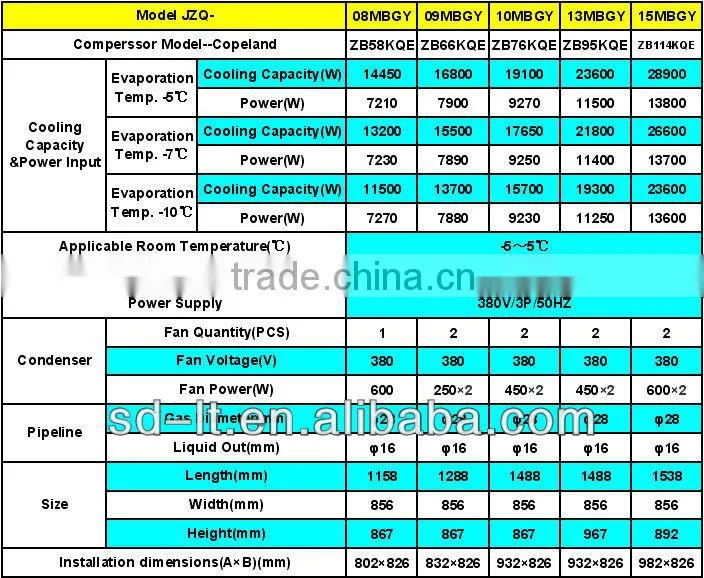

4.1 Temperature:-5°C~ 5°C Models: JZQ02MBGY---JZQ15MBGY(2HP-15HP)

Design Working Condition:

Evaporation Temperature -7°C, Ambient Temperature 35°C,Suction superheat 10°C





Air Top Blowing Units Series(ZB Compressor)

4. Refrigerant: R404A

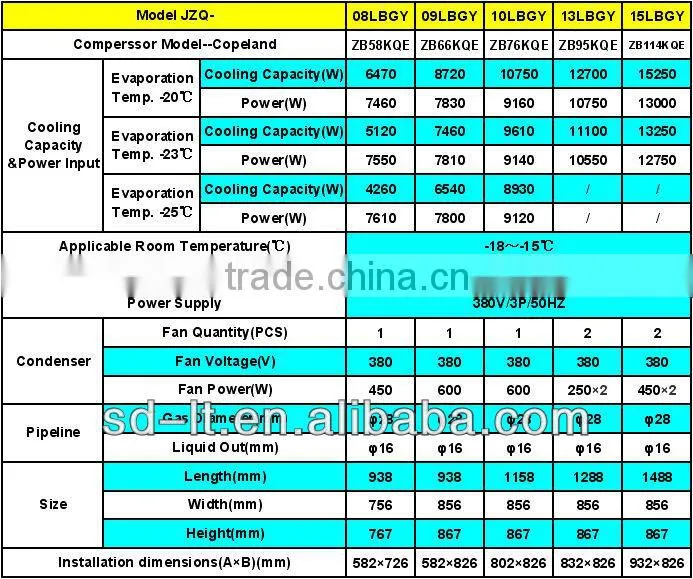

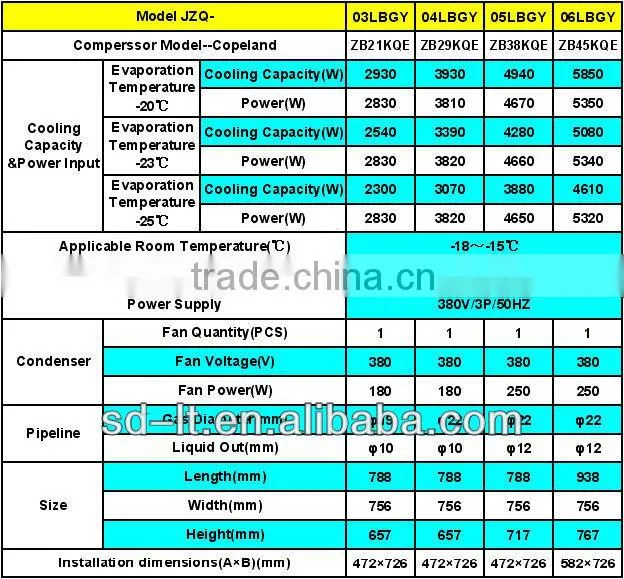

4.2 Temperature:-18°C~ -15°C Models: JZQ03LBGY---JZQ15LBGY(3HP-15HP)

Design Working Condition:

Evaporation Temperature -23°C, Ambient Temperature 35°C,Suction superheat 10°C
