JZLYJ Series Mono Blocks Refrigerant Unit for Cold Storage and Freezer Room

Specifications

Mono Blocks for Cold Room, Freezer
-Integrated unit,R404a unit
-TECUMSEH Hermetic compressor
-For Cold Room,Feezer

JZLYJ Series Mono Blocks Refrigerant Unit for Cold Storage and Freezer Room



Product Description

The LYJ Series of machine, called Mono Block, or integrated unit for cold room, that integrate evaporator, condenser, compressor, electrical control units into one compact body. It features easy, labor saving in installation, can be widely used for small cooled and cold storage room of Temperature of -5°C~5°C or -15°C~-20°C,in hotels, restaurants, medicines, agricultural, chemical industries all other place where cold storage is needed.



Main Components

World famous brand refrigeration parts are employed for all products;

TECUMSEH Hermetic compressor;

Heat Exchanger with high efficient in grooved copper tube and aluminum fin

Electronic control board with functions of automatic temperature set, control, and electric heater defrosting.

Protection devices for over loading, sub-heating, lack of phase, high & low pressure etc.



Model Specifications:

JZ   LYJ   50   M   Y

JZ-LVTE Company Products Notes         LYJ-Mono-Blocks Products Series Code

50-Compressor Power:(HP)X100             M-Temperature,M:-5°C~ 5°C;L:-20°C~ -15°C

Y-Refrigerant Typr;Y:R404a

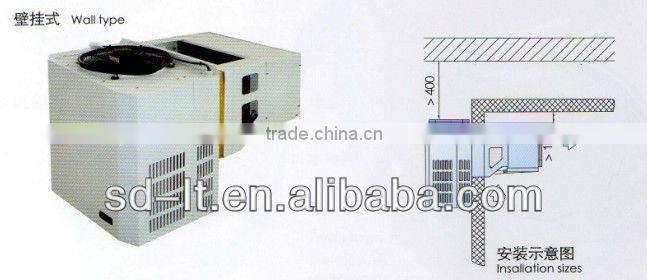

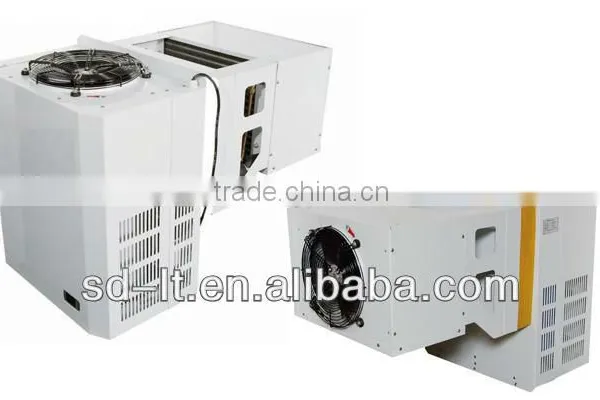

Wall Mounted Type Mono-Blocks

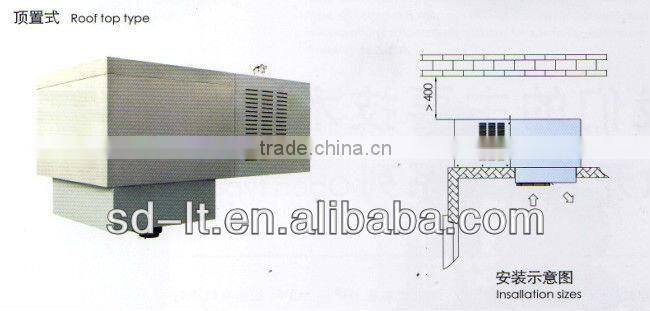

Rooftop Type Mono-Blocks

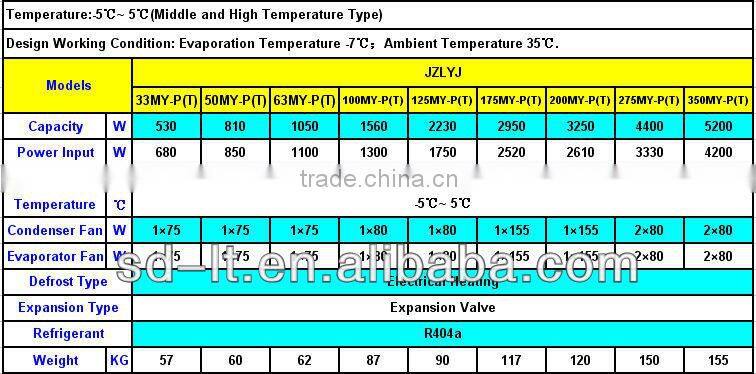

Temperature:-5°C~ 5°C(Middle and High Temperature Type)
-Design Working Condition: Evaporation Temperature -7°C;Ambient Temperature 35°C.

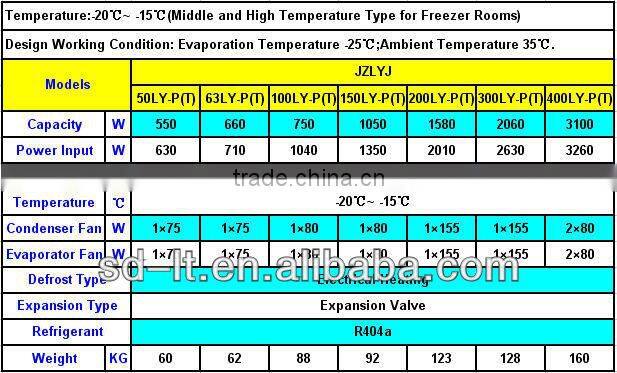

Temperature:-20°C~ -15°C(Middle and High Temperature Type for Freezer Rooms)
-Design Working Condition: Evaporation Temperature -25°C;Ambient Temperature 35°C.



Overall Sizes and Installation Sizes:
